group: SV912
heating
cooling
industry
commercial building
datacenters
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
PN16 - DN50
dimensions
215x165x198 mm
weight
10.7 kg
packaging
unpackaged (1 pce)
gtin
05022050742773
code
size
PN16 - DN65
dimensions
250x185x243 mm
weight
15.7 kg
packaging
unpackaged (1 pce)
gtin
05022050742797
code
size
PN16 - DN80
dimensions
275x200x270 mm
weight
19.8 kg
packaging
unpackaged (1 pce)
gtin
05022050742810
code
size
PN16 - DN100
dimensions
300x220x310 mm
weight
27.5 kg
packaging
unpackaged (1 pce)
gtin
05022050742858
code
size
PN16 - DN125
dimensions
340x250x335 mm
weight
44 kg
packaging
unpackaged (1 pce)
gtin
05022050742872
code
size
PN16 - DN150
dimensions
375x285x378 mm
weight
59.4 kg
packaging
unpackaged (1 pce)
gtin
05022050742834
code
size
PN16 - DN200
dimensions
445x340x515 mm
weight
118.8 kg
packaging
unpackaged (1 pce)
gtin
05022050742896
code
size
PN16 - DN250
dimensions
525x405x583 mm
weight
198 kg
packaging
unpackaged (1 pce)
gtin
05022050742919
code
size
PN16 - DN300
dimensions
590x460x640 mm
weight
363 kg
packaging
unpackaged (1 pce)
gtin
05022050742933
code
size
PN16 - DN350
dimensions
700x520x755 mm
weight
412.5 kg
packaging
unpackaged (1 pce)
gtin
05022050742957
code
size
PN16 - DN400
dimensions
775x580x865 mm
weight
660 kg
packaging
unpackaged (1 pce)
gtin
05022050742995
code
size
PN16 - DN450
dimensions
840x640x930 mm
weight
825 kg
packaging
unpackaged (1 pce)
gtin
05022050743015
code
size
PN16 - DN500
dimensions
920x715x1018 mm
weight
880 kg
packaging
unpackaged (1 pce)
gtin
05022050743039
code
size
PN16 - DN600
dimensions
1060x840x1420 mm
weight
1364 kg
packaging
unpackaged (1 pce)
gtin
05022050743053
code
size
PN25 - DN50
dimensions
215x165x198 mm
weight
10.7 kg
packaging
unpackaged (1 pce)
gtin
05022050743077
code
size
PN25 - DN65
dimensions
250x185x243 mm
weight
15.7 kg
packaging
unpackaged (1 pce)
gtin
05022050743091
code
size
PN25 - DN80
dimensions
275x200x270 mm
weight
19.8 kg
packaging
unpackaged (1 pce)
gtin
05022050743114
code
size
PN25 - DN100
dimensions
300x220x310 mm
weight
27.5 kg
packaging
unpackaged (1 pce)
gtin
05022050743138
code
size
PN25 - DN125
dimensions
340x250x335 mm
weight
44 kg
packaging
unpackaged (1 pce)
gtin
05022050743152
code
size
PN25 - DN150
dimensions
375x285x378 mm
weight
59.4 kg
packaging
unpackaged (1 pce)
gtin
05022050743176
code
size
PN25 - DN200
dimensions
445x340x515 mm
weight
118.8 kg
packaging
unpackaged (1 pce)
gtin
05022050743190
code
size
PN25 - DN250
dimensions
525x405x583 mm
weight
198 kg
packaging
unpackaged (1 pce)
gtin
05022050743213
code
size
PN25 - DN300
dimensions
590x460x640 mm
weight
363 kg
packaging
unpackaged (1 pce)
gtin
05022050743237
code
size
PN25 - DN350
dimensions
700x520x755 mm
weight
412.5 kg
packaging
unpackaged (1 pce)
gtin
05022050743251
code
size
PN25 - DN400
dimensions
775x580x865 mm
weight
660 kg
packaging
unpackaged (1 pce)
gtin
05022050743275
code
size
PN25 - DN450
dimensions
840x640x930 mm
weight
825 kg
packaging
unpackaged (1 pce)
gtin
05022050743299
code
size
PN25 - DN500
dimensions
920x715x1018 mm
weight
880 kg
packaging
unpackaged (1 pce)
gtin
05022050743312
code
size
PN25 - DN600
dimensions
1060x840x1420 mm
weight
1364 kg
packaging
unpackaged (1 pce)
gtin
05022050743336

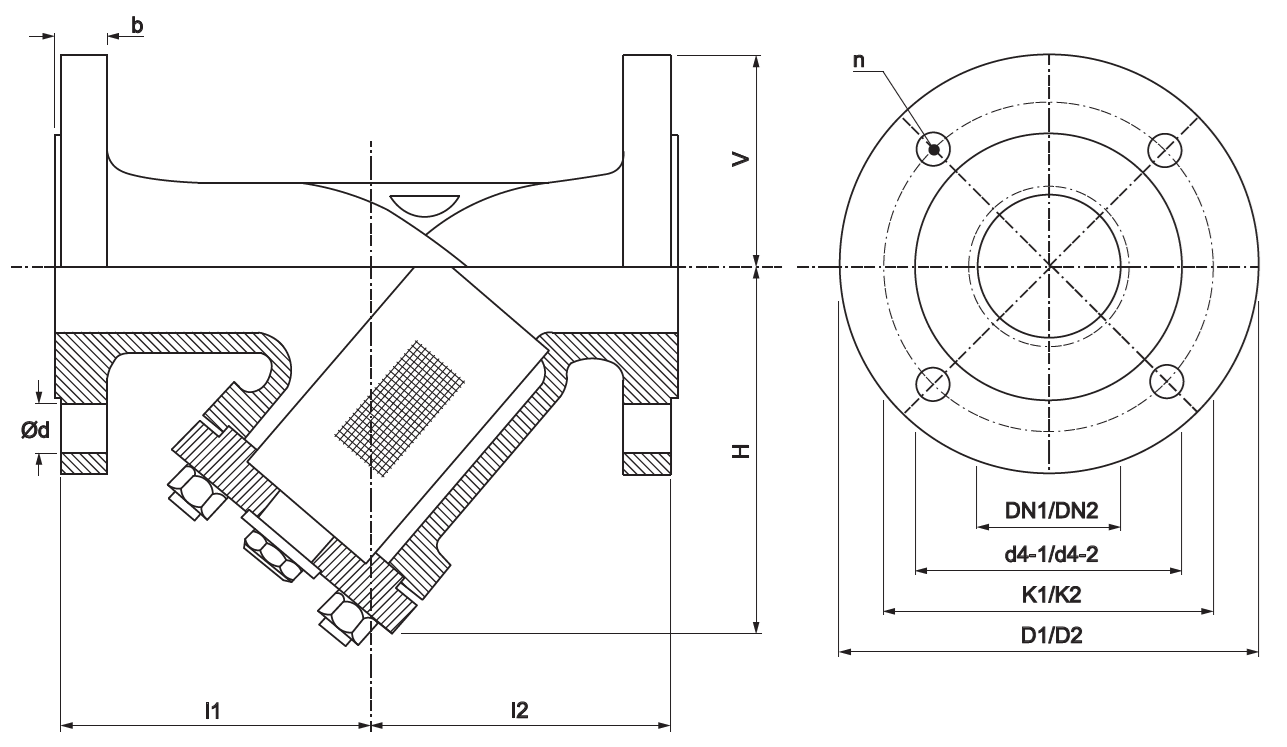

code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
n2
k2
b2
d2-2
D2
H
V
D1
a
code
size
PN16 - DN50
d1
60.3
DN1
DN50
l1
108
z1
108
d2
60.3
DN2
DN50
l2
108
z2
108
n2
4
k2
125
b2
20
d2-2
18
D2
165
H
115
V
83
D1
165
a
45
code
size
PN16 - DN65
d1
76.1
DN1
DN65
l1
125
z1
125
d2
76.1
DN2
DN65
l2
125
z2
125
n2
4
k2
145
b2
20
d2-2
18
D2
185
H
150
V
93
D1
185
a
45
code
size
PN16 - DN80
d1
88.9
DN1
DN80
l1
138
z1
138
d2
88.9
DN2
DN80
l2
138
z2
138
n2
8
k2
160
b2
20
d2-2
18
D2
200
H
170
V
100
D1
200
a
45
code
size
PN16 - DN100
d1
114.3
DN1
DN100
l1
150
z1
150
d2
114.3
DN2
DN100
l2
150
z2
150
n2
8
k2
180
b2
20
d2-2
18
D2
220
H
200
V
110
D1
220
a
45
code
size
PN16 - DN125
d1
139.7
DN1
DN125
l1
170
z1
170
d2
139.7
DN2
DN125
l2
170
z2
170
n2
8
k2
210
b2
20
d2-2
18
D2
250
H
210
V
125
D1
250
a
45
code
size
PN16 - DN150
d1
168.3
DN1
DN150
l1
188
z1
188
d2
168.3
DN2
DN150
l2
188
z2
188
n2
8
k2
240
b2
20
d2-2
22
D2
285
H
235
V
143
D1
285
a
45
code
size
PN16 - DN200
d1
219.1
DN1
DN200
l1
223
z1
223
d2
219.1
DN2
DN200
l2
223
z2
223
n2
12
k2
295
b2
20
d2-2
22
D2
340
H
345
V
170
D1
340
a
45
code
size
PN16 - DN250
d1
273.0
DN1
DN250
l1
263
z1
263
d2
273.0
DN2
DN250
l2
263
z2
263
n2
12
k2
355
b2
20
d2-2
26
D2
405
H
380
V
203
D1
405
a
45
code
size
PN16 - DN300
d1
323.9
DN1
DN300
l1
295
z1
295
d2
323.9
DN2
DN300
l2
295
z2
295
n2
12
k2
410
b2
20
d2-2
26
D2
460
H
410
V
230
D1
460
a
45
code
size
PN16 - DN350
d1
355.6
DN1
DN350
l1
350
z1
350
d2
355.6
DN2
DN350
l2
350
z2
350
n2
16
k2
470
b2
20
d2-2
26
D2
520
H
495
V
260
D1
520
a
45
code
size
PN16 - DN400
d1
406.4
DN1
DN400
l1
388
z1
388
d2
406.4
DN2
DN400
l2
388
z2
388
n2
16
k2
525
b2
20
d2-2
30
D2
580
H
575
V
290
D1
580
a
45
code
size
PN16 - DN450
d1
457.2
DN1
DN450
l1
420
z1
420
d2
457.2
DN2
DN450
l2
420
z2
420
n2
20
k2
585
b2
20
d2-2
30
D2
640
H
610
V
320
D1
640
a
45
code
size
PN16 - DN500
d1
508.0
DN1
DN500
l1
460
z1
460
d2
508.0
DN2
DN500
l2
460
z2
460
n2
20
k2
650
b2
20
d2-2
33
D2
715
H
660
V
358
D1
715
a
45
code
size
PN16 - DN600
d1
609.6
DN1
DN600
l1
530
z1
530
d2
609.6
DN2
DN600
l2
530
z2
530
n2
20
k2
770
b2
20
d2-2
36
D2
840
H
1000
V
420
D1
840
a
45
code
size
PN25 - DN50
d1
60.3
DN1
DN50
l1
108
z1
108
d2
60.3
DN2
DN50
l2
108
z2
108
n2
4
k2
125
b2
20
d2-2
18
D2
165
H
115
V
83
D1
165
a
45
code
size
PN25 - DN65
d1
76.1
DN1
DN65
l1
125
z1
125
d2
76.1
DN2
DN65
l2
125
z2
125
n2
8
k2
145
b2
20
d2-2
18
D2
185
H
150
V
93
D1
185
a
45
code
size
PN25 - DN80
d1
88.9
DN1
DN80
l1
138
z1
138
d2
88.9
DN2
DN80
l2
138
z2
138
n2
8
k2
160
b2
20
d2-2
18
D2
200
H
170
V
100
D1
200
a
45
code
size
PN25 - DN100
d1
114.3
DN1
DN100
l1
150
z1
150
d2
114.3
DN2
DN100
l2
150
z2
150
n2
8
k2
190
b2
20
d2-2
18
D2
235
H
200
V
110
D1
220
a
45
code
size
PN25 - DN125
d1
139.7
DN1
DN125
l1
170
z1
170
d2
139.7
DN2
DN125
l2
170
z2
170
n2
8
k2
220
b2
20
d2-2
22
D2
270
H
210
V
125
D1
250
a
45
code
size
PN25 - DN150
d1
168.3
DN1
DN150
l1
188
z1
188
d2
168.3
DN2
DN150
l2
188
z2
188
n2
8
k2
250
b2
20
d2-2
26
D2
300
H
235
V
143
D1
285
a
45
code
size
PN25 - DN200
d1
219.1
DN1
DN200
l1
223
z1
223
d2
219.1
DN2
DN200
l2
223
z2
223
n2
12
k2
310
b2
20
d2-2
26
D2
360
H
345
V
170
D1
340
a
45
code
size
PN25 - DN250
d1
273.0
DN1
DN250
l1
263
z1
263
d2
273.0
DN2
DN250
l2
263
z2
263
n2
12
k2
370
b2
20
d2-2
30
D2
425
H
380
V
203
D1
405
a
45
code
size
PN25 - DN300
d1
323.9
DN1
DN300
l1
295
z1
295
d2
323.9
DN2
DN300
l2
295
z2
295
n2
16
k2
430
b2
20
d2-2
30
D2
485
H
410
V
230
D1
460
a
45
code
size
PN25 - DN350
d1
355.6
DN1
DN350
l1
350
z1
350
d2
355.6
DN2
DN350
l2
350
z2
350
n2
16
k2
490
b2
20
d2-2
33
D2
555
H
495
V
260
D1
520
a
45
code
size
PN25 - DN400
d1
406.4
DN1
DN400
l1
388
z1
388
d2
406.4
DN2
DN400
l2
388
z2
388
n2
16
k2
550
b2
20
d2-2
36
D2
620
H
575
V
290
D1
580
a
45
code
size
PN25 - DN450
d1
457.2
DN1
DN450
l1
420
z1
420
d2
457.2
DN2
DN450
l2
420
z2
420
n2
20
k2
600
b2
20
d2-2
36
D2
670
H
610
V
320
D1
640
a
45
code
size
PN25 - DN500
d1
508.0
DN1
DN500
l1
460
z1
460
d2
508.0
DN2
DN500
l2
460
z2
460
n2
20
k2
660
b2
20
d2-2
36
D2
730
H
660
V
358
D1
715
a
45
code
size
PN25 - DN600
d1
609.6
DN1
DN600
l1
530
z1
530
d2
609.6
DN2
DN600
l2
530
z2
530
n2
20
k2
770
b2
20
d2-2
39
D2
845
H
1000
V
420
D1
840
a
45
item
Pegler y-pattern strainer Stainless Steel (2 x flange)
item number with gtin
SV912
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
1364 kg
dimensions
1060x840x1420 mm
color
stainless steel
materials
stainless steel (ASTM A351 CF8M)
finishing
none
shape
straight, 45º
connection type
flange
sealing
PTFE
min. medium temperature
-10 °C
max medium temperature
100 °C
peak medium temperature
100 °C
Mesh size
1.5 mm
product group
afsluiters (strainers)
ETIM class
EC010151 Pipeline strainerbrand
Pegler
series
Strainer
product type
SV912
UNSPS
40142500
label
value
label
etim-class
label
Shape
value
Straight
label
Housing material
value
Stainless steel
label
Surface protection
value
Untreated
label
Material sealing
value
Polytetrafluoroethylene (PTFE)
label
Material filter element
value
Stainless steel
label
Outer pipe diameter all connections (imperial)
value
2.99"
label
Connection
value
Flange
label
Cover attachment
value
Screwed
label
With coupling
value
No
label
Filter grade
value
1500µm
label
Exchangeable filter
value
Yes
label
With permanent magnet
value
No
label
Flange standard
value
DIN
label
Max. operating pressure (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-10°C - 100°C
label
Medium temperature (continuous) (imperial)
value
14°F - 248°F
label
With drain possibility (connection)
value
No
label
Length of connection 1 (imperial)
value
8.74"
label
Working length connection 1 (imperial)
value
2.68"
label
Length of connection 2 (imperial)
value
2.68"
label
Working length connection 2 (imperial)
value
8.74"
label
Diffusor
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A-C) embodied carbon
data source
we are here to help
You can compare up to 2 products
You can compare up to 4 products
streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.
