Pressure reducing valve

group: PT5

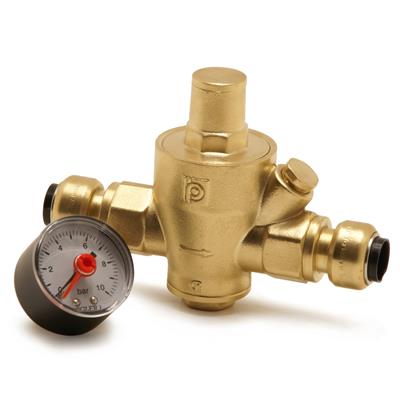

The Pegler type PT5 is a Pressure reducing valve made from DZR Brass witch comes with a compatible pressure gauge, complete with VSH Tectite connections. It is available in 15mm.
  • VSH Tectite Connections for easy installation.
  • Complete with pressure gauge
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M

H

U

a

item number

5A2050

size

15 (DN15)

d1

15.0

DN1

DN15

l1

67

z1

43

slw1

26

d2

15.0

DN2

DN15

l2

67

z2

43

slw2

24

M

21

H

54

U

46

a

90

item number

size

U

a

15 (DN15)

46

90

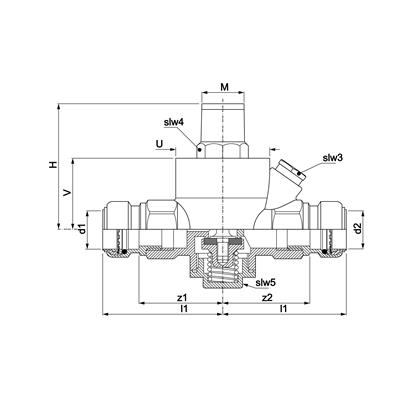

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

push

pressure rating (PN)

PN 6

sealing

NBR (Nitrile)

general

product group

valves (pressure reducing valves)

ETIM class

EC010122 Pressure reducing valve

HS code

84818099

brand

VSH

series

Tectite Pressure Reducing Valve

product type

PT5

UNSPS

40141652

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

Dezincification resistant brass (DZR)

label

Surface protection

value

Untreated

label

Nominal diameter connection 1

value

DN 15

label

Outer pipe diameter connection 1

value

15mm

label

Outer pipe diameter connection 1 (imperial)

value

0.59"

label

With coupling connection 1

value

Yes

label

Length of connection 1

value

67mm

label

Length of connection 1 (imperial)

value

2.64"

label

Working length connection 1

value

43mm

label

Working length connection 1 (imperial)

value

1.69"

label

Nominal diameter connection 2

value

DN 15

label

Outer pipe diameter connection 2

value

15mm

label

Outer pipe diameter connection 2 (imperial)

value

0.59"

label

With coupling connection 2

value

Yes

label

Length of connection 2

value

67mm

label

Length of connection 2 (imperial)

value

2.64"

label

Working length connection 2

value

43mm

label

Working length connection 2 (imperial)

value

1.69"

label

Article compression class

value

PN 6

label

Flange compression class

value

PN 6

label

Max. inlet pressure

value

6bar

label

Max. inlet pressure (imperial)

value

87.02psi

label

Medium temperature (continuous)

value

-10°C - 95°C

label

Medium temperature (continuous) (imperial)

value

14°F - 203°F

label

With pressure gauge

value

Yes

label

With siphon

value

No

label

Suitable for liquids

value

No

label

Suitable for steam

value

No

label

Suitable for gases

value

No

label

Height

value

93mm

label

Spindle angle

value

90°

label

Type approval according to BBR/EKS

value

No
