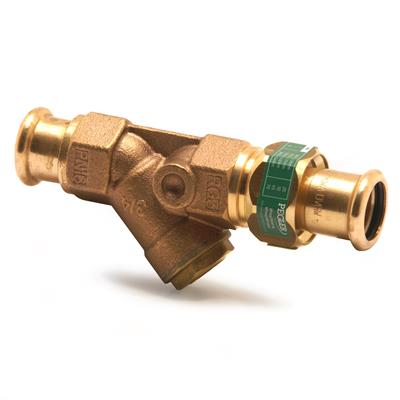

VSH XPress Union Y Pattern Strainer

group: PSU913

The VSH Xpress type PSU913 is a Bronze Y-Strainer which is designed protect pipework and equipment from contamination caused by debris in the fluid by filtering it through a strainer for long trouble-free service. It is complete with VSH Xpress Union connections and is available in sizes 15-54mm.
  • Operating Pressure PN16
  • Operating Temperature -10°C to 110°C
  • WRAS approval on all sizes
  • stainless steel cartridge
  • mesh width 0.92mm
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    NSF

    NSF

    WRAS

    WRAS

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    15437

    size

    15 (DN15)

    dimensions

    56x33x119 mm

    weight

    0.36 kg

    packaging

    bag (1 pce)

    gtin

    05022050186850

    item number

    15439

    size

    22 (DN20)

    dimensions

    65x40x126 mm

    weight

    0.52 kg

    packaging

    bag (1 pce)

    gtin

    05022050187659

    item number

    15440

    size

    28 (DN25)

    dimensions

    75x50x152 mm

    weight

    0.85 kg

    packaging

    bag (1 pce)

    gtin

    05022050187772

    item number

    15441

    size

    35 (DN32)

    dimensions

    88x60x174 mm

    weight

    1.18 kg

    packaging

    box (1 pce)

    gtin

    05022050187857

    item number

    15442

    size

    42 (DN40)

    dimensions

    105x62x204 mm

    weight

    1.57 kg

    packaging

    box (1 pce)

    gtin

    05022050188007

    item number

    15443

    size

    54 (DN50)

    dimensions

    130x80x207 mm

    weight

    2.48 kg

    packaging

    box (1 pce)

    gtin

    05022050188120

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    V

    a

    angle

    item number

    15437

    size

    15 (DN15)

    d1

    15.0

    DN1

    DN15

    l1

    86

    z1

    63

    slw1

    29

    d2

    15.0

    DN2

    DN15

    l2

    46

    z2

    28

    slw2

    29

    V

    54

    a

    45

    angle

    45

    item number

    15439

    size

    22 (DN20)

    d1

    22.0

    DN1

    DN20

    l1

    98

    z1

    74

    slw1

    38

    d2

    22.0

    DN2

    DN20

    l2

    48

    z2

    29

    slw2

    38

    V

    61

    a

    45

    angle

    45

    item number

    15440

    size

    28 (DN25)

    d1

    28.0

    DN1

    DN25

    l1

    107

    z1

    81

    slw1

    45

    d2

    28.0

    DN2

    DN25

    l2

    54

    z2

    33

    slw2

    45

    V

    75

    a

    45

    angle

    45

    item number

    15441

    size

    35 (DN32)

    d1

    35.0

    DN1

    DN32

    l1

    131

    z1

    102

    slw1

    54

    d2

    35.0

    DN2

    DN32

    l2

    66

    z2

    43

    slw2

    54

    V

    86

    a

    45

    angle

    45

    item number

    15442

    size

    42 (DN40)

    d1

    42.0

    DN1

    DN40

    l1

    142

    z1

    106

    slw1

    63

    d2

    42.0

    DN2

    DN40

    l2

    73

    z2

    46

    slw2

    63

    V

    100

    a

    45

    angle

    45

    item number

    15443

    size

    54 (DN50)

    d1

    54.0

    DN1

    DN50

    l1

    162

    z1

    124

    slw1

    78

    d2

    54.0

    DN2

    DN50

    l2

    84

    z2

    52

    slw2

    78

    V

    96

    a

    45

    angle

    45

    technical drawing for product

    characteristics

    color

    bronze

    materials

    bronze (EN CC499K)

    finishing

    none

    shape

    straight (45º)

    connection type

    press (M)

    pressure rating (PN)

    PN 16

    sealing

    PTFE

    general

    product group

    valves (strainers)

    ETIM class

    EC010151 Pipeline strainer

    brand

    VSH

    series

    XPress Strainer

    product type

    PSU913

    UNSPS

    40142505

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    110 °C

    peak medium temperature

    110 °C

    Kvs-value

    value depends on the item view items

    image for PSU913

    image | jpg

    PSU913

    image for Diagram

    diagram | png

    Diagram

    installation- & maintenance document | pdf

    VSH XPress installation instructions

    certifications | pdf

    NSF_REG4_(Xpress_BSP_to_Pressfit)_393371

    certifications | pdf

    XPress_adapted_valves_WRAS

    label

    value

    label

    ETIM class

    label

    Shape

    value

    Pipeline strainer

    label

    Housing material

    value

    Bronze

    label

    Material quality

    value

    Bronze (Rg 5)

    label

    Surface protection

    value

    Untreated

    label

    Connection

    value

    Press sleeve

    label

    Contour code

    value

    M

    label

    With coupling

    value

    Yes

    label

    Article compression class

    value

    PN 16

    label

    Flange compression class

    value

    PN 16

    label

    Max. operating pressure

    value

    16bar

    label

    Max. operating pressure (imperial)

    value

    232.06psi

    label

    Medium temperature (continuous)

    value

    -10°C - 110°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 230°F

    label

    With drain possibility (connection)

    value

    No

    label

    KIWA certified

    value

    No

    label

    Gastec QA mark

    value

    No

    label

    Gastec QA - AR 214 (H2)

    value

    No
