VSH XPress Union Venturi Static Commissioning valve

group: PSU900SOutlet

The VSH Xpress PSU900SOutlet is a Venturi Static balancing valve with a Xpress press-fit inlet and a Xpress union outlet connection. It is intended for the isolation and balancing with its quarter turn ball valve shut off function and venturi orifice. The venturi orifice allows for fast and accurate flow measurements while the robust grip handle provides easy control. The numeric position indicator assures optimal adjustment to the design flow. Type PSU900SOutlet valves are part of the VSH Xpress system and are available in 15-54mm sizes and ultra-low too fast flow.
  • Venturi orifice
  • Includes test points
  • Easy turn grip handle with numeric position indicator
  • VSH Xpress, Fast and reliable connection technology
  • Compact design
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    WRAS

    WRAS

    item number

    size

    d1

    DN1

    l1

    z1

    d2

    DN2

    l2

    z2

    M1

    M2

    Y

    V

    U

    D1

    a

    item number

    15950

    size

    15 (DN15) LF

    d1

    15.0

    DN1

    DN15

    l1

    76

    z1

    51

    d2

    15.0

    DN2

    DN15

    l2

    87

    z2

    65

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    24

    a

    90

    item number

    16387

    size

    15 (DN15) ULF

    d1

    15.0

    DN1

    DN15

    l1

    76

    z1

    51

    d2

    15.0

    DN2

    DN15

    l2

    87

    z2

    65

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    24

    a

    90

    item number

    15951

    size

    15 (DN15) SF

    d1

    15.0

    DN1

    DN15

    l1

    76

    z1

    51

    d2

    15.0

    DN2

    DN15

    l2

    87

    z2

    65

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    24

    a

    90

    item number

    16388

    size

    18 (DN15) ULF

    d1

    18.0

    DN1

    DN15

    l1

    76

    z1

    51

    d2

    18.0

    DN2

    DN15

    l2

    87

    z2

    65

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    26

    a

    90

    item number

    15952

    size

    15 (DN15) HF

    d1

    15.0

    DN1

    DN15

    l1

    76

    z1

    51

    d2

    15.0

    DN2

    DN15

    l2

    87

    z2

    65

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    24

    a

    90

    item number

    15953

    size

    18 (DN15) LF

    d1

    18.0

    DN1

    DN15

    l1

    76

    z1

    51

    d2

    18.0

    DN2

    DN15

    l2

    87

    z2

    65

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    26

    a

    90

    item number

    15954

    size

    18 (DN15) SF

    d1

    18.0

    DN1

    DN15

    l1

    76

    z1

    51

    d2

    18.0

    DN2

    DN15

    l2

    87

    z2

    65

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    26

    a

    90

    item number

    15955

    size

    18 (DN15) HF

    d1

    18.0

    DN1

    DN15

    l1

    76

    z1

    51

    d2

    18.0

    DN2

    DN15

    l2

    87

    z2

    65

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    26

    a

    90

    item number

    15956

    size

    22 (DN20) LF

    d1

    22.0

    DN1

    DN20

    l1

    91

    z1

    55

    d2

    22.0

    DN2

    DN20

    l2

    93

    z2

    69

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    31

    a

    90

    item number

    15957

    size

    22 (DN20) SF

    d1

    22.0

    DN1

    DN20

    l1

    91

    z1

    55

    d2

    22.0

    DN2

    DN20

    l2

    93

    z2

    69

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    31

    a

    90

    item number

    15958

    size

    22 (DN20) HF

    d1

    22.0

    DN1

    DN20

    l1

    91

    z1

    55

    d2

    22.0

    DN2

    DN20

    l2

    93

    z2

    69

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    31

    a

    90

    item number

    15959

    size

    28 (DN25) SF

    d1

    28.0

    DN1

    DN25

    l1

    99

    z1

    64

    d2

    28.0

    DN2

    DN25

    l2

    102

    z2

    75

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    37

    a

    90

    item number

    15960

    size

    28 (DN25) HF

    d1

    28.0

    DN1

    DN25

    l1

    99

    z1

    64

    d2

    28.0

    DN2

    DN25

    l2

    102

    z2

    75

    M1

    18

    M2

    75

    Y

    62

    V

    18

    U

    23

    D1

    37

    a

    90

    item number

    15961

    size

    35 (DN32) HF

    d1

    35.0

    DN1

    DN32

    l1

    130

    z1

    73

    d2

    35.0

    DN2

    DN32

    l2

    115

    z2

    86

    M1

    20

    M2

    122

    Y

    84

    V

    25

    U

    23

    D1

    44

    a

    90

    item number

    15962

    size

    42 (DN40) HF

    d1

    42.0

    DN1

    DN40

    l1

    154

    z1

    76

    d2

    42.0

    DN2

    DN40

    l2

    118

    z2

    91

    M1

    20

    M2

    122

    Y

    84

    V

    25

    U

    23

    D1

    51

    a

    90

    item number

    15963

    size

    54 (DN50) HF

    d1

    54.0

    DN1

    DN50

    l1

    165

    z1

    101

    d2

    54.0

    DN2

    DN50

    l2

    143

    z2

    99

    M1

    20

    M2

    122

    Y

    84

    V

    25

    U

    23

    D1

    64

    a

    90

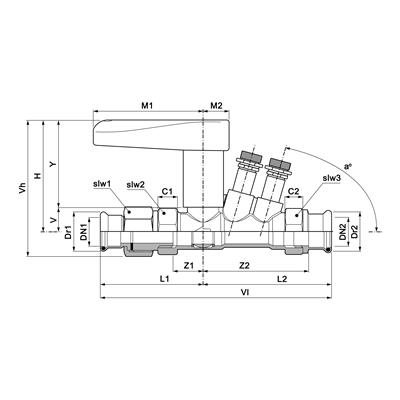

    technical drawing for product

    characteristics

    color

    bronze

    materials

    brass (CW602N (DZR))

    finishing

    none

    shape

    straight (0º)

    connection type

    press (M)

    pressure rating (PN)

    PN 16

    sealing

    PTFE

    general

    product group

    valves (static balancing valves)

    brand

    VSH

    series

    XPress ProFlow Static Venturi

    product type

    PSU900SOutlet

    UNSPS

    40141609

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    110 °C

    peak medium temperature

    110 °C

    Kvs-value

    value depends on the item view items

    Kv-value

    value depends on the item view items
