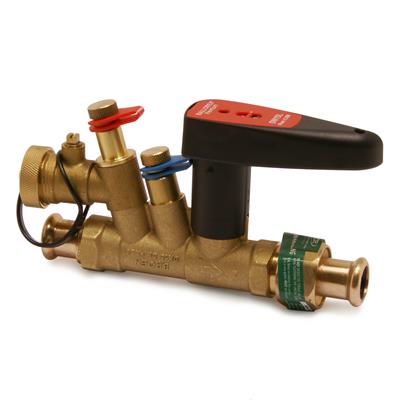

VSH XPress Union Venturi Commissioning Valve With Drain

group: PSU900PD

The VSH Xpress PSU900PD is a Venturi Static balancing valve with a built-in drain valve and Xpress press-fit connections. It is intended for the isolation and balancing with its quarter turn ball valve shut off function and venturi orifice. The venturi orifice allows for fast and accurate flow measurements while the robust grip handle provides easy control. The numeric position indicator assures optimal adjustment to the design flow. Ease of maintenance with easy draining of the system. Type PSU900PD valves are part of the VSH Xpress system and are available in 15-54mm sizes and ultra-low too fast flow.

  • Venturi orifice
  • Includes test points
  • Easy turn grip handle with numeric position indicator
  • VSH Xpress, Fast and reliable connection technology
  • Built in drain valve
  • Compact design
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

EPDM, PTFE

general

product group

valves (static balancing valves)

brand

VSH

series

XPress ProFlow Static Venturi

product type

PSU900PD

UNSPS

40141609
