VSH XPress Extended Stem Ball Valve With Union Connection

group: PSU550EL

The PSU550 is a DZR brass extended lever handle ball valve with Xpress ends for use with copper, carbon steel and stainless-steel tubing, which is a compact, easy to operate, quarter turn ball valve.
  • PN16
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • extended lever handle
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    steam

    steam

    compressed air

    compressed air

    segments

    commercial building

    commercial building

    industry

    industry

    shipbuilding

    shipbuilding

    approvals

    NSF

    NSF

    WRAS

    WRAS

    item number

    size

    d1

    DN1

    l1

    z1

    d2

    DN2

    l2

    z2

    slw2

    slw0

    M1

    M2

    H

    h2

    Y

    V

    U

    a

    item number

    245320

    size

    15 (DN15)

    d1

    15.0

    DN1

    DN15

    l1

    76

    z1

    53

    d2

    15.0

    DN2

    DN15

    l2

    53

    z2

    35

    slw2

    35

    slw0

    31

    M1

    10

    M2

    94

    H

    85

    h2

    18

    Y

    21

    V

    19

    U

    10

    a

    90

    item number

    245321

    size

    18 (DN15)

    d1

    18.0

    DN1

    DN15

    l1

    76

    z1

    53

    d2

    18.0

    DN2

    DN15

    l2

    53

    z2

    35

    slw2

    35

    slw0

    31

    M1

    10

    M2

    94

    H

    85

    h2

    18

    Y

    21

    V

    28

    U

    10

    a

    90

    item number

    245322

    size

    22 (DN20)

    d1

    22.0

    DN1

    DN20

    l1

    90

    z1

    66

    d2

    22.0

    DN2

    DN20

    l2

    58

    z2

    39

    slw2

    45

    slw0

    39

    M1

    10

    M2

    103

    H

    99

    h2

    18

    Y

    21

    V

    24

    U

    11

    a

    90

    item number

    245323

    size

    28 (DN25)

    d1

    28.0

    DN1

    DN25

    l1

    95

    z1

    69

    d2

    28.0

    DN2

    DN25

    l2

    66

    z2

    45

    slw2

    52

    slw0

    46

    M1

    10

    M2

    115

    H

    112

    h2

    19

    Y

    22

    V

    28

    U

    12

    a

    90

    item number

    245324

    size

    35 (DN32)

    d1

    35.0

    DN1

    DN32

    l1

    102

    z1

    74

    d2

    35.0

    DN2

    DN32

    l2

    76

    z2

    53

    slw2

    62

    slw0

    54

    M1

    11

    M2

    130

    H

    112

    h2

    19

    Y

    22

    V

    33

    U

    13

    a

    90

    item number

    245325

    size

    42 (DN40)

    d1

    42.0

    DN1

    DN40

    l1

    113

    z1

    80

    d2

    42.0

    DN2

    DN40

    l2

    83

    z2

    55

    slw2

    70

    slw0

    62

    M1

    11

    M2

    135

    H

    130

    h2

    20

    Y

    23

    V

    39

    U

    14

    a

    90

    item number

    245326

    size

    54 (DN50)

    d1

    54.0

    DN1

    DN50

    l1

    135

    z1

    98

    d2

    54.0

    DN2

    DN50

    l2

    99

    z2

    67

    slw2

    88

    slw0

    76

    M1

    12

    M2

    159

    H

    148

    h2

    21

    Y

    24

    V

    47

    U

    15

    a

    90

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW602N (DZR))

    finishing

    none

    shape

    straight (0º)

    connection type

    press (M)

    pressure rating (PN)

    PN 16

    sealing

    FPM, PTFE

    general

    product group

    valves (ball valves)

    ETIM class

    EC011343 Ball valve

    brand

    VSH

    series

    XPress Ball Valve

    product type

    PSU550EL

    UNSPS

    40141607

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    110 °C

    peak medium temperature

    110 °C

    Kvs-value

    value depends on the item view items

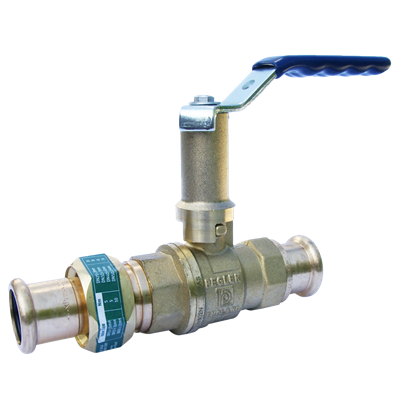

    image for PSU550EL

    image | png

    PSU550EL

    image for Diagram

    diagram | png

    Diagram

    installation- & maintenance document | pdf

    VSH XPress installation instructions

    certifications | pdf

    NSF_REG4_(Xpress_BSP_to_Pressfit)_393371

    certifications | pdf

    XPress_adapted_valves_WRAS

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn36Pb2As (CW602N)

    label

    Surface protection housing

    value

    None

    label

    Material ball seal

    value

    Polytetrafluoroethylene (PTFE)

    label

    Material ball

    value

    Brass

    label

    Material spindle

    value

    Brass

    label

    Material primary spindle seal

    value

    Fluorelastomer rubber (FPM/FKM)

    label

    Connection 1

    value

    Press sleeve

    label

    With coupling connection 1

    value

    Yes

    label

    Contour code connection 1

    value

    M

    label

    Connection 2

    value

    Press sleeve

    label

    With coupling connection 2

    value

    Yes

    label

    Contour code connection 2

    value

    M

    label

    Article compression class

    value

    PN 16

    label

    Flange compression class

    value

    PN 16

    label

    With drain valve

    value

    No

    label

    With drain possibility (connection)

    value

    No

    label

    With non-return valve

    value

    No

    label

    With filter

    value

    No

    label

    With thermometer

    value

    No

    label

    Model

    value

    Straight

    label

    With insulation shell

    value

    No

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    -10°C - 110°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 230°F

    label

    Medically clean

    value

    No

    label

    Grease-free

    value

    No

    label

    Operation

    value

    Lever handle

    label

    Housing construction

    value

    1-part

    label

    Full bore

    value

    Yes

    label

    Angle of the valve

    value

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    245320

    carbon footprint (A-C) embodied carbon

    2.24kgCO2e

    data source

    TM65

    item number

    245322

    carbon footprint (A-C) embodied carbon

    3.63kgCO2e

    data source

    TM65

    item number

    245323

    carbon footprint (A-C) embodied carbon

    4.92kgCO2e

    data source

    TM65

    item number

    245324

    carbon footprint (A-C) embodied carbon

    7.03kgCO2e

    data source

    TM65

    item number

    245325

    carbon footprint (A-C) embodied carbon

    9.33kgCO2e

    data source

    TM65

    item number

    245326

    carbon footprint (A-C) embodied carbon

    14.97kgCO2e

    data source

    TM65
