group: PSU500
potable water
heating
steam
compressed air
commercial building
industry
NSF
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15 (DN15)
dimensions
167x33x58 mm
weight
0.39 kg
packaging
bag (1 pce)
gtin
05022050255853
item number
size
22 (DN20)
dimensions
187x42x72 mm
weight
0.65 kg
packaging
bag (1 pce)
gtin
05022050255969
item number
size
28 (DN25)
dimensions
201x50x77 mm
weight
0.75 kg
packaging
bag (1 pce)
gtin
05022050256027
item number
size
35 (DN32)
dimensions
204x64x94 mm
weight
1.41 kg
packaging
bag (1 pce)
gtin
05022050246189
item number
size
42 (DN40)
dimensions
211x74x116 mm
weight
1.97 kg
packaging
box (1 pce)
gtin
05022050246530
item number
size
54 (DN50)
dimensions
228x90x133 mm
weight
3.12 kg
packaging
box (1 pce)
gtin
05022050246653

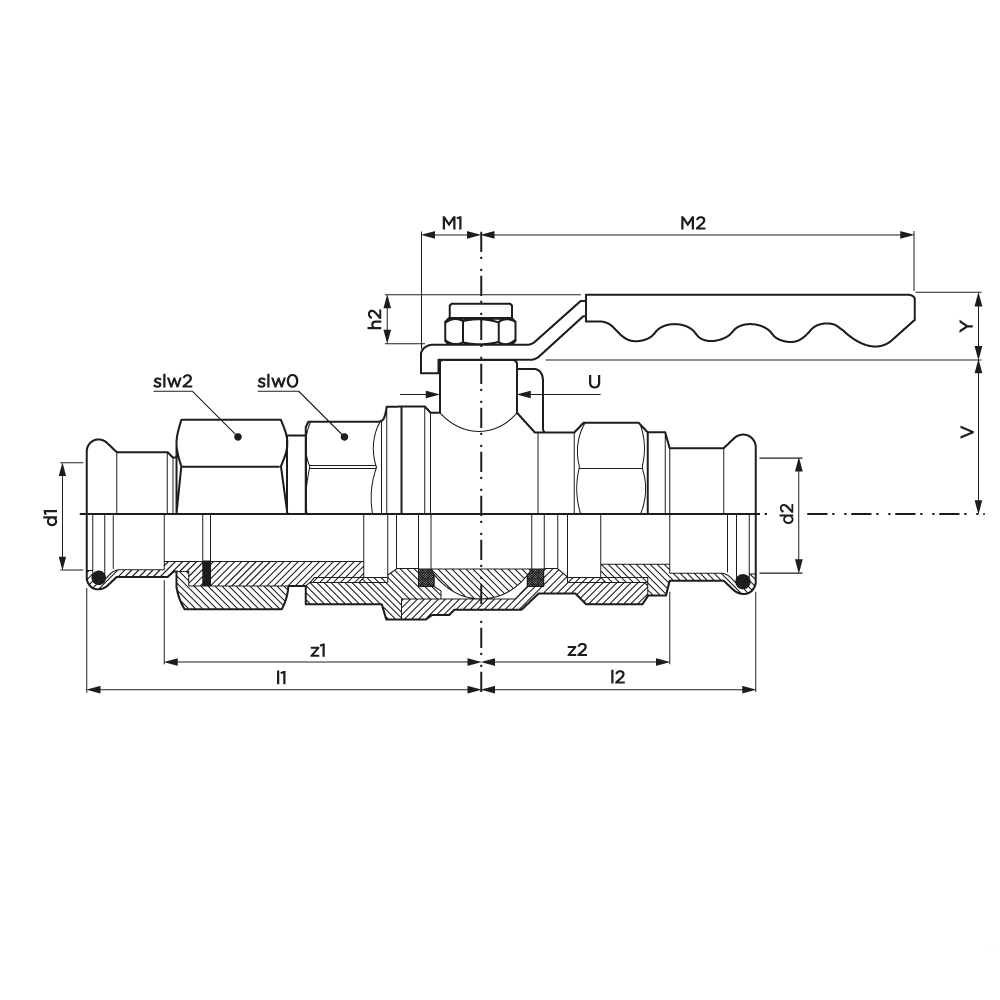

item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw2
slw0
M1
M2
H
h2
Y
V
U
a
item number
243330size
15 (DN15)
d1
15.0
DN1
DN15
l1
76
z1
53
d2
15.0
DN2
DN15
l2
53
z2
35
slw2
35
slw0
31
M1
10
M2
94
H
41
h2
18
Y
21
V
20
U
10
a
90
item number
243332size
22 (DN20)
d1
22.0
DN1
DN20
l1
90
z1
66
d2
22.0
DN2
DN20
l2
58
z2
39
slw2
40
slw0
39
M1
10
M2
103
H
52
h2
18
Y
21
V
31
U
11
a
90
item number
243333size
28 (DN25)
d1
28.0
DN1
DN25
l1
95
z1
69
d2
28.0
DN2
DN25
l2
66
z2
45
slw2
52
slw0
46
M1
10
M2
115
H
57
h2
19
Y
22
V
35
U
12
a
90
item number
243334size
35 (DN32)
d1
35.0
DN1
DN32
l1
102
z1
74
d2
35.0
DN2
DN32
l2
76
z2
53
slw2
62
slw0
54
M1
11
M2
130
H
64
h2
19
Y
22
V
42
U
13
a
90
item number
243335size
42 (DN40)
d1
42.0
DN1
DN40
l1
113
z1
80
d2
42.0
DN2
DN40
l2
83
z2
55
slw2
70
slw0
62
M1
11
M2
135
H
80
h2
20
Y
23
V
57
U
14
a
90
item number
243336size
54 (DN50)
d1
54.0
DN1
DN50
l1
135
z1
98
d2
54.0
DN2
DN50
l2
99
z2
67
slw2
88
slw0
76
M1
12
M2
159
H
86
h2
21
Y
24
V
62
U
15
a
90
color
chrome
materials
brass (CW617N)
finishing
chromed
shape
straight (0º)
connection type
press (M)
pressure rating (PN)
PN 16
sealing
FPM, PTFE
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
brand
VSH
series
XPress Ball Valve
product type
PSU500
UNSPS
40141607
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
110 °C
peak medium temperature
110 °C
Kvs-value
value depends on the item view items
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
label
Surface protection housing
value
Chromium-plated
label
Material ball seal
value
Polytetrafluoroethylene (PTFE)
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Fluorelastomer rubber (FPM/FKM)
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
Yes
label
Contour code connection 1
value
M
label
Connection 2
value
Press sleeve
label
With coupling connection 2
value
Yes
label
Contour code connection 2
value
M
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-10°C - 110°C
label
Medium temperature (continuous) (imperial)
value
14°F - 230°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Angle of the valve
value
0°
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
item number
carbon footprint (A-C) embodied carbon
data source
