VSH XPress Union Pressure Reducing Valve

group: PSU4PRV

The Pegler Type PSU4PRV is a Pressure reducing valve which is made from Nickel Plated Brass which is designed to reduce the pressure of the flow across the valve from a maximum of 25 Bar at the inlet too between 0.5-6 Bar at the outlet, this valve is complete with VSH Xpress Union connections and is available in sizes 15/54mm
  • Pressuring Reduction: >25Bar to 0.5-6 Bar (adjustable)
  • VSH Xpress Union Connections for easy installation
  • EN 1567:2000
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    WRAS

    WRAS

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    5a2060

    size

    15 (DN15)

    dimensions

    139x85x145 mm

    weight

    0.89 kg

    packaging

    box (1 pce)

    gtin

    05022050189189

    item number

    5a2063

    size

    28 (DN25)

    dimensions

    155x80x181 mm

    weight

    1.6 kg

    packaging

    box (1 pce)

    gtin

    05022050248671

    item number

    5a2062

    size

    22 (DN20)

    dimensions

    145x75x179 mm

    weight

    1.46 kg

    packaging

    box (1 pce)

    gtin

    05022050189264

    item number

    5a2064

    size

    35 (DN32)

    dimensions

    235x105x218 mm

    weight

    2.77 kg

    packaging

    box (1 pce)

    gtin

    05022050249364

    item number

    5a2065

    size

    42 (DN40)

    dimensions

    235x105x230 mm

    weight

    2.98 kg

    packaging

    box (1 pce)

    gtin

    05022050189387

    item number

    5a2066

    size

    54 (DN50)

    dimensions

    265x125x259 mm

    weight

    4.11 kg

    packaging

    box (1 pce)

    gtin

    05022050249784

    characteristics

    color

    brass

    materials

    brass (CW617N)

    finishing

    nickel-plated

    shape

    straight (0º)

    connection type

    press (M)

    pressure rating (PN)

    PN 25

    sealing

    NBR (Nitrile)

    general

    product group

    valves (pressure reducing valves)

    ETIM class

    EC010122 Pressure reducing valve

    brand

    VSH

    series

    XPress Pressure Reducing Valve

    product type

    PSU4PRV

    UNSPS

    40141652

    technical

    max operating pressure liquid

    25 bar

    min. medium temperature

    -10 °C

    max medium temperature

    80 °C

    peak medium temperature

    80 °C

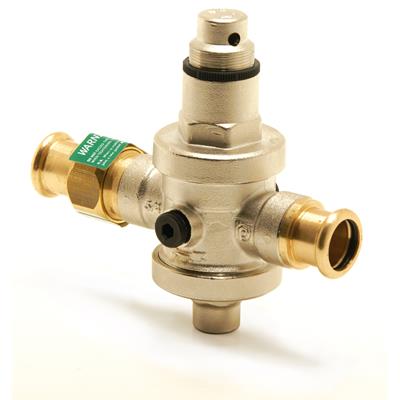

    image for PSU4PRV

    image | jpg

    PSU4PRV

    certifications | pdf

    XPress_adapted_valves_WRAS

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Surface protection

    value

    Nickel-plated

    label

    Connection 1

    value

    Press sleeve

    label

    With coupling connection 1

    value

    Yes

    label

    Connection 2

    value

    Press sleeve

    label

    With coupling connection 2

    value

    Yes

    label

    Article compression class

    value

    PN 25

    label

    Flange compression class

    value

    PN 25

    label

    Max. inlet pressure

    value

    25bar

    label

    Max. inlet pressure (imperial)

    value

    362.59psi

    label

    Medium temperature (continuous)

    value

    -10°C - 80°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 176°F

    label

    With pressure gauge

    value

    No

    label

    Suitable for liquids

    value

    No

    label

    Suitable for steam

    value

    No

    label

    Suitable for gases

    value

    No

    label

    Spindle angle

    value

    90°

    label

    Spindle angle (imperial)

    value

    3.54"

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    5a2060

    carbon footprint (A-C) embodied carbon

    4.07kgCO2e

    data source

    TM65

    item number

    5a2063

    carbon footprint (A-C) embodied carbon

    7.49kgCO2e

    data source

    TM65

    item number

    5a2062

    carbon footprint (A-C) embodied carbon

    6.21kgCO2e

    data source

    TM65

    item number

    5a2064

    carbon footprint (A-C) embodied carbon

    12.13kgCO2e

    data source

    TM65

    item number

    5a2065

    carbon footprint (A-C) embodied carbon

    12.82kgCO2e

    data source

    TM65

    item number

    5a2066

    carbon footprint (A-C) embodied carbon

    18kgCO2e

    data source

    TM65
