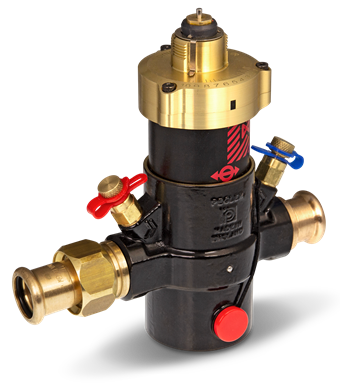

VSH XPress ProFlow dynamic control valve PICV with union connection (2 x press)

group: PSU1600

The type PSU1600 VSH XPress ProFlow Pressure Independent Control Valve (PICV), is designed to eliminate existing heating and cooling system issues, saving significant time and money. Apollo ProFlow PICV’s are supplied in bypass configuration. Valves can be installed and flushed (forward and backward) at full bore prior to commissioning with the PICV mechanism safely out of the way. Once the system is clean and ready to commission, a simple rotation of the PICV head introduces the valve into the flow, and rotates the bypass out of the way. VSH XPress ProFlow PICV valves are available with several connection technologies.
  • ensures bypass/flushing have been actioned to prevent future issues
  • utilise as isolating valve; no need for ball valve inline
  • less time removing cartridges for flushing
  • includes test points
  • hot swap of inserts
  • visible setting indication with actuator on

Union couplings should be combined with male threaded counterparts with appropriate support for the seal.
  1. check the quality and integrity of theflat sealing. Sealing and support flats must be clean and free of indentations
  2. mount the union on the male thread until hand tight
  3. apply 1/8 to 1/4 turn, using a matching spanner. Over-turning might cause damage to the sealing ring
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

16050

size

15 (DN15) LF

dimensions

157x65x153 mm

weight

1 kg

packaging

-

gtin

05022050605733

item number

16051

size

15 (DN15) SF

dimensions

157x65x153 mm

weight

0.97 kg

packaging

-

gtin

05022050605764

item number

16052

size

15 (DN15) HF

dimensions

157x65x153 mm

weight

1 kg

packaging

-

gtin

05022050605795

item number

16053

size

22 (DN20) SF

dimensions

188x104x181 mm

weight

1.68 kg

packaging

-

gtin

05022050605825

item number

16054

size

22 (DN20) HF

dimensions

188x104x181 mm

weight

1.68 kg

packaging

-

gtin

05022050605856

item number

16055

size

28 (DN25) SF

dimensions

193x116x188 mm

weight

1.68 kg

packaging

-

gtin

05022050605955

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

slw2

slw0

H

Y

V

U

a

item number

16050

size

15 (DN15) LF

d1

15.0

DN1

DN15

l1

68

z1

48

d2

15.0

DN2

DN15

l2

89

z2

70

slw2

34

slw0

27

H

90

Y

29

V

38

U

49

a

90

item number

16051

size

15 (DN15) SF

d1

15.0

DN1

DN15

l1

68

z1

48

d2

15.0

DN2

DN15

l2

89

z2

70

slw2

34

slw0

27

H

90

Y

29

V

38

U

49

a

90

item number

16052

size

15 (DN15) HF

d1

15.0

DN1

DN15

l1

68

z1

48

d2

15.0

DN2

DN15

l2

89

z2

70

slw2

34

slw0

27

H

90

Y

29

V

38

U

49

a

90

item number

16053

size

22 (DN20) SF

d1

22.0

DN1

DN20

l1

76

z1

55

d2

22.0

DN2

DN20

l2

105

z2

84

slw2

40

slw0

32

H

105

Y

32

V

50

U

60

a

90

item number

16054

size

22 (DN20) HF

d1

22.0

DN1

DN20

l1

76

z1

55

d2

22.0

DN2

DN20

l2

105

z2

84

slw2

40

slw0

32

H

105

Y

32

V

50

U

60

a

90

item number

16055

size

28 (DN25) SF

d1

28.0

DN1

DN25

l1

84

z1

61

d2

28.0

DN2

DN25

l2

109

z2

86

slw2

48

slw0

40

H

105

Y

32

V

50

U

60

a

90

technical drawing for product

characteristics

color

black

materials

brass (CW511L (lead-free))

finishing

powder

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (dynamic balancing valves)

ETIM class

EC011463 Regulating valve

HS code

84818099

brand

VSH

series

XPress ProFlow Dynamic

product type

PSU1600

UNSPS

40141609

technical

max operating pressure liquid

16 bar

min. medium temperature

-10 °C

max medium temperature

90 °C

peak medium temperature

90 °C

Kv-value

value depends on the item view items

image for PSU1600

image | png

PSU1600

Other document | pdf

Pegler ProFlow Price List

image for Diagram

diagram | jpg

Diagram

Other document | pdf

Pegler ProFlow Technical Manual

Presentation video | mp4

Pegler_ProFlow_PICV_1600_30sec

Presentation video | mp4

Pegler_ProFlow_PICV _1600

Presentation video | mp4

Pegler_ProFlow_PICV_1600_training_video

submittal sheet | pdf

Specification_Pegler_ProFlow_PICV_1600

certifications | pdf

XPress_adapted_valves_WRAS

Other Attachments | docx

Apollo_ProFlow_dynamisch_1600-prescription_text-EN

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn38As

label

Surface protection

value

Coated

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

Yes

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

Yes

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

Suitable for tap water

value

No

label

Suitable for hot tap water

value

No

label

Suitable for central heating water

value

Yes

label

Max. pressure difference at 20 °C

value

4bar

label

Max. operating pressure

value

16bar

label

Max. operating pressure (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-10°C - 90°C

label

Medium temperature (continuous) (imperial)

value

14°F - 194°F

label

Stroke length

value

3.5mm

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Dynamic

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

Yes

label

With measuring nipples

value

Yes

label

With extended measuring nipples

value

No

label

With measuring connector

value

Yes

label

Spindle angle

value

90°

label

Spindle angle (imperial)

value

3.54"

label

With insulation

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

16050

carbon footprint (A-C) embodied carbon

5.29kgCO2e

data source

TM65

item number

16051

carbon footprint (A-C) embodied carbon

5.28kgCO2e

data source

TM65

item number

16052

carbon footprint (A-C) embodied carbon

5.27kgCO2e

data source

TM65

item number

16053

carbon footprint (A-C) embodied carbon

8.33kgCO2e

data source

TM65

item number

16054

carbon footprint (A-C) embodied carbon

8.23kgCO2e

data source

TM65

item number

16055

carbon footprint (A-C) embodied carbon

10.43kgCO2e

data source

TM65
