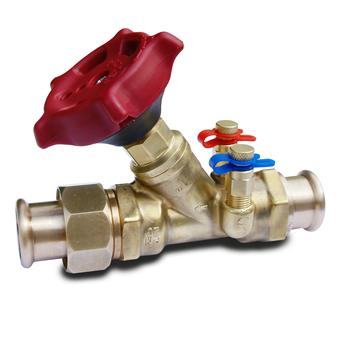

VSH XPress ProFlow static commissioning valve FODRV with union connection (2 x press)

group: PSU1260Outlet

The type PSU1260 VSH XPress ProFlow static balancing valve has M-profile press connections and is a wide range balancing valve with shut off function and fixed orifice (FODRV). The fixed orifice allows fast and accurate flow measurements with fixed Kv-value while the robust grip handle provides easy control. The numeric position indicator and memory stop assures optimal adjustment to the design flow. Type PSU1260 valves are part of the VSH XPress system and are availlable in sizes 15-54.
  • fixed orifice
  • Union coupling on outlet side for easy disassembly
  • includes test points
  • easy turn grip handle with numeric position indicator
  • grip handle with memory stop
  • VSH Xpress: Fast en reliable connection technology
  • Leak Before Pressed (LBP)-function
  • compact design

  • Union couplings should be combined with male threaded counterparts with appropriate support for the seal.
    1. check the quality and integrity of theflat sealing. Sealing and support flats must be clean and free of indentations
    2. mount the union on the male thread until hand tight
    3. apply 1/8 to 1/4 turn, using a matching spanner. Over-turning might cause damage to the sealing ring
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

126292

size

15 (DN15) ULF

dimensions

147x89x124 mm

weight

0.6 kg

packaging

box (1 pce)

gtin

05022050467874

item number

126230

size

15 (DN15) LF

dimensions

147x89x124 mm

weight

0.6 kg

packaging

box (1 pce)

gtin

05022050251930

item number

126290

size

15 (DN15) MF

dimensions

147x89x124 mm

weight

0.56 kg

packaging

box (1 pce)

gtin

05022050467850

item number

126231

size

15 (DN15) SF

dimensions

147x89x124 mm

weight

0.6 kg

packaging

bag (1 pce)

gtin

05022050251985

item number

126296

size

18 (DN15) ULF

dimensions

147x89x124 mm

weight

0.56 kg

packaging

box (1 pce)

gtin

05022050467928

item number

126232

size

18 (DN15) LF

dimensions

147x89x124 mm

weight

0.56 kg

packaging

box (1 pce)

gtin

05022050252043

item number

126294

size

18 (DN15) MF

dimensions

147x89x124 mm

weight

0.56 kg

packaging

box (1 pce)

gtin

05022050467898

item number

126233

size

18 (DN15) SF

dimensions

147x89x124 mm

weight

0.56 kg

packaging

box (1 pce)

gtin

05022050252197

item number

126234

size

22 (DN20) SF

dimensions

162x89x127 mm

weight

0.68 kg

packaging

bag (1 pce)

gtin

05022050252463

item number

126235

size

28 (DN25) SF

dimensions

186x89x134 mm

weight

0.99 kg

packaging

bag (1 pce)

gtin

05022050252524

item number

126236

size

35 (DN32) SF

dimensions

205x89x147 mm

weight

1.59 kg

packaging

bag (1 pce)

gtin

05022050252579

item number

126237

size

42 (DN40) SF

dimensions

229x89x160 mm

weight

2.06 kg

packaging

bag (1 pce)

gtin

05022050252630

item number

126238

size

54 (DN50) SF

dimensions

266x86x138 mm

weight

3.37 kg

packaging

box (1 pce)

gtin

05022050252739

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

M

H

Y

V

U

a

item number

126292

size

15 (DN15) ULF

d1

15.0

DN1

DN12

l1

66

z1

48

d2

15.0

DN2

DN15

l2

89

z2

69

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126230

size

15 (DN15) LF

d1

15.0

DN1

DN12

l1

66

z1

48

d2

15.0

DN2

DN15

l2

89

z2

69

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126290

size

15 (DN15) MF

d1

15.0

DN1

DN12

l1

66

z1

48

d2

15.0

DN2

DN15

l2

89

z2

69

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126231

size

15 (DN15) SF

d1

15.0

DN1

DN12

l1

66

z1

48

d2

15.0

DN2

DN15

l2

89

z2

69

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126296

size

18 (DN15) ULF

d1

18.0

DN1

DN15

l1

66

z1

48

d2

18.0

DN2

DN15

l2

89

z2

69

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126232

size

18 (DN15) LF

d1

18.0

DN1

DN15

l1

66

z1

48

d2

18.0

DN2

DN15

l2

89

z2

69

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126294

size

18 (DN15) MF

d1

18.0

DN1

DN15

l1

66

z1

48

d2

18.0

DN2

DN15

l2

89

z2

69

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126233

size

18 (DN15) SF

d1

18.0

DN1

DN15

l1

66

z1

48

d2

18.0

DN2

DN15

l2

89

z2

69

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126234

size

22 (DN20) SF

d1

22.0

DN1

DN20

l1

98

z1

72

d2

22.0

DN2

DN20

l2

67

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126235

size

28 (DN25) SF

d1

28.0

DN1

DN25

l1

102

z1

79

d2

28.0

DN2

DN25

l2

74

z2

53

M

89

H

114

Y

38

V

70

U

30

a

55

item number

126236

size

35 (DN32) SF

d1

35.0

DN1

DN32

l1

115

z1

93

d2

35.0

DN2

DN32

l2

89

z2

65

M

89

H

123

Y

38

V

82

U

43

a

55

item number

126237

size

42 (DN40) SF

d1

42.0

DN1

DN40

l1

126

z1

91

d2

42.0

DN2

DN40

l2

96

z2

68

M

89

H

126

Y

38

V

85

U

50

a

55

item number

126238

size

54 (DN50) SF

d1

54.0

DN1

DN50

l1

150

z1

109

d2

54.0

DN2

DN50

l2

117

z2

83

M

89

H

141

Y

38

V

103

U

57

a

55

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC491K)

finishing

none

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (static balancing valves)

ETIM class

EC011463 Regulating valve

HS code

84818099

brand

VSH

series

XPress ProFlow Static

product type

PSU1260Outlet

UNSPS

40141609

technical

max operating pressure liquid

16 bar

min. medium temperature

-10 °C

max medium temperature

110 °C

peak medium temperature

110 °C

Kvs-value

value depends on the item view items

Kv-value

value depends on the item view items

image for PSU1260_outlet

image | png

PSU1260_outlet

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

VSH XPress installation instructions

certifications | pdf

XPress_adapted_valves_WRAS

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Surface protection

value

Untreated

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

Yes

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

Yes

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

Suitable for tap water

value

Yes

label

Suitable for hot tap water

value

Yes

label

Suitable for central heating water

value

Yes

label

Max. operating pressure

value

16bar

label

Max. operating pressure (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-10°C - 110°C

label

Medium temperature (continuous) (imperial)

value

14°F - 230°F

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Static

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

Yes

label

Height operating element

value

38mm

label

Height operating element (imperial)

value

1.5"

label

Diameter handwheel

value

89mm

label

Diameter handwheel (imperial)

value

3.5"

label

Spindle angle

value

55°

label

Spindle angle (imperial)

value

2.17"

label

With insulation

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

126292

carbon footprint (A-C) embodied carbon

3.03kgCO2e

data source

TM65

item number

126230

carbon footprint (A-C) embodied carbon

2.98kgCO2e

data source

TM65

item number

126290

carbon footprint (A-C) embodied carbon

3.04kgCO2e

data source

TM65

item number

126231

carbon footprint (A-C) embodied carbon

3.02kgCO2e

data source

TM65

item number

126296

carbon footprint (A-C) embodied carbon

3.07kgCO2e

data source

TM65

item number

126232

carbon footprint (A-C) embodied carbon

3.02kgCO2e

data source

TM65

item number

126294

carbon footprint (A-C) embodied carbon

3.07kgCO2e

data source

TM65

item number

126233

carbon footprint (A-C) embodied carbon

3.05kgCO2e

data source

TM65

item number

126234

carbon footprint (A-C) embodied carbon

3.77kgCO2e

data source

TM65

item number

126235

carbon footprint (A-C) embodied carbon

5.35kgCO2e

data source

TM65

item number

126236

carbon footprint (A-C) embodied carbon

9.05kgCO2e

data source

TM65

item number

126237

carbon footprint (A-C) embodied carbon

10.67kgCO2e

data source

TM65

item number

126238

carbon footprint (A-C) embodied carbon

18.14kgCO2e

data source

TM65
