VSH XPress ProFlow FODRV static commissioning valve FODRV with union connection (2 x press)

group: PSU1260Inlet

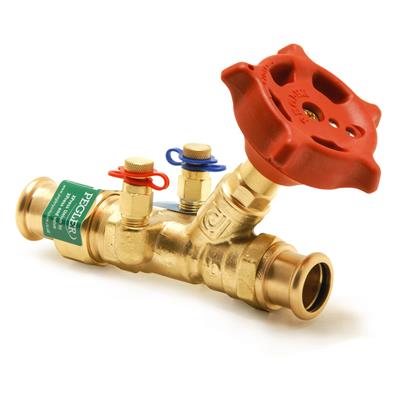

The type PSU1260 VSH XPress ProFlow static balancing valve has M-profile press connections and is a wide range balancing valve with shut off function and fixed orifice (FODRV). The fixed orifice allows fast and accurate flow measurements with fixed Kv-value while the robust grip handle provides easy control. The numeric position indicator and memory stop assures optimal adjustment to the design flow. Type PSU1260 valves are part of the VSH XPress system and are availlable in sizes 15-54.

  • fixed orifice
  • Union coupling on inlet side for easy disassembly
  • includes test points
  • easy turn grip handle with numeric position indicator
  • grip handle with memory stop
  • VSH Xpress: Fast en reliable connection technology
  • Leak Before Pressed (LBP)-function
  • compact design

Union couplings should be combined with male threaded counterparts with appropriate support for the seal.
  1. check the quality and integrity of theflat sealing. Sealing and support flats must be clean and free of indentations
  2. mount the union on the male thread until hand tight
  3. apply 1/8 to 1/4 turn, using a matching spanner. Over-turning might cause damage to the sealing ring
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

M

H

Y

V

U

a

item number

126293

size

15 (DN15) ULF

d1

15.0

DN1

DN12

l1

89

z1

69

d2

15.0

DN2

DN15

l2

66

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126247

size

15 (DN15) LF

d1

15.0

DN1

DN12

l1

89

z1

69

d2

15.0

DN2

DN15

l2

66

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126291

size

15 (DN15) MF

d1

15.0

DN1

DN12

l1

89

z1

69

d2

15.0

DN2

DN15

l2

66

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126248

size

15 (DN15) SF

d1

15.0

DN1

DN12

l1

89

z1

69

d2

15.0

DN2

DN15

l2

66

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126297

size

18 (DN15) ULF

d1

18.0

DN1

DN15

l1

89

z1

69

d2

18.0

DN2

DN15

l2

66

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126249

size

18 (DN15) LF

d1

18.0

DN1

DN15

l1

89

z1

69

d2

18.0

DN2

DN15

l2

66

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126295

size

18 (DN15) MF

d1

18.0

DN1

DN15

l1

89

z1

69

d2

18.0

DN2

DN15

l2

66

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126250

size

18 (DN15) SF

d1

18.0

DN1

DN15

l1

89

z1

69

d2

18.0

DN2

DN15

l2

66

z2

48

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126251

size

22 (DN20) SF

d1

22.0

DN1

DN20

l1

67

z1

48

d2

22.0

DN2

DN20

l2

98

z2

72

M

89

H

109

Y

38

V

64

U

26

a

55

item number

126252

size

28 (DN25) SF

d1

28.0

DN1

DN25

l1

74

z1

53

d2

28.0

DN2

DN25

l2

102

z2

79

M

89

H

114

Y

38

V

70

U

30

a

55

item number

126253

size

35 (DN32) SF

d1

35.0

DN1

DN32

l1

89

z1

65

d2

35.0

DN2

DN32

l2

115

z2

93

M

89

H

123

Y

38

V

82

U

43

a

55

item number

126254

size

42 (DN40) SF

d1

42.0

DN1

DN40

l1

96

z1

68

d2

42.0

DN2

DN40

l2

126

z2

91

M

89

H

126

Y

38

V

85

U

50

a

55

item number

126255

size

54 (DN50) SF

d1

54.0

DN1

DN50

l1

117

z1

83

d2

54.0

DN2

DN50

l2

150

z2

109

M

89

H

141

Y

38

V

103

U

57

a

55

item number

size

U

a

15 (DN15) ULF

26

55

15 (DN15) LF

26

55

15 (DN15) MF

26

55

15 (DN15) SF

26

55

18 (DN15) ULF

26

55

18 (DN15) LF

26

55

18 (DN15) MF

26

55

18 (DN15) SF

26

55

22 (DN20) SF

26

55

28 (DN25) SF

30

55

35 (DN32) SF

43

55

42 (DN40) SF

50

55

54 (DN50) SF

57

55

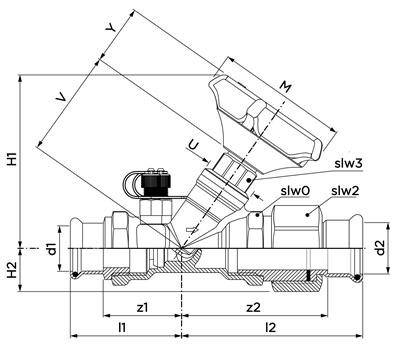

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC491K)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (static balancing valves)

HS code

84818099

brand

VSH

series

XPress ProFlow Static

product type

PSU1260Inlet

UNSPS

40141609
