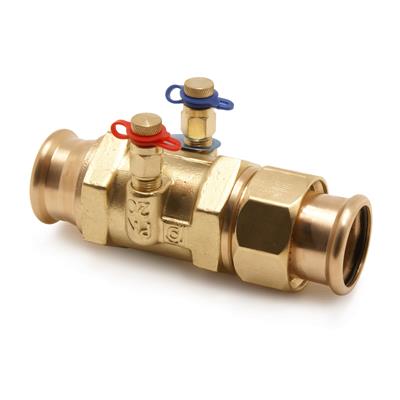

VSH XPress Proflow Fixed Orifice Measuring Station With Union Outlet

group: PSU1250

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

H

a

item number

126283

size

15 (DN15) ULF

d1

15.0

DN1

DN12

l1

46

z1

29

d2

15.0

DN2

DN15

l2

67

z2

45

H

49

a

90

item number

126284

size

15 (DN15) ULF

d1

15.0

DN1

DN12

l1

46

z1

29

d2

15.0

DN2

DN15

l2

67

z2

45

H

49

a

90

item number

126280

size

15 (DN15) MF

d1

15.0

DN1

DN12

l1

46

z1

29

d2

15.0

DN2

DN15

l2

67

z2

45

H

49

a

90

item number

126281

size

15 (DN15) MF

d1

15.0

DN1

DN12

l1

46

z1

29

d2

15.0

DN2

DN15

l2

67

z2

45

H

49

a

90

item number

126226

size

42 (DN40) SF

d1

42.0

DN1

DN40

l1

68

z1

40

d2

42.0

DN2

DN40

l2

103

z2

67

H

59

a

90

item number

126227

size

54 (DN50) SF

d1

54.0

DN1

DN50

l1

76

z1

42

d2

54.0

DN2

DN50

l2

116

z2

72

H

64

a

90

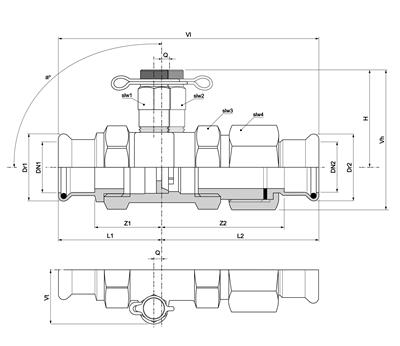

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC491K)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (static balancing valves)

ETIM class

EC011463 Regulating valve

HS code

84818099

brand

VSH

series

XPress ProFlow Static

product type

PSU1250

UNSPS

40141609

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Surface protection

value

Untreated

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

Yes

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

Yes

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

Suitable for tap water

value

Yes

label

Suitable for hot tap water

value

Yes

label

Suitable for central heating water

value

Yes

label

Max. operating pressure

value

16bar

label

Max. operating pressure (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-10°C - 110°C

label

Medium temperature (continuous) (imperial)

value

14°F - 230°F

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Static

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

No

label

Spindle angle

value

90°

label

With insulation

value

No
