group: PS913
potable water
heating
cooling
commercial building
WRAS
NSF
code
size
dimensions
weight
packaging
gtin
code
size
15 (DN15)
dimensions
95x30x55 mm
weight
0.3 kg
packaging
bag (1 pce)
gtin
05022050210951
code
size
18 (DN15)
dimensions
95x35x60 mm
weight
0.3 kg
packaging
bag (1 pce)
gtin
05022050211026
code
size
22 (DN20)
dimensions
95x50x60 mm
weight
0.41 kg
packaging
bag (1 pce)
gtin
05022050211071
code
size
28 (DN25)
dimensions
110x50x75 mm
weight
0.59 kg
packaging
bag (1 pce)
gtin
05022050211125
code
size
35 (DN32)
dimensions
125x60x88 mm
weight
0.96 kg
packaging
bag (1 pce)
gtin
05022050211170
code
size
42 (DN40)
dimensions
143x70x105 mm
weight
1.19 kg
packaging
bag (1 pce)
gtin
05022050211200
code
size
54 (DN50)
dimensions
172x80x130 mm
weight
2.17 kg
packaging
bag (1 pce)
gtin
05022050211231
code
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
V
a
angle
code
size
15 (DN15)
d1
15.0
DN1
DN15
l1
63
z1
45
slw1
29
d2
15.0
DN2
DN15
l2
46
z2
28
slw2
29
V
54
a
45
angle
45
code
size
18 (DN15)
d1
18.0
DN1
DN15
l1
63
z1
45
slw1
33
d2
18.0
DN2
DN15
l2
46
z2
28
slw2
33
V
54
a
45
angle
45
code
size
22 (DN20)
d1
22.0
DN1
DN20
l1
67
z1
48
slw1
38
d2
22.0
DN2
DN20
l2
48
z2
29
slw2
38
V
61
a
45
angle
45
code
size
28 (DN25)
d1
28.0
DN1
DN25
l1
78
z1
57
slw1
45
d2
28.0
DN2
DN25
l2
54
z2
33
slw2
45
V
75
a
45
angle
45
code
size
35 (DN32)
d1
54.0
DN1
DN32
l1
105
z1
81
slw1
54
d2
54.0
DN2
DN32
l2
66
z2
43
slw2
54
V
86
a
45
angle
45
code
size
42 (DN40)
d1
42.0
DN1
DN40
l1
112
z1
84
slw1
63
d2
42.0
DN2
DN40
l2
73
z2
46
slw2
63
V
100
a
45
angle
45
code
size
54 (DN50)
d1
54.0
DN1
DN50
l1
128
z1
95
slw1
78
d2
54.0
DN2
DN50
l2
84
z2
52
slw2
78
V
96
a
45
angle
45
item

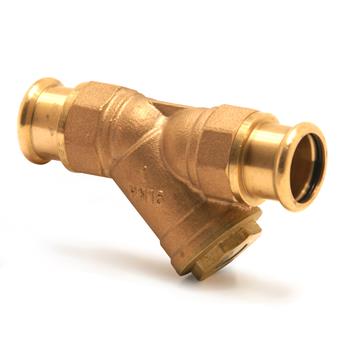

VSH XPress Y-Strainer
item number with gtin
PS913
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
2.17 kg
dimensions
172x80x130 mm
color
bronze
materials
bronze (EN CC499K)
finishing
none
shape
straight, 45º
connection type
press (M)
pressure rating (PN)
PN 16
sealing
PTFE
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
afsluiters (strainers)
ETIM class
EC010151 Pipeline strainerbrand
VSH
series
XPress Strainer
product type
PS913
UNSPS
40142505
label
value
label
etim-class
label
Shape
value
Pipeline strainer
label
Housing material
value
Bronze
label
Material quality
value
Bronze (Rg 5)
label
Surface protection
value
Untreated
label
Material sealing
value
Polytetrafluoroethylene (PTFE)
label
Connection
value
Press sleeve
label
Contour code
value
M
label
With coupling
value
Yes
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
Max. operating pressure
value
16bar
label
Max. operating pressure (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-10°C - 110°C
label
Medium temperature (continuous) (imperial)
value
14°F - 230°F
label
With drain possibility (connection)
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
Gastec QA - AR 214 (H2)
value
No
