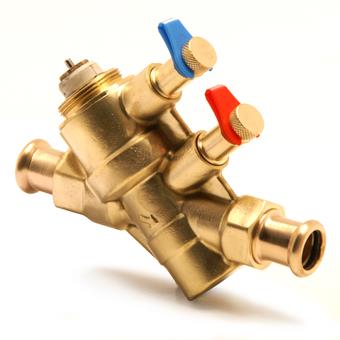

VSH XPress Proflow Dynamic Balancing Valve PICV

group: PS902S

RUNNING OUT, SUBJECT TO BEING SOLD OUT


The VSH Xpress PS902S (PICV) is a dynamic valve which combines pressure independent flow limiting and control in one body and has  Xpress Press fit connections, it operates independently of changes in system pressure in a heating and cooling water systems by using the integrated differential pressure controller to maintain the flow regardless of pressure changes. A fixed inline orifice venturi which allows direct flow measurement with an accuracy of +/- 3% and accurate and easy setting of maximum flow. It can be installed directly onto bends, reducers or flexible hoses and will save time, space, and money. The PSU902S can be used either with or without an automatic flow actuator; without it the valve acts as an automatic flow limiter which ensures the maximum pre-set flow rate is never exceeded, with the actuator it also acts as a 2-way control valve with full control authority which reacts instantly and adjusts the flow as directed by the Building Management System (BMS). It is available in sizes DN15 – DN50.
  • Direct flow measuring
  • Accurate and easy setting of maximum flow
  • Commissioning is no longer needed – operates independently from pressure changes
  • Will save time, space, and money
  • Full control authority means perfect flow control

  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    d1

    DN1

    l1

    z1

    d2

    DN2

    l2

    z2

    H

    V

    U

    a

    item number

    15282

    size

    15 (DN15) LF

    d1

    15.0

    DN1

    DN15

    l1

    70

    z1

    57

    d2

    15.0

    DN2

    DN15

    l2

    73

    z2

    60

    H

    89

    V

    62

    U

    23

    a

    45

    item number

    15990

    size

    22 (DN20) SF

    d1

    22.0

    DN1

    DN20

    l1

    86

    z1

    72

    d2

    22.0

    DN2

    DN20

    l2

    84

    z2

    70

    H

    95

    V

    70

    U

    28

    a

    45

    item number

    15991

    size

    22 (DN20) HF

    d1

    22.0

    DN1

    DN20

    l1

    86

    z1

    72

    d2

    22.0

    DN2

    DN20

    l2

    84

    z2

    70

    H

    95

    V

    70

    U

    28

    a

    45

    item number

    15283

    size

    15 (DN15) SF

    d1

    15.0

    DN1

    DN15

    l1

    70

    z1

    57

    d2

    15.0

    DN2

    DN15

    l2

    73

    z2

    60

    H

    89

    V

    62

    U

    23

    a

    45

    item number

    15284

    size

    15 (DN15) HF

    d1

    15.0

    DN1

    DN15

    l1

    70

    z1

    57

    d2

    15.0

    DN2

    DN15

    l2

    73

    z2

    60

    H

    89

    V

    62

    U

    23

    a

    45

    item number

    15992

    size

    28 (DN25) SF

    d1

    28.0

    DN1

    DN25

    l1

    87

    z1

    72

    d2

    28.0

    DN2

    DN25

    l2

    94

    z2

    79

    H

    95

    V

    71

    U

    32

    a

    45

    item number

    15993

    size

    28 (DN25) HF

    d1

    28.0

    DN1

    DN25

    l1

    87

    z1

    72

    d2

    28.0

    DN2

    DN25

    l2

    94

    z2

    79

    H

    95

    V

    71

    U

    32

    a

    45

    item number

    15994

    size

    35 (DN32) HF

    d1

    35.0

    DN1

    DN32

    l1

    105

    z1

    89

    d2

    35.0

    DN2

    DN32

    l2

    109

    z2

    93

    H

    106

    V

    82

    U

    36

    a

    45

    item number

    15995

    size

    42 (DN40) HF

    d1

    42.0

    DN1

    DN40

    l1

    124

    z1

    104

    d2

    42.0

    DN2

    DN40

    l2

    134

    z2

    114

    H

    114

    V

    100

    U

    45

    a

    45

    item number

    15996

    size

    54 (DN50) HF

    d1

    54.0

    DN1

    DN50

    l1

    130

    z1

    105

    d2

    54.0

    DN2

    DN50

    l2

    143

    z2

    118

    H

    121

    V

    106

    U

    54

    a

    45

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW602N (DZR))

    finishing

    none

    shape

    straight (45º)

    connection type

    press (M)

    pressure rating (PN)

    PN 16

    sealing

    EPDM

    general

    product group

    valves (dynamic balancing valves)

    ETIM class

    EC011463 Regulating valve

    brand

    VSH

    series

    XPress ProFlow Dynamic

    product type

    PS902S

    UNSPS

    40141609

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -20 °C

    max medium temperature

    110 °C

    peak medium temperature

    110 °C

    Kv-value

    value depends on the item view items

    image for PS902S

    image | jpg

    PS902S

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    XPress_adapted_valves_WRAS

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn36Pb2As (CW602N)

    label

    Surface protection

    value

    Untreated

    label

    Connection 1

    value

    Press sleeve

    label

    With coupling connection 1

    value

    Yes

    label

    Connection 2

    value

    Press sleeve

    label

    With coupling connection 2

    value

    Yes

    label

    Article compression class

    value

    PN 16

    label

    Flange compression class

    value

    PN 16

    label

    Suitable for tap water

    value

    No

    label

    Suitable for hot tap water

    value

    No

    label

    Suitable for central heating water

    value

    Yes

    label

    Max. operating pressure

    value

    16bar

    label

    Max. operating pressure (imperial)

    value

    232.06psi

    label

    Medium temperature (continuous)

    value

    -20°C - 110°C

    label

    Medium temperature (continuous) (imperial)

    value

    -4°F - 230°F

    label

    Suitable for manual operation

    value

    No

    label

    Thermostatic

    value

    No

    label

    Hydraulic balance control

    value

    Dynamic

    label

    With drain valve

    value

    No

    label

    With thermometer

    value

    No

    label

    With position indicator

    value

    No

    label

    Spindle angle

    value

    45°

    label

    With insulation

    value

    No
