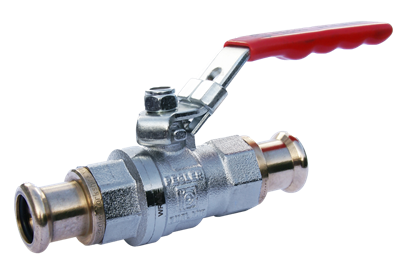

VSH XPress Ball valve (2 x press)

group: PS500

The PS500 valve is a compact, easy to operate, quarter turn ball valves in the Pegler range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids or gases in pipe lines.
  • PN16
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • VSH XPress connection suitable for copper, stainless and carbon steel
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

NSF

NSF

WRAS

WRAS

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M1

M2

H

h2

Y

V

U

a

item number

242301

size

15 (DN15) Cr

d1

15.0

DN1

DN15

l1

53

z1

29

slw1

31

d2

15.0

DN2

DN12

l2

53

z2

29

slw2

31

M1

10

M2

83

H

41

h2

18

Y

21

V

20

U

10

a

90

item number

242303

size

22 (DN20) Cr

d1

22.0

DN1

DN20

l1

58

z1

39

slw1

39

d2

22.0

DN2

DN20

l2

58

z2

39

slw2

39

M1

10

M2

103

H

52

h2

18

Y

21

V

31

U

11

a

90

item number

242304

size

28 (DN25) Cr

d1

28.0

DN1

DN25

l1

66

z1

45

slw1

46

d2

28.0

DN2

DN25

l2

66

z2

45

slw2

46

M1

10

M2

115

H

57

h2

19

Y

22

V

35

U

12

a

90

item number

242305

size

35 (DN32) Cr

d1

35.0

DN1

DN32

l1

76

z1

53

slw1

54

d2

35.0

DN2

DN32

l2

76

z2

53

slw2

54

M1

11

M2

130

H

64

h2

19

Y

22

V

42

U

13

a

90

item number

242306

size

42 (DN40) Cr

d1

42.0

DN1

DN40

l1

83

z1

55

slw1

62

d2

42.0

DN2

DN40

l2

83

z2

55

slw2

62

M1

11

M2

135

H

80

h2

20

Y

23

V

57

U

14

a

90

item number

242307

size

54 (DN50) Cr

d1

54.0

DN1

DN50

l1

99

z1

67

slw1

76

d2

54.0

DN2

DN50

l2

99

z2

67

slw2

76

M1

12

M2

159

H

86

h2

21

Y

24

V

62

U

15

a

90

item number

size

H

h2

Y

V

U

a

15 (DN15) Cr

41

18

21

20

10

90

22 (DN20) Cr

52

18

21

31

11

90

28 (DN25) Cr

57

19

22

35

12

90

35 (DN32) Cr

64

19

22

42

13

90

42 (DN40) Cr

80

20

23

57

14

90

54 (DN50) Cr

86

21

24

62

15

90

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

FPM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

VSH

series

XPress Ball Valve

product type

PS500

UNSPS

40141607

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Chromium-plated

label

Material ball seal

value

Polytetrafluoroethylene (PTFE)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Fluorelastomer rubber (FPM/FKM)

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

Yes

label

Contour code connection 1

value

M

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

Yes

label

Contour code connection 2

value

M

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 110°C

label

Medium temperature (continuous) (imperial)

value

14°F - 230°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Lever handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
