VSH XPress Pressure Reducing Valve

group: PS4PRV

The Pegler Type PS4PRV is a Pressure reducing valve which is made from Nickel Plated Brass which is designed to reduce the pressure of the flow across the valve from a maximum of 25 Bar at the inlet too between 0.5-6 Bar at the outlet, this valve is complete with VSH Xpress connections and is available in sizes 15/54mm
  • Pressuring Reduction: >25Bar to 0.5-6 Bar (adjustable)
  • VSH Xpress Connections for easy installation
  • EN 1567:2000
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    segments

    commercial building

    commercial building

    approvals

    WRAS

    WRAS

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    M

    H

    U

    a

    item number

    5A2070

    size

    15 (DN15)

    d1

    15.0

    DN1

    DN15

    l1

    62

    z1

    44

    slw1

    28

    d2

    15.0

    DN2

    DN15

    l2

    62

    z2

    44

    slw2

    28

    M

    23

    H

    83

    U

    50

    a

    90

    item number

    5A2072

    size

    22 (DN20)

    d1

    22.0

    DN1

    DN20

    l1

    70

    z1

    51

    slw1

    33

    d2

    22.0

    DN2

    DN20

    l2

    70

    z2

    51

    slw2

    33

    M

    27

    H

    99

    U

    58

    a

    90

    item number

    5A2073

    size

    28 (DN25)

    d1

    28.0

    DN1

    DN25

    l1

    72

    z1

    51

    slw1

    39

    d2

    28.0

    DN2

    DN25

    l2

    72

    z2

    51

    slw2

    39

    M

    27

    H

    106

    U

    58

    a

    90

    item number

    5A2074

    size

    35 (DN32)

    d1

    35.0

    DN1

    DN32

    l1

    87

    z1

    63

    slw1

    47

    d2

    35.0

    DN2

    DN32

    l2

    87

    z2

    63

    slw2

    47

    M

    35

    H

    152

    U

    75

    a

    90

    item number

    5A2075

    size

    42 (DN40)

    d1

    42.0

    DN1

    DN40

    l1

    95

    z1

    68

    slw1

    56

    d2

    42.0

    DN2

    DN40

    l2

    95

    z2

    68

    slw2

    56

    M

    37

    H

    153

    U

    80

    a

    90

    item number

    5A2076

    size

    54 (DN50)

    d1

    54.0

    DN1

    DN50

    l1

    109

    z1

    76

    slw1

    68

    d2

    54.0

    DN2

    DN50

    l2

    109

    z2

    76

    slw2

    68

    M

    42

    H

    171

    U

    91

    a

    90

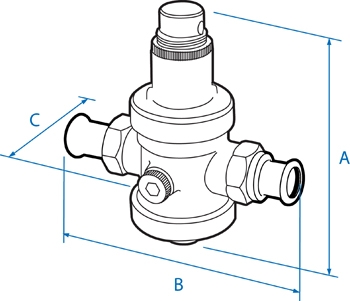

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW617N)

    finishing

    nickel-plated

    shape

    straight (0º)

    connection type

    press (M)

    pressure rating (PN)

    PN 25

    sealing

    NBR (Nitrile)

    general

    product group

    valves (pressure reducing valves)

    ETIM class

    EC010122 Pressure reducing valve

    brand

    VSH

    series

    XPress Pressure Reducing Valve

    product type

    PS4PRV

    UNSPS

    40141652

    technical

    max operating pressure liquid

    25 bar

    min. medium temperature

    -10 °C

    max medium temperature

    80 °C

    peak medium temperature

    80 °C

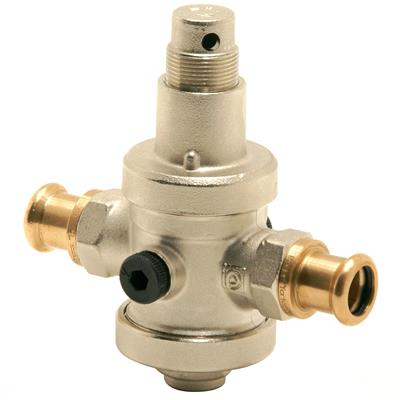

    image for PS4PRV

    image | jpg

    PS4PRV

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    XPress_adapted_valves_WRAS

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Surface protection

    value

    Nickel-plated

    label

    Connection 1

    value

    Press sleeve

    label

    With coupling connection 1

    value

    Yes

    label

    Connection 2

    value

    Press sleeve

    label

    With coupling connection 2

    value

    Yes

    label

    Article compression class

    value

    PN 25

    label

    Flange compression class

    value

    PN 25

    label

    Max. inlet pressure

    value

    25bar

    label

    Max. inlet pressure (imperial)

    value

    362.59psi

    label

    Medium temperature (continuous)

    value

    -10°C - 80°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 176°F

    label

    With pressure gauge

    value

    No

    label

    Suitable for liquids

    value

    No

    label

    Suitable for steam

    value

    No

    label

    Suitable for gases

    value

    No

    label

    Spindle angle

    value

    90°

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    5A2070

    carbon footprint (A-C) embodied carbon

    3.7kgCO2e

    data source

    TM65

    item number

    5A2072

    carbon footprint (A-C) embodied carbon

    5.57kgCO2e

    data source

    TM65

    item number

    5A2073

    carbon footprint (A-C) embodied carbon

    6.61kgCO2e

    data source

    TM65

    item number

    5A2074

    carbon footprint (A-C) embodied carbon

    10.98kgCO2e

    data source

    TM65

    item number

    5A2075

    carbon footprint (A-C) embodied carbon

    11.5kgCO2e

    data source

    TM65

    item number

    5A2076

    carbon footprint (A-C) embodied carbon

    16.42kgCO2e

    data source

    TM65
