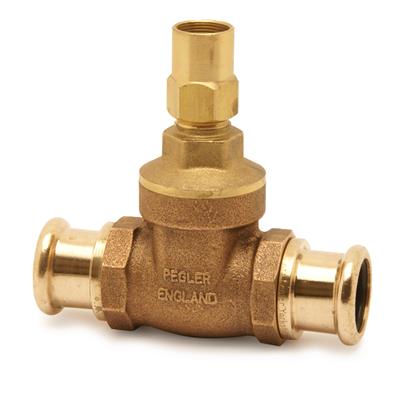

VSH XPress Gate Valve With Lockshield

group: PS1070/125LS

Pegler Valve type PS1070/125LS is a bronze full way gate valve designed for preventing back flow in pipework, these valves have non-rising internal threaded stems and come complete with a lock shield for easy operation using a key, this valve has adapted VSH Xpress connections and is available in sizes 15-54mm

  • all variants WRAS approved

  • Operating Temperature Between -10°C and 110°C
  • 16 bar Max. Working Pressure
  • Key Operated Lock Shield
  • VSH Xpress connections
  • Compact design
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

segments

commercial building

commercial building

industry

industry

approvals

KIWA

KIWA

NSF

NSF

WRAS

WRAS

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M

H

Y

V

U

a

item number

103311

size

15 (DN12)

d1

15.0

DN1

DN12

l1

49

z1

31

slw1

29

d2

15.0

DN2

DN12

l2

49

z2

31

slw2

29

M

15

H

75

Y

14

V

66

U

38

a

90

item number

103313

size

22 (DN20)

d1

22.0

DN1

DN20

l1

52

z1

33

slw1

37

d2

22.0

DN2

DN20

l2

52

z2

33

slw2

37

M

18

H

85

Y

16

V

75

U

45

a

90

item number

103314

size

28 (DN25)

d1

28.0

DN1

DN25

l1

59

z1

38

slw1

43

d2

28.0

DN2

DN25

l2

59

z2

38

slw2

43

M

22

H

110

Y

18

V

87

U

53

a

90

item number

103315

size

35 (DN32)

d1

35.0

DN1

DN32

l1

65

z1

42

slw1

51

d2

35.0

DN2

DN32

l2

65

z2

42

slw2

51

M

25

H

125

Y

20

V

99

U

61

a

90

item number

103316

size

42 (DN40)

d1

42.0

DN1

DN40

l1

71

z1

43

slw1

58

d2

42.0

DN2

DN40

l2

71

z2

43

slw2

58

M

29

H

145

Y

20

V

107

U

68

a

90

item number

103317

size

54 (DN50)

d1

54.0

DN1

DN50

l1

83

z1

50

slw1

71

d2

54.0

DN2

DN50

l2

83

z2

50

slw2

71

M

36

H

170

Y

20

V

129

U

82

a

90

item number

size

Y

V

U

a

15 (DN12)

14

66

38

90

22 (DN20)

16

75

45

90

28 (DN25)

18

87

53

90

35 (DN32)

20

99

61

90

42 (DN40)

20

107

68

90

54 (DN50)

20

129

82

90

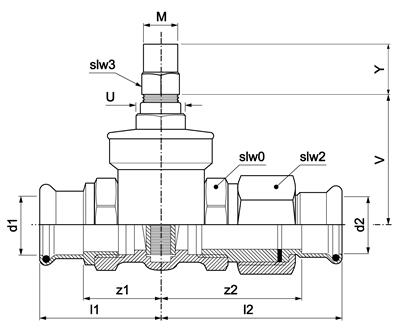

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

PTFE

general

product group

valves (gate valves)

ETIM class

EC010163 Gate valve

HS code

84818069

brand

VSH

series

XPress Gate Valve

product type

PS1070/125LS

UNSPS

40141613

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

Yes

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

Yes

label

Contour code

value

M

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 110°C

label

Medium temperature (continuous) (imperial)

value

14°F - 230°F

label

Surface protection

value

Untreated

label

Operation

value

Key

label

With position indicator

value

Yes

label

Spindle and/or hand wheel rising

value

No

label

With waste fitting

value

No

label

VdS quality mark

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

Gastec QA - AR 214 (H2)

value

No
