VSH XPress Gate Valve

group: PS1070/125

Pegler Valve type PS1070/125 is a bronze full way gate valve designed for preventing back flow in pipework, these valves have non-rising internal threaded stems and use a wheel handle making them easy to operate, this valve has adapted VSH Xpress connections and is available in sizes 15-54mm
  • all variants WRAS approved

  • Operating Temperature Between -10°C and 110°C
  • 16 bar Max. Working Pressure
  • VSH Xpress connections
  • Compact design
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    steam

    steam

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    KIWA

    KIWA

    NSF

    NSF

    WRAS

    WRAS

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    M

    H

    Y

    V

    U

    a

    item number

    103301

    size

    15 (DN15)

    d1

    15.0

    DN1

    DN15

    l1

    49

    z1

    31

    slw1

    29

    d2

    15.0

    DN2

    DN15

    l2

    49

    z2

    31

    slw2

    29

    M

    62

    H

    85

    Y

    14

    V

    66

    U

    38

    a

    90

    item number

    103303

    size

    22 (DN20)

    d1

    22.0

    DN1

    DN20

    l1

    52

    z1

    33

    slw1

    37

    d2

    22.0

    DN2

    DN20

    l2

    52

    z2

    33

    slw2

    37

    M

    67

    H

    95

    Y

    16

    V

    75

    U

    45

    a

    90

    item number

    103304

    size

    28 (DN25)

    d1

    28.0

    DN1

    DN25

    l1

    59

    z1

    38

    slw1

    43

    d2

    28.0

    DN2

    DN25

    l2

    59

    z2

    38

    slw2

    43

    M

    78

    H

    110

    Y

    18

    V

    87

    U

    53

    a

    90

    item number

    103305

    size

    35 (DN32)

    d1

    35.0

    DN1

    DN32

    l1

    65

    z1

    42

    slw1

    51

    d2

    35.0

    DN2

    DN32

    l2

    65

    z2

    42

    slw2

    51

    M

    88

    H

    125

    Y

    20

    V

    99

    U

    61

    a

    90

    item number

    103306

    size

    42 (DN40)

    d1

    42.0

    DN1

    DN40

    l1

    71

    z1

    43

    slw1

    58

    d2

    42.0

    DN2

    DN40

    l2

    71

    z2

    43

    slw2

    58

    M

    91

    H

    145

    Y

    20

    V

    107

    U

    68

    a

    90

    item number

    103307

    size

    54 (DN50)

    d1

    54.0

    DN1

    DN50

    l1

    83

    z1

    50

    slw1

    71

    d2

    54.0

    DN2

    DN50

    l2

    83

    z2

    50

    slw2

    71

    M

    108

    H

    170

    Y

    20

    V

    129

    U

    82

    a

    90

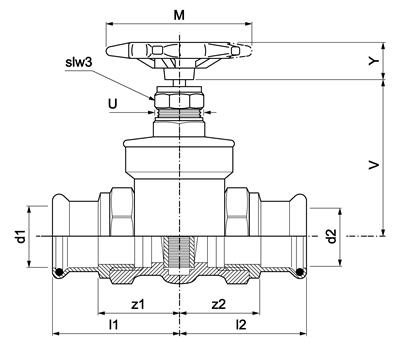

    technical drawing for product

    characteristics

    color

    bronze

    materials

    bronze (EN CC499K)

    finishing

    none

    shape

    straight (0º)

    connection type

    press (M)

    pressure rating (PN)

    PN 16

    sealing

    PTFE

    general

    product group

    valves (gate valves)

    ETIM class

    EC010163 Gate valve

    HS code

    84818069

    brand

    VSH

    series

    XPress Gate Valve

    product type

    PS1070/125

    UNSPS

    40141613

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    110 °C

    peak medium temperature

    110 °C

    Kvs-value

    value depends on the item view items

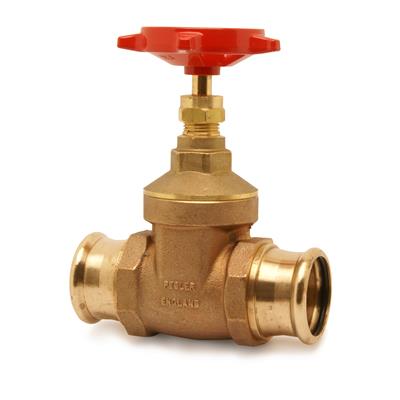

    image for PS1070-125

    image | jpg

    PS1070-125

    image for Diagram

    diagram | jpg

    Diagram

    installation- & maintenance document | pdf

    VSH XPress installation instructions

    certifications | pdf

    NSF_REG4_(Xpress_BSP_to_Pressfit)_393371

    certifications | pdf

    XPress_adapted_valves_WRAS

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Bronze

    label

    Connection 1

    value

    Press sleeve

    label

    With coupling connection 1

    value

    Yes

    label

    Connection 2

    value

    Press sleeve

    label

    With coupling connection 2

    value

    Yes

    label

    Contour code

    value

    M

    label

    Article compression class

    value

    PN 16

    label

    Flange compression class

    value

    PN 16

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    -10°C - 110°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 230°F

    label

    Surface protection

    value

    Untreated

    label

    Operation

    value

    Hand wheel

    label

    With position indicator

    value

    No

    label

    Spindle and/or hand wheel rising

    value

    No

    label

    With waste fitting

    value

    No

    label

    VdS quality mark

    value

    No

    label

    KIWA certified

    value

    Yes

    label

    Gastec QA mark

    value

    No

    label

    Gastec QA - AR 214 (H2)

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    103301

    carbon footprint (A-C) embodied carbon

    2.64kgCO2e

    data source

    TM65

    item number

    103303

    carbon footprint (A-C) embodied carbon

    3.6kgCO2e

    data source

    TM65

    item number

    103304

    carbon footprint (A-C) embodied carbon

    5.48kgCO2e

    data source

    TM65

    item number

    103305

    carbon footprint (A-C) embodied carbon

    8.98kgCO2e

    data source

    TM65

    item number

    103306

    carbon footprint (A-C) embodied carbon

    11.18kgCO2e

    data source

    TM65

    item number

    103307

    carbon footprint (A-C) embodied carbon

    17.56kgCO2e

    data source

    TM65
