VSH XPress swing check valve

group: PS1060A

The Pegler Type PS1060A Bronze Check valves are designed for long trouble-free service and have VSH Xpress connections. All our check valves are designed to prevent back flow of fluids in pipelines and are self-acting. They are used for low velocity liquid services to prevent a change to the direction of flow caused by back flow and are available in sizes 15 too 54mm

  • Pressure rated up to PN16

  • Gun metal Bronze
  • VSH Xpress Connections
  • type B according to EN13959:2004
  • EN12288
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

NSF

NSF

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

V

U

a

item number

122301

size

15 (DN15)

d1

15.0

DN1

DN15

l1

54

z1

36

slw1

26

d2

15.0

DN2

DN15

l2

54

z2

36

slw2

26

V

45

U

32

a

90

item number

122302

size

18 (DN15)

d1

18.0

DN1

DN15

l1

54

z1

36

slw1

26

d2

18.0

DN2

DN15

l2

54

z2

36

slw2

26

V

45

U

32

a

90

item number

122303

size

22 (DN20)

d1

22.0

DN1

DN20

l1

62

z1

43

slw1

33

d2

22.0

DN2

DN20

l2

62

z2

43

slw2

33

V

55

U

41

a

90

item number

122304

size

28 (DN25)

d1

28.0

DN1

DN25

l1

68

z1

47

slw1

40

d2

28.0

DN2

DN25

l2

68

z2

47

slw2

40

V

60

U

48

a

90

item number

122305

size

35 (DN32)

d1

35.0

DN1

DN32

l1

76

z1

52

slw1

48

d2

35.0

DN2

DN32

l2

76

z2

52

slw2

48

V

65

U

58

a

90

item number

122306

size

42 (DN40)

d1

42.0

DN1

DN40

l1

85

z1

58

slw1

56

d2

42.0

DN2

DN40

l2

85

z2

58

slw2

56

V

75

U

67

a

90

item number

122307

size

54 (DN50)

d1

54.0

DN1

DN50

l1

100

z1

68

slw1

69

d2

54.0

DN2

DN50

l2

100

z2

68

slw2

69

V

90

U

82

a

90

item number

size

a

15 (DN15)

90

18 (DN15)

90

22 (DN20)

90

28 (DN25)

90

35 (DN32)

90

42 (DN40)

90

54 (DN50)

90

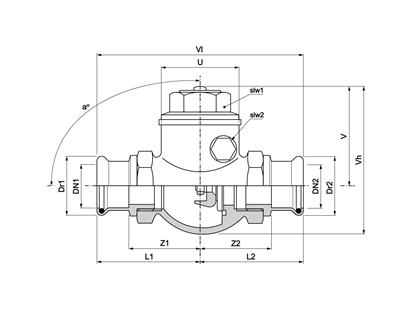

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (check valves)

ETIM class

EC011469 Check valve

HS code

84813099

brand

VSH

series

XPress Check Valve

product type

PS1060A

UNSPS

40141634

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

Bronze (Rg 5)

label

Surface protection

value

Untreated

label

Connections

value

Press sleeve

label

Contour code

value

M

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

Sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Angle of non-return valve

value

label

Medium temperature (continuous)

value

-10°C - 110°C

label

Medium temperature (continuous) (imperial)

value

14°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Suitable for central heating water

value

Yes

label

Certified by SVGW for water

value

No

label

Certified according to SVGW for gas

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
