group: PRVX4
potable water
no segments available
UK water regulation 4
WRAS
code
size
dimensions
weight
packaging
gtin
code

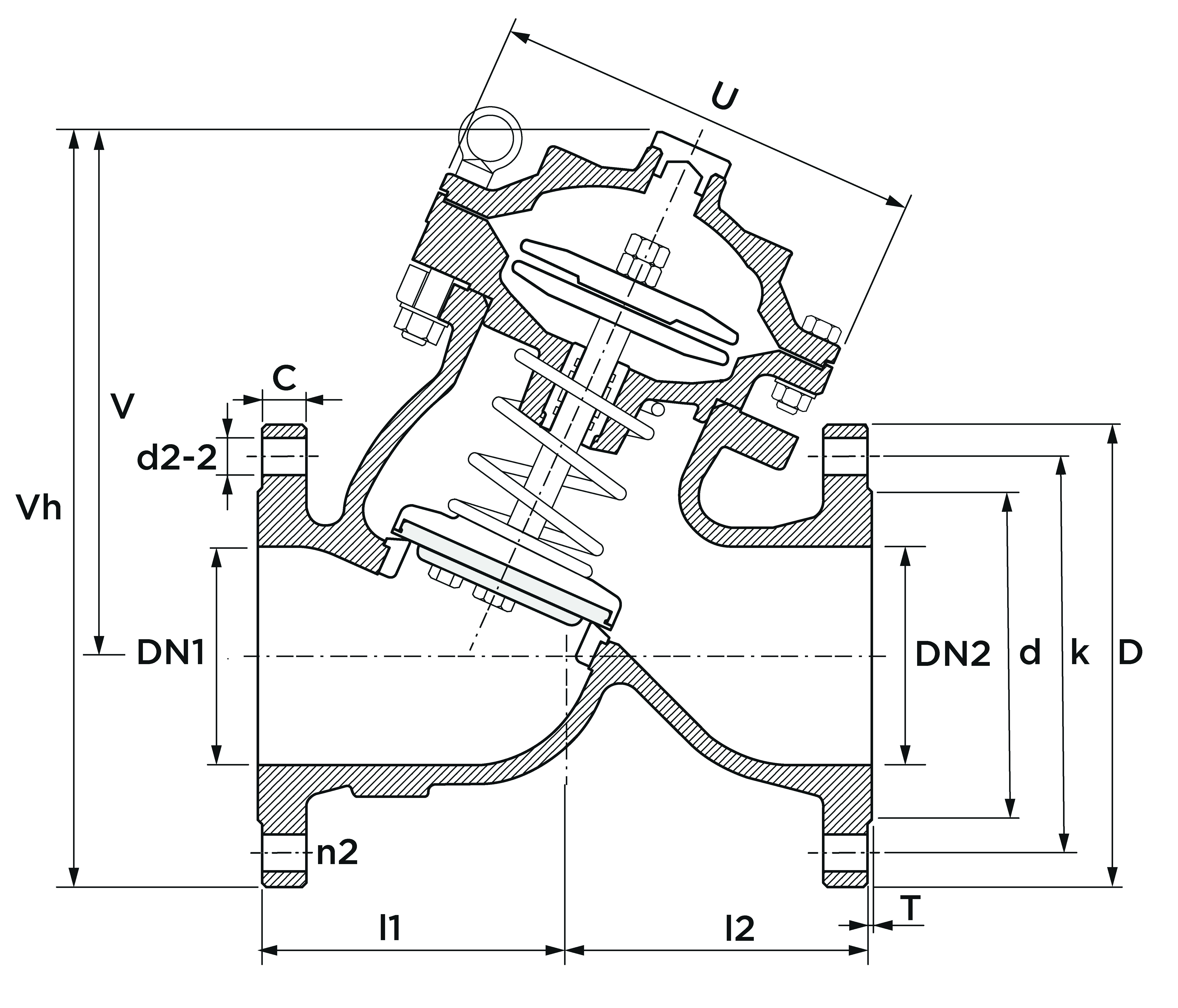

size
d1
DN1
l1
d2
DN2
l2
b2
V
U
D1
code
size
2 1/2" (DN65)
d1
118.0
DN1
2 1/2" (DN65)
l1
108
d2
118.0
DN2
2 1/2" (DN65)
l2
108
b2
19
V
195
U
122
D1
185
code
size
3" (DN80)
d1
132.0
DN1
3" (DN80)
l1
121
d2
132.0
DN2
3" (DN80)
l2
121
b2
19
V
215
U
143
D1
200
code
size
4" (DN100)
d1
156.0
DN1
4" (DN100)
l1
146
d2
156.0
DN2
4" (DN100)
l2
146
b2
19
V
255
U
170
D1
220
code
size
5" (DN125)
d1
184.0
DN1
5" (DN125)
l1
165
d2
184.0
DN2
5" (DN125)
l2
165
b2
19
V
290
U
205
D1
250
code
size
6" (DN150)
d1
211.0
DN1
6" (DN150)
l1
178
d2
211.0
DN2
6" (DN150)
l2
178
b2
19
V
360
U
254
D1
280
code
size
8" (DN200)
d1
266.0
DN1
8" (DN200)
l1
248
d2
266.0
DN2
8" (DN200)
l2
248
b2
20
V
450
U
388
D1
295
item

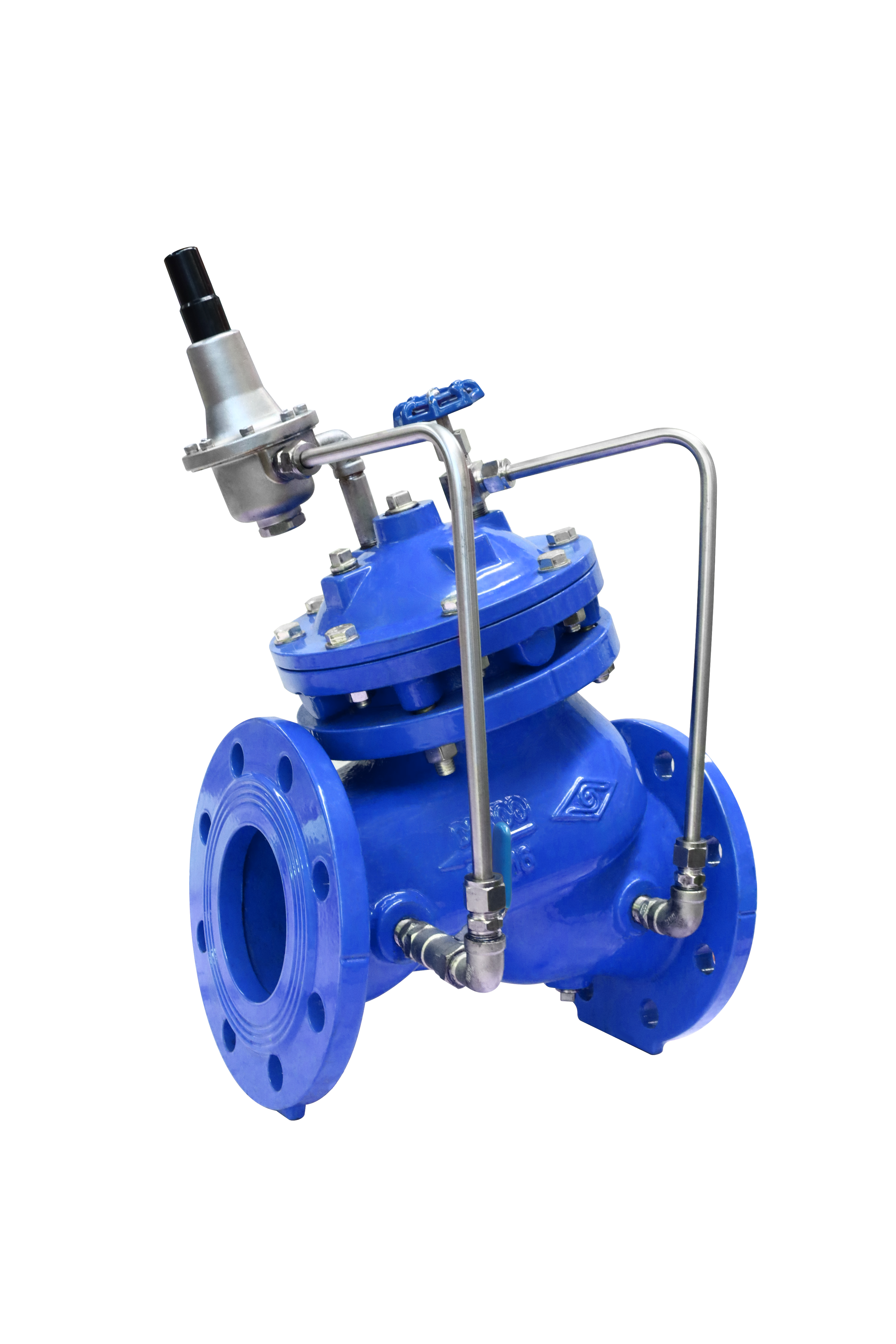

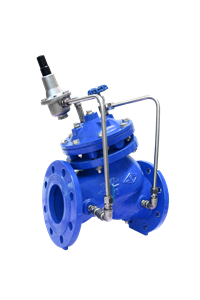

Pegler pilot operated pressure reducing valve (2 x flange)
item number with gtin
PRVX4
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
125.29 kg
dimensions
495x340x620
color
blue
materials
cast iron (ductile cast iron)
shape
straight
connection type
flange
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
16 bar
max medium temperature
80 °C
peak medium temperature
80 °C
product group
afsluiters (pressure reducing valves)
ETIM class
EC010122 Pressure reducing valvebrand
Pegler
series
Pressure Reducing Valve
product type
PRVX4
UNSPS
40141652
label
value
label
etim-class
label
Housing material
value
Cast iron
label
Connection 1
value
Flange
label
With coupling connection 1
value
No
label
Connection 2
value
Flange
label
With coupling connection 2
value
No
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
Max. inlet pressure
value
16bar
label
Max. inlet pressure (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
80°C
label
Medium temperature (continuous) (imperial)
value
32°F - 176°F
label
Sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With pressure gauge
value
No
label
Suitable for liquids
value
No
label
Suitable for steam
value
No
label
Suitable for gases
value
No
