Gunmetal Stopvalve BS 1010

group: PL59A

The PL59A is a crutch top gunmetal stop valve with a copper compression end and a polyethylene compression end. By using Prestex in your piping system you can install in easy to use heat free system. Prestex provides a piping suitable for domestic and light commercial applications.
  • No need for use of naked flames
  • Can be used on wet pipework
  • Joints can be dismounted without adversely affecting performance
  • Provided with all relevant approvals
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    504059

    size

    32x28

    dimensions

    130x60x140 mm

    weight

    1.33 kg

    packaging

    unpackaged (1 pce)

    gtin

    05013866016035

    item number

    size

    d1

    DN1

    l1

    z1

    slw1

    d2

    DN2

    l2

    z2

    slw2

    M1

    M2

    Y

    V

    U

    D1

    a

    item number

    504059

    size

    32x28

    d1

    28.0

    DN1

    DN25

    l1

    62

    z1

    36

    slw1

    42

    d2

    28.0

    DN2

    DN32

    l2

    71

    z2

    33

    slw2

    31

    M1

    34

    M2

    34

    Y

    19

    V

    78

    U

    55

    D1

    32

    a

    90

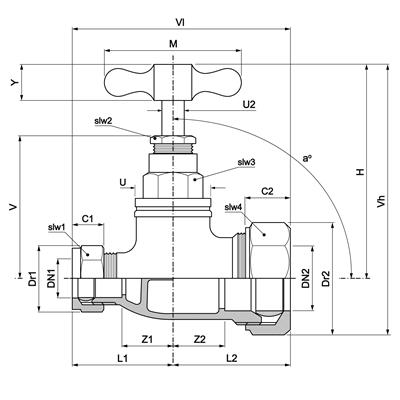

    technical drawing for product

    characteristics

    color

    bronze

    materials

    bronze (EN CC499K)

    finishing

    none

    shape

    straight

    connection type

    compression

    pressure rating (PN)

    PN 16

    sealing

    EPDM, NBR (Nitrile)

    general

    product group

    valves

    HS code

    84818099

    brand

    Pegler

    series

    Prestex Stop valve

    product type

    PL59A

    UNSPS

    40141613

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    30 °C

    max medium temperature

    120 °C

    peak medium temperature

    120 °C

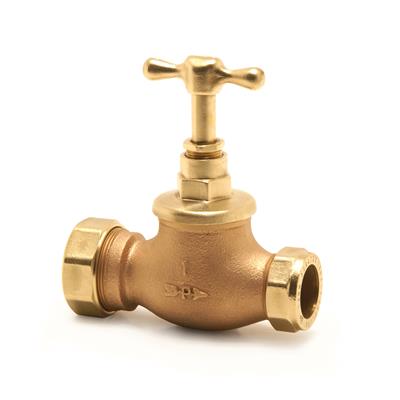

    image for PL59A

    image | jpg

    PL59A

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    Pegler Stop valves BSI Kitemark
