Push Fit Elbow Connector

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

7p1010

size

10x1/2

dimensions

10x35x50 mm

weight

0.06 kg

packaging

bag (10 pce)

gtin

05022050260857

item number

7p1012

size

15x1/2

dimensions

15x25x55 mm

weight

0.06 kg

packaging

bag (10 pce)

gtin

05022050263070

item number

size

item number

7p1010

size

10x1/2

item number

7p1012

size

15x1/2

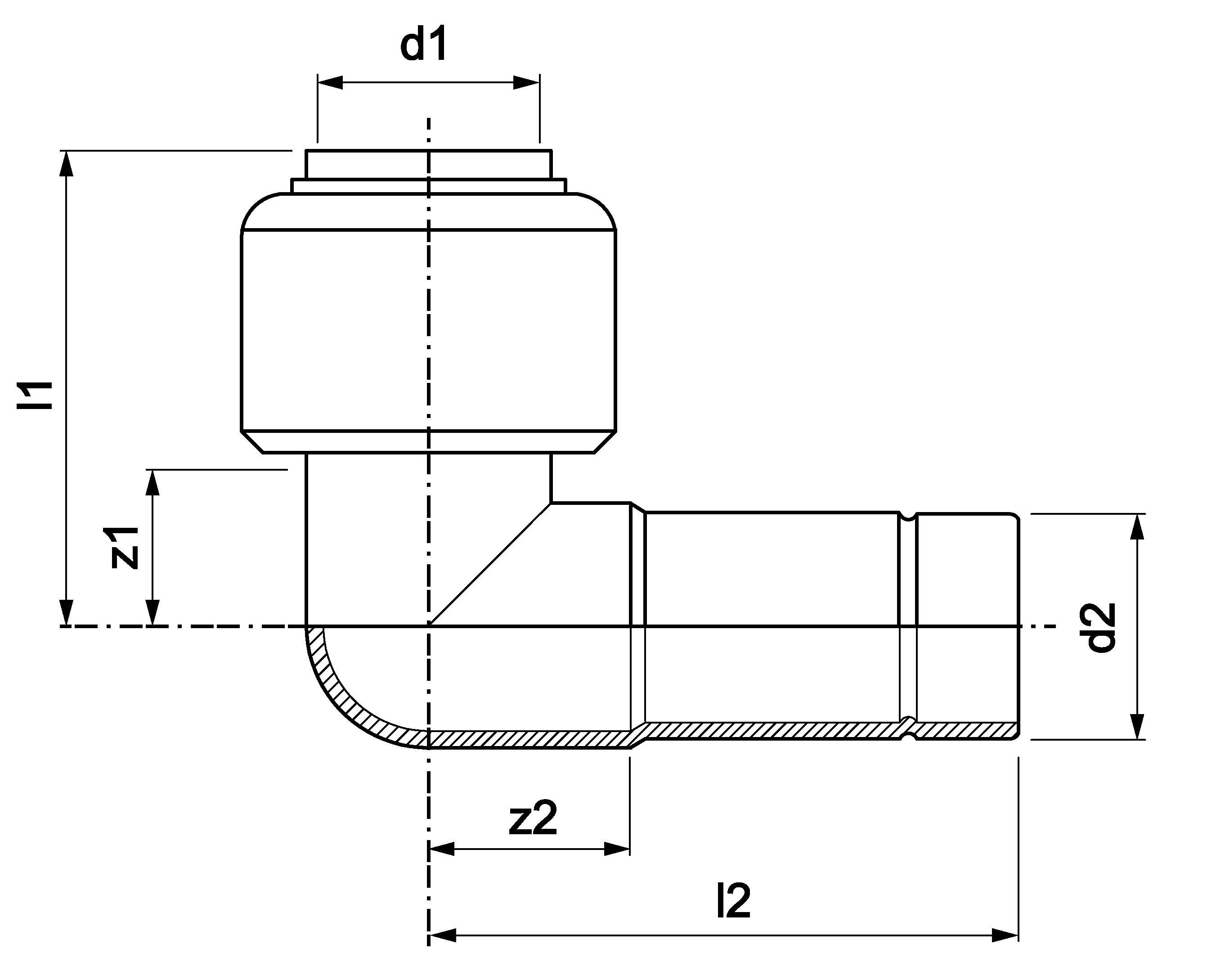

technical drawing for product

characteristics

materials

shape

Elbow

connection type

push

general

product group

radiator valves (accessories (radiator valves))

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Terrier Domestic

product type

PFE

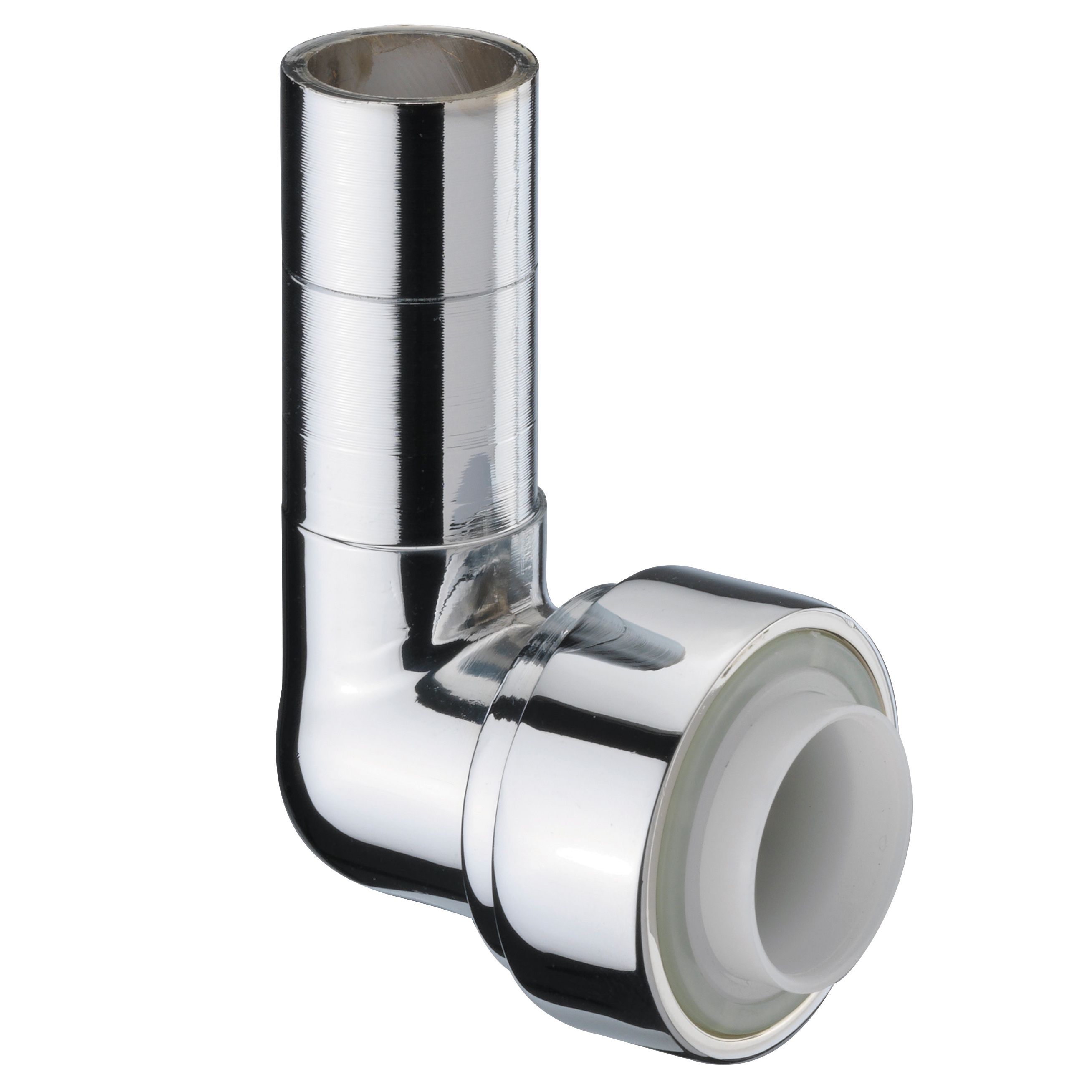

image for Push_Fit_Elbow_Connector

image | jpg

Push_Fit_Elbow_Connector

image for Diagram

diagram | png

Diagram

label

value

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Insert (push-fitting)

label

With buffer stud

value

No

label

Capped

value

No

label

With drain valve

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

7p1010

carbon footprint (A-C) embodied carbon

0.22kgCO2e

data source

TM65

item number

7p1012

carbon footprint (A-C) embodied carbon

0.24kgCO2e

data source

TM65
