Water Hammer Arrestor

group: PEG62

The PEG62 is a water hammer arrestor with a male tapered thread end
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

5a2080

size

R1/2

dimensions

50x100x60 mm

weight

0.48 kg

packaging

-

gtin

05022050390547

item number

size

item number

5a2080

size

R1/2

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

End coupling

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 16

sealing

NBR (Nitrile)

general

product group

valves (safety relief valves)

ETIM class

EC010600 Water hammer damper

HS code

84818099

brand

Pegler

series

Pressure Reducing Valve

product type

PEG62

UNSPS

40141763

technical

max operating pressure liquid

16 bar

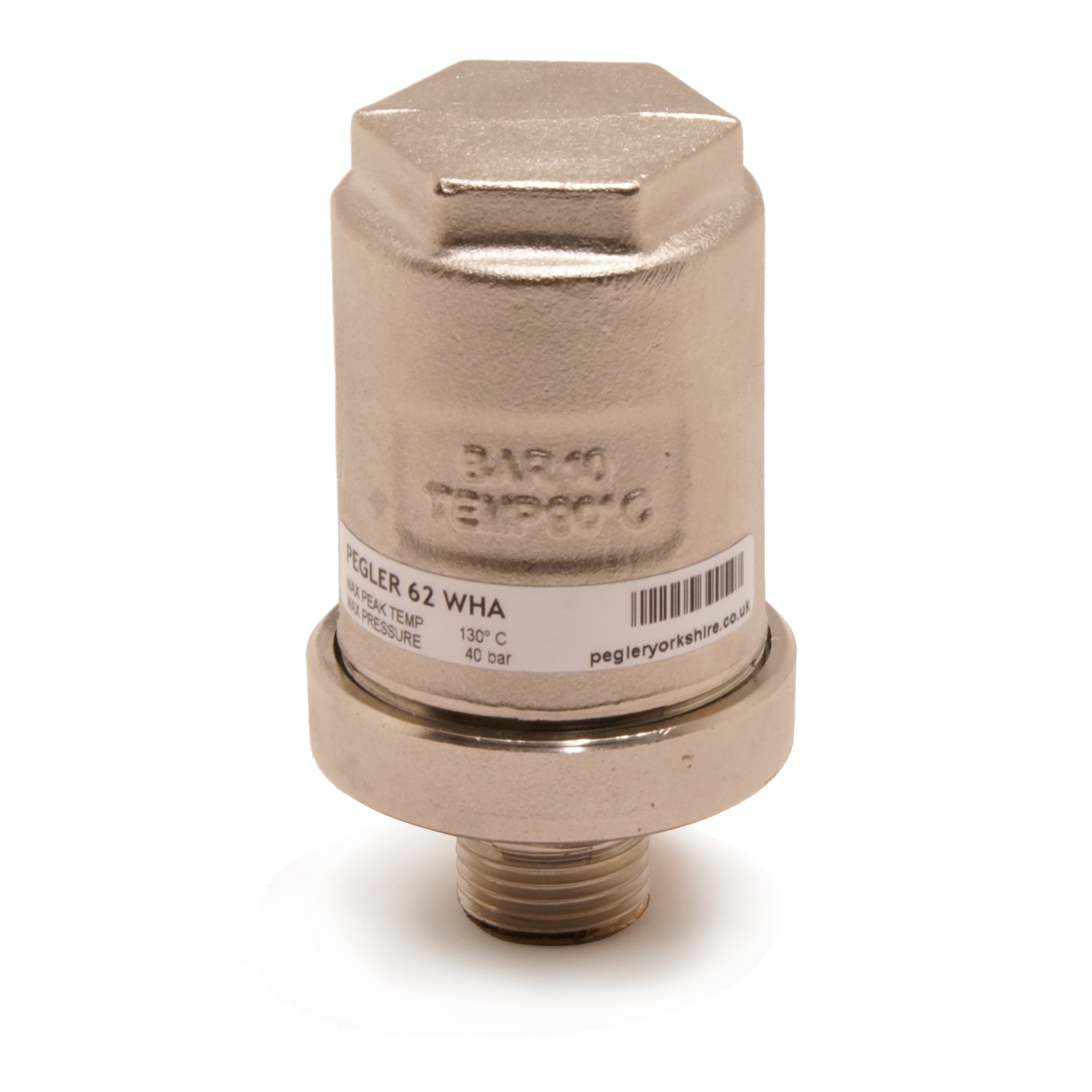

image for PEG62_Water_Hammer_Arrestor

image | jpg

PEG62_Water_Hammer_Arrestor

label

value

label

ETIM class

label

Connection

value

External thread cylindrical BSPP-G (ISO 228-1)

label

Max. operating pressure

value

16bar

label

Max. operating pressure (imperial)

value

232.06psi

label

Height

value

60mm

item number

carbon footprint (A-C) embodied carbon

data source

item number

5a2080

carbon footprint (A-C) embodied carbon

2.33kgCO2e

data source

TM65
