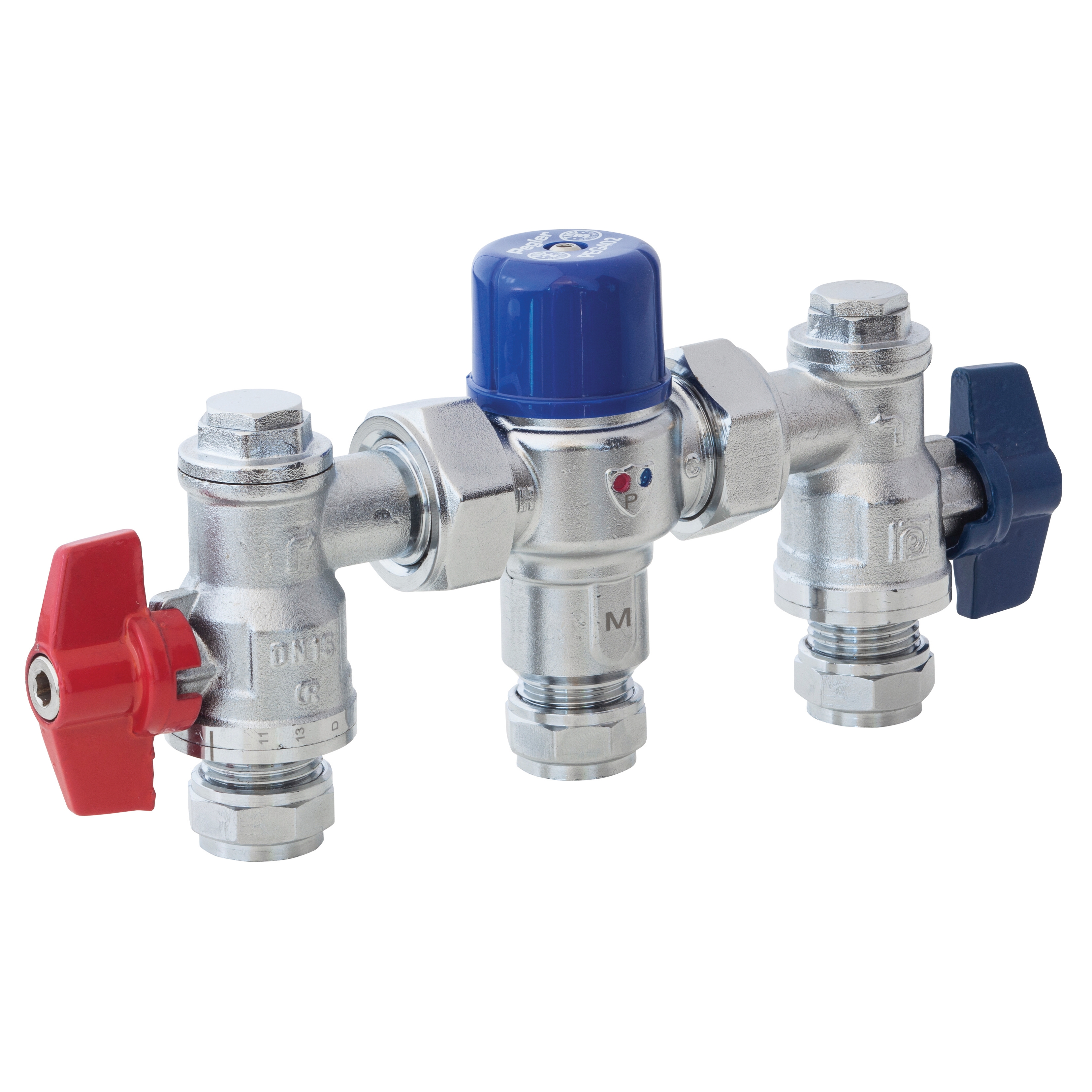

Thermostatic Mixing Valve

group: PEG402UA

The PEG402UA is an anti-scald thermostatic mixing valve complete with Prestex compression connections which combines high quality manufacturing and top of the range performance with ease of installation and servicing. Pegler anti-scald TMV’s are the ideal choice for eliminating the risk of scalding in healthcare, public and educational buildings, commercial and domestic projects and are WRAS approved.

  • Simplicity of installation and servicing
  • Temperature pre-set to 43ºC, but easily adjustable on site
  • Simple to install and service
  • 15mm and 22mm sizes.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

NSF

NSF

WRAS

WRAS

item number

size

item number

5A1403

size

15

item number

5A1404

size

22

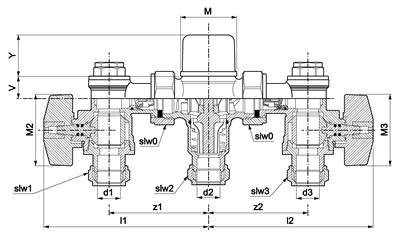

technical drawing for product

characteristics

color

chrome

materials

brass (CW602N (DZR))

finishing

chromed

shape

T-piece

connection type

compression, Compression

pressure rating (PN)

PN 12.5

sealing

EPDM

general

product group

valves (thermostatic valves)

HS code

84818051

brand

Pegler

series

TMV

product type

PEG402UA

UNSPS

40141604
