Pegler Ball Valve Yellow T-handle (2 x female thread)

group: PB700T

The PB700 is a chrome plated yellow T-handle ball valve with female parallel thread ends which is a compact, easy to operate, quarter turn ball valve.
  • PN40
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • T handle
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    natural gas

    natural gas

    heating

    heating

    steam

    steam

    compressed air

    compressed air

    hydrogen (H2)

    hydrogen (H2)

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    BSI Kitemark

    BSI Kitemark

    WRAS

    WRAS

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    231001

    size

    Rp1/4 (DN8) Cr

    dimensions

    50x15x48 mm

    weight

    0.14 kg

    packaging

    box (10 pce)

    gtin

    05013866010835

    item number

    231003

    size

    Rp1/2 (DN15) Cr

    dimensions

    59x25x55 mm

    weight

    0.22 kg

    packaging

    box (10 pce)

    gtin

    05013866010859

    item number

    231004

    size

    Rp3/4 (DN20) Cr

    dimensions

    70x35x68 mm

    weight

    0.41 kg

    packaging

    unpackaged (1 pce)

    gtin

    05013866029110

    item number

    231005

    size

    Rp1 (DN25) Cr

    dimensions

    80x50x80 mm

    weight

    0.63 kg

    packaging

    unpackaged (1 pce)

    gtin

    05013866029127

    item number

    size

    DN1

    l1

    z1

    slw1

    DN2

    l2

    z2

    slw2

    M1

    M2

    H

    h2

    Y

    V

    U

    a

    item number

    231001

    size

    Rp1/4 (DN8) Cr

    DN1

    1/4" (DN8)

    l1

    24

    z1

    14

    slw1

    23

    DN2

    1/4" (DN8)

    l2

    24

    z2

    14

    slw2

    23

    M1

    25

    M2

    25

    H

    38

    h2

    18

    Y

    18

    V

    16

    U

    9

    a

    90

    item number

    231003

    size

    Rp1/2 (DN15) Cr

    DN1

    1/2" (DN15)

    l1

    30

    z1

    18

    slw1

    31

    DN2

    1/2" (DN15)

    l2

    30

    z2

    18

    slw2

    31

    M1

    25

    M2

    25

    H

    41

    h2

    18

    Y

    18

    V

    20

    U

    10

    a

    90

    item number

    231004

    size

    Rp3/4 (DN20) Cr

    DN1

    3/4" (DN20)

    l1

    34

    z1

    20

    slw1

    37

    DN2

    3/4" (DN20)

    l2

    34

    z2

    20

    slw2

    37

    M1

    25

    M2

    25

    H

    52

    h2

    18

    Y

    18

    V

    31

    U

    11

    a

    90

    item number

    231005

    size

    Rp1 (DN25) Cr

    DN1

    1" (DN25)

    l1

    40

    z1

    24

    slw1

    43

    DN2

    1" (DN25)

    l2

    40

    z2

    24

    slw2

    43

    M1

    25

    M2

    25

    H

    56

    h2

    19

    Y

    18

    V

    35

    U

    11

    a

    90

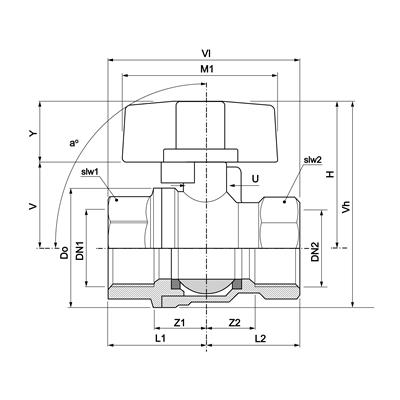

    technical drawing for product

    characteristics

    color

    chrome

    materials

    brass (CW617N)

    finishing

    chromed

    shape

    straight (0º)

    connection type

    Rc - female thread gas conical (BSPT)

    pressure rating (PN)

    PN 40

    sealing

    PTFE

    general

    product group

    valves (ball valves)

    ETIM class

    EC011343 Ball valve

    HS code

    84818081

    brand

    Pegler

    series

    Ball Valve

    product type

    PB700T

    UNSPS

    40141607

    technical

    max operating pressure liquid

    40 bar

    min. medium temperature

    -10 °C

    max medium temperature

    110 °C

    peak medium temperature

    186 °C

    Kvs-value

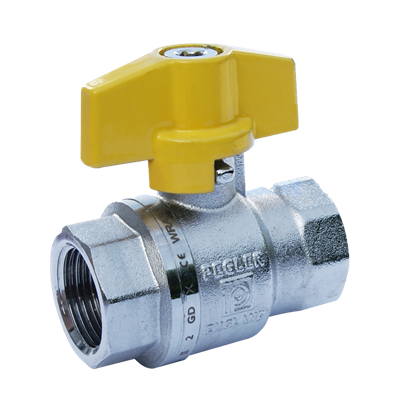

    image for PB700T_Yellow

    image | png

    PB700T_Yellow

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    CNF_803437_001

    certifications | pdf

    Pegler Ball Valve BSI

    certifications | pdf

    TM65 Embodied Carbon Declaration

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn40Pb2 (CW617N)

    label

    Surface protection housing

    value

    Chromium-plated

    label

    Material ball seal

    value

    Polytetrafluoroethylene (PTFE)

    label

    Material ball

    value

    Brass

    label

    Material spindle

    value

    Brass

    label

    Material primary spindle seal

    value

    Fluorelastomer rubber (FPM/FKM)

    label

    Connection 1

    value

    Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

    label

    With coupling connection 1

    value

    No

    label

    Connection 2

    value

    Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

    label

    With coupling connection 2

    value

    No

    label

    Sealing

    value

    Polytetrafluoroethylene (PTFE)

    label

    Article compression class

    value

    PN 40

    label

    Flange compression class

    value

    PN 40

    label

    With drain valve

    value

    No

    label

    With drain possibility (connection)

    value

    No

    label

    With non-return valve

    value

    No

    label

    With filter

    value

    No

    label

    With thermometer

    value

    No

    label

    Model

    value

    Straight

    label

    With insulation shell

    value

    No

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    -10°C - 110°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 230°F

    label

    Medically clean

    value

    No

    label

    Grease-free

    value

    No

    label

    Operation

    value

    T-handle

    label

    Housing construction

    value

    1-part

    label

    Full bore

    value

    Yes

    label

    Handle height

    value

    18mm

    label

    Handle height (imperial)

    value

    0.71"

    label

    Handgrip length

    value

    25mm

    label

    Handgrip length (imperial)

    value

    0.98"

    label

    Angle of the valve

    value

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    231001

    carbon footprint (A-C) embodied carbon

    0.98kgCO2e

    data source

    TM65

    item number

    231003

    carbon footprint (A-C) embodied carbon

    1.33kgCO2e

    data source

    TM65

    item number

    231004

    carbon footprint (A-C) embodied carbon

    2.81kgCO2e

    data source

    TM65

    item number

    231005

    carbon footprint (A-C) embodied carbon

    3.6kgCO2e

    data source

    TM65
