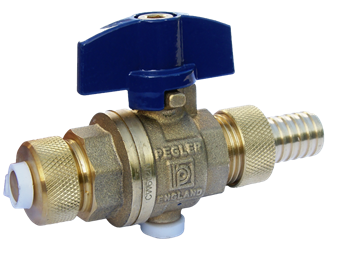

Pegler Ball Valve Drain with Hose and Cap

group: PB60

The PB60 is a DZR T-handle drain ball valve with a capped male parallel thread end and a hose connection which is a compact, easy to operate, quarter turn ball valve.

  • PN10
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • T-handle
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

approvals

no approvals available

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

M1

M2

Y

V

U

a

item number

254230

size

Rp1/2x15 (DN15)

d1

20.0

DN1

DN15

l1

62

z1

37

slw1

5

d2

20.0

DN2

DN15

l2

33

z2

22

M1

24

M2

24

Y

22

V

24

U

11

a

90

item number

254231

size

Rp3/4x15 (DN20)

d1

25.0

DN1

DN20

l1

68

z1

43

slw1

5

d2

25.0

DN2

DN20

l2

42

z2

28

M1

30

M2

30

Y

29

V

27

U

13

a

90

item number

254232

size

Rp1x15 (DN25)

d1

32.0

DN1

DN25

l1

77

z1

52

slw1

5

d2

32.0

DN2

DN25

l2

53

z2

37

M1

30

M2

30

Y

29

V

30

U

14

a

90

item number

size

V

U

a

Rp1/2x15 (DN15)

24

11

90

Rp3/4x15 (DN20)

27

13

90

Rp1x15 (DN25)

30

14

90

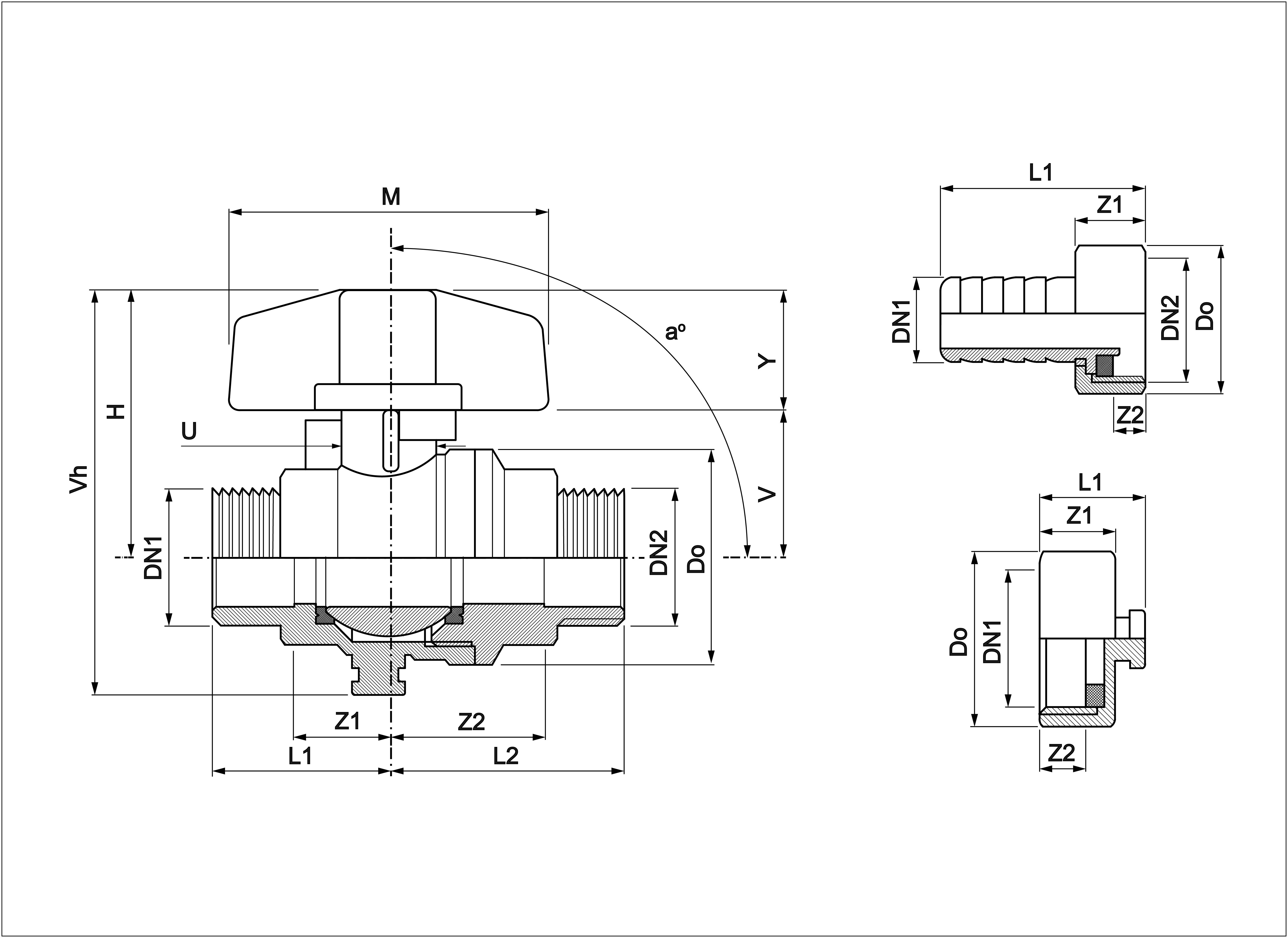

technical drawing for product

characteristics

color

brass

materials

brass (CW602N (DZR))

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

R - male thread gas conical (BSPT), hose connector

pressure rating (PN)

PN 10

sealing

FPM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

brand

Pegler

series

Ball Valve

product type

PB60

UNSPS

40141607

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn36Pb2As (CW602N)

label

Surface protection housing

value

None

label

Material ball seal

value

Polytetrafluoroethylene (PTFE)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Fluorelastomer rubber (FPM/FKM)

label

Connection 1

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Hose pillar

label

With coupling connection 2

value

No

label

Article compression class

value

PN 10

label

Flange compression class

value

PN 10

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 150°C

label

Medium temperature (continuous) (imperial)

value

14°F - 302°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

T-handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
