Pegler Double Ball Valve with Strainer and Red Handle (2 x female thread)

group: PB560Red

The PB560 is a combi T-handle ball valve with a strainer and female parallel thread ends which is a compact, easy to operate, with quarter turn ball valves.
  • PN20
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • T-handles
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    no approvals available

    item number

    size

    DN1

    l1

    z1

    slw1

    DN2

    l2

    z2

    slw2

    M1

    M2

    H

    Y

    V

    U

    a

    item number

    245501

    size

    G3/4 (DN20)

    DN1

    3/4" (DN20)

    l1

    30

    z1

    15

    slw1

    32

    DN2

    3/4" (DN20)

    l2

    30

    z2

    15

    slw2

    32

    M1

    59

    M2

    59

    H

    52

    Y

    30

    V

    22

    U

    23

    a

    90

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW602N (DZR))

    finishing

    none

    shape

    straight (0º)

    connection type

    G - female thread gas cylindrical (BSPP)

    pressure rating (PN)

    PN 20

    sealing

    FPM, PTFE

    general

    product group

    valves (ball valves)

    ETIM class

    EC011343 Ball valve

    HS code

    84818081

    brand

    Pegler

    series

    Ball Valve

    product type

    PB560Red

    UNSPS

    40141607

    technical

    max operating pressure liquid

    20 bar

    min. medium temperature

    -10 °C

    max medium temperature

    150 °C

    peak medium temperature

    150 °C

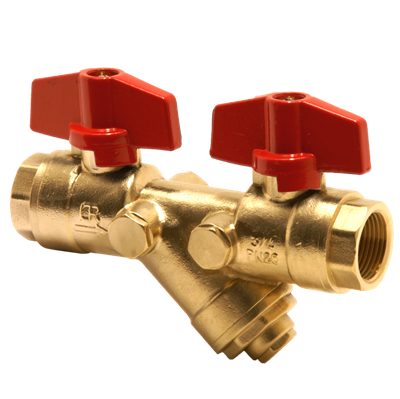

    image for PB560_red

    image | png

    PB560_red

    image for Diagram

    diagram | jpg

    Diagram

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn36Pb2As (CW602N)

    label

    Surface protection housing

    value

    None

    label

    Material ball seal

    value

    Polytetrafluoroethylene (PTFE)

    label

    Material ball

    value

    Brass

    label

    Material spindle

    value

    Brass

    label

    Material primary spindle seal

    value

    Fluorelastomer rubber (FPM/FKM)

    label

    Nominal diameter connection 1

    value

    3/4 inch (20)

    label

    Connection 1

    value

    Internal thread cylindrical BSPP-G (ISO 228-1)

    label

    With coupling connection 1

    value

    No

    label

    Nominal diameter connection 2

    value

    3/4 inch (20)

    label

    Connection 2

    value

    Internal thread cylindrical BSPP-G (ISO 228-1)

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 20

    label

    With drain valve

    value

    No

    label

    With drain possibility (connection)

    value

    No

    label

    With non-return valve

    value

    No

    label

    With filter

    value

    No

    label

    With thermometer

    value

    No

    label

    Model

    value

    Straight

    label

    With insulation shell

    value

    No

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    -10°C - 150°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 302°F

    label

    Medically clean

    value

    No

    label

    Grease-free

    value

    No

    label

    Operation

    value

    T-handle

    label

    Housing construction

    value

    1-part

    label

    Full bore

    value

    Yes

    label

    Length of connection 1

    value

    30mm

    label

    Length of connection 1 (imperial)

    value

    1.18"

    label

    Working length connection 1

    value

    15mm

    label

    Working length connection 1 (imperial)

    value

    0.59"

    label

    Length of connection 2

    value

    30mm

    label

    Length of connection 2 (imperial)

    value

    1.18"

    label

    Working length connection 2

    value

    15mm

    label

    Working length connection 2 (imperial)

    value

    0.59"

    label

    Handle height

    value

    30mm

    label

    Handle height (imperial)

    value

    1.18"

    label

    Handgrip length

    value

    59mm

    label

    Handgrip length (imperial)

    value

    2.32"

    label

    Angle of the valve

    value

    label

    Wrench width union nut

    value

    32mm

    label

    Wrench width union nut (imperial)

    value

    1.26"

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No
