PB52HU Chromium Plated Hose Union Ball Type Bibtap

group: PB52HU

The PB52HU is a chrome plated lever handle ball valve with a hose end which is a compact, easy to operate, quarter turn ball valve with a male threaded union nut connection.
  • PN16
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • Lever handle
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    non-potable water

    non-potable water

    segments

    commercial building

    commercial building

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    262021

    size

    G1/2 (DN15) Cr

    dimensions

    160x20x60 mm

    weight

    0.29 kg

    packaging

    -

    gtin

    05013866047091

    item number

    262022

    size

    G3/4 (DN20) Cr

    dimensions

    150x30x100 mm

    weight

    0.35 kg

    packaging

    -

    gtin

    05013866047107

    item number

    size

    DN1

    l1

    z1

    slw1

    DN2

    l2

    M1

    M2

    E

    H

    Y

    V

    U

    a

    item number

    262021

    size

    G1/2 (DN15) Cr

    DN1

    1/2" (DN15)

    l1

    37

    z1

    38

    slw1

    24

    DN2

    DN15

    l2

    65

    M1

    15

    M2

    81

    E

    20

    H

    44

    Y

    25

    V

    19

    U

    12

    a

    90

    item number

    262022

    size

    G3/4 (DN20) Cr

    DN1

    3/4" (DN20)

    l1

    38

    z1

    40

    slw1

    27

    DN2

    DN20

    l2

    65

    M1

    15

    M2

    81

    E

    20

    H

    44

    Y

    25

    V

    19

    U

    12

    a

    90

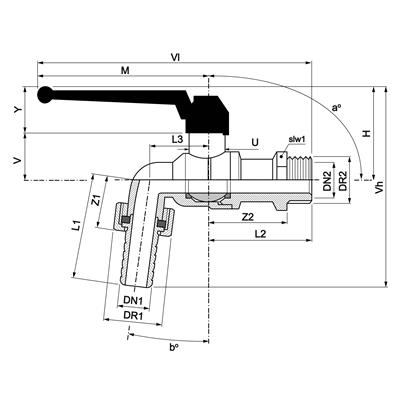

    technical drawing for product

    characteristics

    color

    chrome

    materials

    brass (CW617N)

    finishing

    chromed

    shape

    straight

    connection type

    G - male thread gas cylindrical (BSPP), hose connector

    pressure rating (PN)

    PN 25

    sealing

    NBR (Nitrile), PTFE

    general

    product group

    taps (ball valves, taps)

    ETIM class

    EC011343 Ball valve

    HS code

    84818081

    brand

    Pegler

    series

    Ball Valve

    product type

    PB52HU

    UNSPS

    40141607

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    60 °C

    max medium temperature

    100 °C

    peak medium temperature

    100 °C

    Kvs-value

    value depends on the item view items

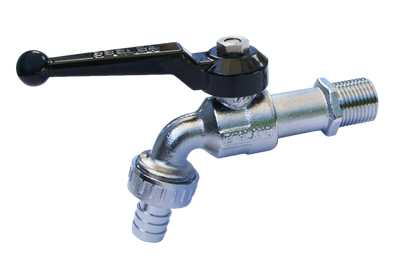

    image for PB52HU

    image | png

    PB52HU

    image for Diagram

    diagram | jpg

    Diagram

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn40Pb2 (CW617N)

    label

    Surface protection housing

    value

    Chromium-plated

    label

    Material ball seal

    value

    Polytetrafluoroethylene (PTFE)

    label

    Material ball

    value

    Brass

    label

    Material spindle

    value

    Brass

    label

    Material primary spindle seal

    value

    NBR (nitrile rubber)

    label

    Connection 1

    value

    External thread cylindrical BSPP-G (ISO 228-1)

    label

    With coupling connection 1

    value

    No

    label

    Connection 2

    value

    Hose pillar

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 25

    label

    Flange compression class

    value

    PN 25

    label

    With drain valve

    value

    No

    label

    With drain possibility (connection)

    value

    No

    label

    With non-return valve

    value

    No

    label

    With filter

    value

    No

    label

    With thermometer

    value

    No

    label

    Model

    value

    Straight

    label

    With insulation shell

    value

    No

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    60°C - 100°C

    label

    Medium temperature (continuous) (imperial)

    value

    140°F - 212°F

    label

    Medically clean

    value

    No

    label

    Grease-free

    value

    No

    label

    Operation

    value

    Lever handle

    label

    Housing construction

    value

    1-part

    label

    Full bore

    value

    Yes

    label

    Length of connection 2

    value

    65mm

    label

    Length of connection 2 (imperial)

    value

    2.56"

    label

    Handle height

    value

    25mm

    label

    Handle height (imperial)

    value

    0.98"

    label

    Handgrip length

    value

    15mm

    label

    Handgrip length (imperial)

    value

    0.59"

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No
