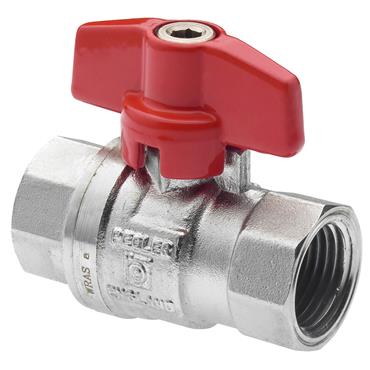

Pegler ball valve with T-handle (2 x female thread)

group: PB500TPT

The PB500 valve is a compact, easy to operate, quarter turn ball valves in the Pegler range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids or gases in pipe lines.
  • PN25
  • full bore
  • blow-out and vandalproof assembly
  • PTFE seats
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

NSF

NSF

UK water regulation 4

UK water regulation 4

item number

size

dimensions

weight

packaging

gtin

item number

243025

size

G1 (DN25) Cr

dimensions

83x56x80 mm

weight

0.62 kg

packaging

bag (1 pce)

gtin

05013866029721

item number

243023

size

G1/2 (DN15) Cr

dimensions

60x41x59 mm

weight

0.2 kg

packaging

bag (1 pce)

gtin

05013866029707

item number

243021

size

G1/4 (DN8) Cr

dimensions

52x41x50 mm

weight

0.15 kg

packaging

box (10 pce)

gtin

05022050248336

item number

243022

size

G3/8 (DN10) Cr

dimensions

53x41x50 mm

weight

0.15 kg

packaging

box (10 pce)

gtin

05022050253705

item number

243024

size

G3/4 (DN20) Cr

dimensions

75x48x68 mm

weight

0.41 kg

packaging

bag (1 pce)

gtin

05013866029714

item number

size

DN1

l1

z1

slw1

DN2

l2

z2

slw2

M

H

Y

V

U

a

item number

243025

size

G1 (DN25) Cr

DN1

1" (DN25)

l1

40

z1

24

slw1

43

DN2

1" (DN25)

l2

40

z2

24

slw2

43

M

50

H

56

Y

18

V

35

U

11

a

90

item number

243023

size

G1/2 (DN15) Cr

DN1

1/2" (DN15)

l1

30

z1

18

slw1

31

DN2

1/2" (DN15)

l2

30

z2

18

slw2

31

M

50

H

41

Y

18

V

20

U

10

a

90

item number

243021

size

G1/4 (DN8) Cr

DN1

1/4" (DN8)

l1

24

z1

14

slw1

23

DN2

1/4" (DN8)

l2

24

z2

14

slw2

23

M

50

H

38

Y

18

V

16

U

9

a

90

item number

243022

size

G3/8 (DN10) Cr

DN1

3/8" (DN10)

l1

24

z1

15

slw1

25

DN2

3/8" (DN10)

l2

24

z2

15

slw2

25

M

50

H

38

Y

18

V

16

U

9

a

90

item number

243024

size

G3/4 (DN20) Cr

DN1

3/4" (DN20)

l1

34

z1

20

slw1

37

DN2

3/4" (DN20)

l2

34

z2

20

slw2

37

M

50

H

52

Y

18

V

31

U

11

a

90

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

straight (0º)

connection type

G - female thread gas cylindrical (BSPP)

pressure rating (PN)

PN 25

sealing

FPM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

Pegler

series

Ball Valve

product type

PB500TPT

UNSPS

40141607

technical

max operating pressure liquid

25 bar

min. medium temperature

-10 °C

max medium temperature

150 °C

peak medium temperature

150 °C

Kvs-value

value depends on the item view items

image for Diagram

diagram | jpg

Diagram

image for PB500T

image | png

PB500T

certifications | pdf

2401733 NSF REG4 Ball Valves (2)

image for PB500T_Chromium_Plated_Brass_Full_Bore_Ball_Valve_Red_T_Handle_PN25

image | jpg

PB500T_Chromium_Plated_Brass_Full_Bore_Ball_Valve_Red_T_Handle_PN25

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Chromium-plated

label

Material ball seal

value

Polytetrafluoroethylene (PTFE)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Fluorelastomer rubber (FPM/FKM)

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 25

label

Flange compression class

value

PN 25

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 150°C

label

Medium temperature (continuous) (imperial)

value

14°F - 302°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

T-handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Handle height

value

18mm

label

Handle height (imperial)

value

0.71"

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

243025

carbon footprint (A-C) embodied carbon

3.26kgCO2e

data source

TM65

item number

243023

carbon footprint (A-C) embodied carbon

1.18kgCO2e

data source

TM65

item number

243021

carbon footprint (A-C) embodied carbon

0.85kgCO2e

data source

TM65

item number

243022

carbon footprint (A-C) embodied carbon

0.87kgCO2e

data source

TM65

item number

243024

carbon footprint (A-C) embodied carbon

2.48kgCO2e

data source

TM65
