group: PB500MFT
potable water
heating
cooling
steam
compressed air
commercial building
industry
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
G1/2 (DN15) Cr
dimensions
62x33x57 mm
weight
0.2 kg
packaging
box (10 pce)
gtin
05022050330970
item number
size
G1 (DN25) Cr
dimensions
81x50x83 mm
weight
0.56 kg
packaging
box (5 pce)
gtin
05022050331151
item number
size
G3/8 (DN10) Cr
dimensions
53x25x49 mm
weight
0.14 kg
packaging
box (10 pce)
gtin
05022050330895
item number
size
G3/4 (DN20) Cr
dimensions
70x42x74 mm
weight
0.36 kg
packaging
box (10 pce)
gtin
05022050331076

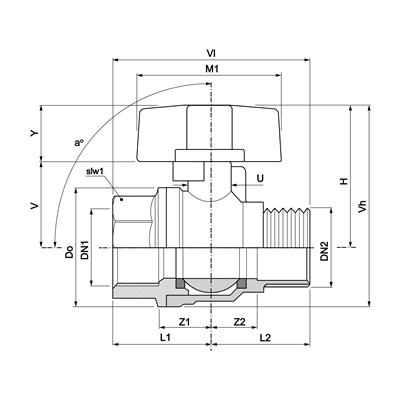

item number
size
DN1
l1
z1
slw1
DN2
l2
z2
M
H
Y
V
U
a
item number
242161size
G1/2 (DN15) Cr
DN1
1/2" (DN15)
l1
30
z1
18
slw1
31
DN2
1/2" (DN15)
l2
30
z2
18
M
50
H
41
Y
18
V
20
U
10
a
90
item number
242163size
G1 (DN25) Cr
DN1
1" (DN25)
l1
40
z1
24
slw1
42
DN2
1" (DN25)
l2
40
z2
24
M
50
H
56
Y
18
V
35
U
11
a
90
item number
242160size
G3/8 (DN10) Cr
DN1
3/8" (DN10)
l1
24
z1
15
slw1
25
DN2
3/8" (DN10)
l2
24
z2
15
M
50
H
38
Y
18
V
16
U
9
a
90
item number
242162size
G3/4 (DN20) Cr
DN1
3/4" (DN20)
l1
34
z1
20
slw1
36
DN2
3/4" (DN20)
l2
34
z2
20
M
50
H
52
Y
18
V
31
U
11
a
90
color
chrome
materials
brass (CW617N)
finishing
chromed
shape
straight (0º)
connection type
G - female thread gas cylindrical (BSPP), G - male thread gas cylindrical (BSPP)
pressure rating (PN)
PN 25
sealing
FPM, PTFE
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
HS code
84818081
brand
Pegler
series
Ball Valve
product type
PB500MFT
UNSPS
40141607
max operating pressure liquid
25 bar
min. medium temperature
-10 °C
max medium temperature
150 °C
peak medium temperature
150 °C
Kvs-value
value depends on the item view items
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
label
Surface protection housing
value
Chromium-plated
label
Material ball seal
value
Polytetrafluoroethylene (PTFE)
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Fluorelastomer rubber (FPM/FKM)
label
Connection 1
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
With coupling connection 1
value
No
label
Connection 2
value
External thread cylindrical BSPP-G (ISO 228-1)
label
With coupling connection 2
value
No
label
Article compression class
value
PN 25
label
Flange compression class
value
PN 25
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-10°C - 150°C
label
Medium temperature (continuous) (imperial)
value
14°F - 302°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
T-handle
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Handle height
value
18mm
label
Handle height (imperial)
value
0.71"
label
Angle of the valve
value
0°
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
