Pegler Ball valve (male x female thread)

group: PB500MF

The PB500 valve is a compact, easy to operate, quarter turn ball valves in the Pegler range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids or gases in pipe lines.
  • PN25
  • full bore
  • blow-out and vandalproof assembly
  • PTFE ball seals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

242151

size

G1/2 (DN15) Cr

dimensions

124x33x39 mm

weight

0.22 kg

packaging

box (10 pce)

gtin

05022050330468

item number

242152

size

G3/4 (DN20) Cr

dimensions

145x42x73 mm

weight

0.38 kg

packaging

box (10 pce)

gtin

05022050330536

item number

242153

size

G1 (DN25) Cr

dimensions

146x50x81 mm

weight

0.57 kg

packaging

box (5 pce)

gtin

05022050031136

item number

242154

size

G1 1/4 (DN32) Cr

dimensions

154x64x95 mm

weight

0.89 kg

packaging

box (5 pce)

gtin

05022050330642

item number

242155

size

G1 1/2 (DN40) Cr

dimensions

216x74x116 mm

weight

1.27 kg

packaging

box (2 pce)

gtin

05022050330734

item number

242156

size

G2 (DN50) Cr

dimensions

228x91x132 mm

weight

2.07 kg

packaging

box (2 pce)

gtin

05022050330826

item number

size

DN1

l1

z1

slw1

DN2

l2

z2

M1

M2

H

h2

Y

V

U

a

item number

242151

size

G1/2 (DN15) Cr

DN1

1/2" (DN15)

l1

30

z1

18

slw1

31

DN2

1/2" (DN15)

l2

30

z2

18

M1

10

M2

94

H

41

h2

18

Y

21

V

20

U

10

a

90

item number

242152

size

G3/4 (DN20) Cr

DN1

3/4" (DN20)

l1

34

z1

20

slw1

36

DN2

3/4" (DN20)

l2

34

z2

20

M1

10

M2

103

H

52

h2

18

Y

21

V

31

U

11

a

90

item number

242153

size

G1 (DN25) Cr

DN1

1" (DN25)

l1

40

z1

24

slw1

42

DN2

1" (DN25)

l2

40

z2

24

M1

10

M2

115

H

57

h2

19

Y

22

V

35

U

11

a

90

item number

242154

size

G1 1/4 (DN32) Cr

DN1

1 1/4" (DN32)

l1

48

z1

29

slw1

50

DN2

1 1/4" (DN32)

l2

48

z2

29

M1

11

M2

130

H

64

h2

19

Y

22

V

42

U

12

a

90

item number

242155

size

G1 1/2 (DN40) Cr

DN1

1 1/2" (DN40)

l1

50

z1

30

slw1

60

DN2

1 1/2" (DN40)

l2

50

z2

30

M1

11

M2

135

H

80

h2

20

Y

23

V

57

U

13

a

90

item number

242156

size

G2 (DN50) Cr

DN1

2" (DN50)

l1

62

z1

37

slw1

71

DN2

2" (DN50)

l2

62

z2

37

M1

12

M2

159

H

90

h2

20

Y

23

V

67

U

15

a

90

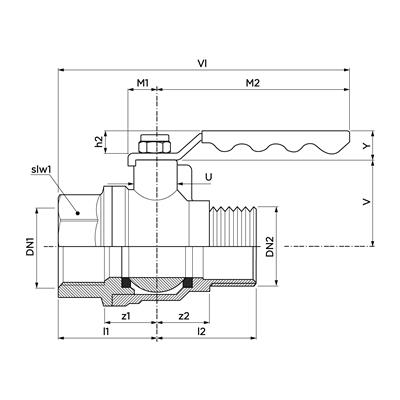

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

straight (0º)

connection type

G - female thread gas cylindrical (BSPP), G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 25

sealing

FPM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

Pegler

series

Ball Valve

product type

PB500MF

UNSPS

40141607

technical

max operating pressure liquid

25 bar

min. medium temperature

-10 °C

max medium temperature

150 °C

peak medium temperature

150 °C

Kvs-value

value depends on the item view items

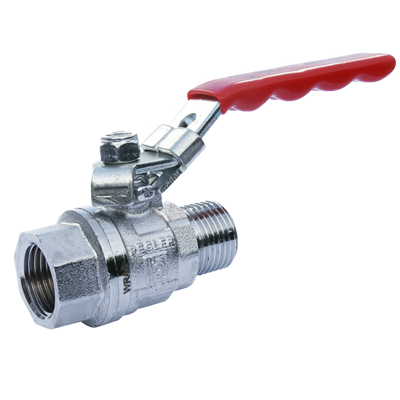

image for PB500MF

image | png

PB500MF

image for Diagram

diagram | jpg

Diagram

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Chromium-plated

label

Material ball seal

value

Polytetrafluoroethylene (PTFE)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Fluorelastomer rubber (FPM/FKM)

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 1

value

No

label

Connection 2

value

External thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 25

label

Flange compression class

value

PN 25

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 150°C

label

Medium temperature (continuous) (imperial)

value

14°F - 302°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Lever handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

242151

carbon footprint (A-C) embodied carbon

1.2kgCO2e

data source

TM65

item number

242152

carbon footprint (A-C) embodied carbon

2.09kgCO2e

data source

TM65

item number

242153

carbon footprint (A-C) embodied carbon

2.8kgCO2e

data source

TM65

item number

242154

carbon footprint (A-C) embodied carbon

4.52kgCO2e

data source

TM65

item number

242155

carbon footprint (A-C) embodied carbon

6.41kgCO2e

data source

TM65

item number

242156

carbon footprint (A-C) embodied carbon

10.13kgCO2e

data source

TM65
