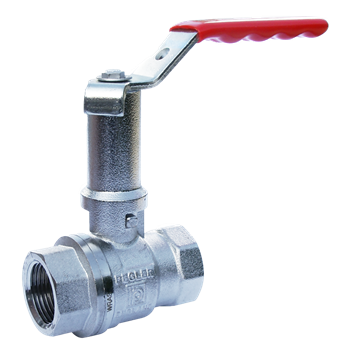

Pegler Ball valve with extended stem (2 x female thread)

group: PB500EL

The PB500EL valve is a compact, easy to operate, quarter turn ball valves in the Pegler range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids or gases in pipe lines.
  • PN25
  • full bore
  • blow-out and vandalproof assembly
  • PTFE ball seals
  • Handle with locking device
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

item number

size

DN1

l1

z1

slw1

DN2

l2

z2

slw2

M1

M2

E

H

h2

Y

V

U

a

item number

245007

size

Rp1 1/2 (DN40) Cr

DN1

1 1/2" (DN40)

l1

50

z1

30

slw1

60

DN2

1 1/2" (DN40)

l2

50

z2

30

slw2

60

M1

13

M2

135

E

25

H

130

h2

20

Y

23

V

107

U

13

a

90

item number

245004

size

Rp3/4 (DN20) Cr

DN1

3/4" (DN20)

l1

34

z1

20

slw1

36

DN2

3/4" (DN20)

l2

34

z2

20

slw2

36

M1

12

M2

103

E

24

H

99

h2

18

Y

22

V

78

U

11

a

90

item number

245003

size

Rp1/2 (DN15) Cr

DN1

1/2" (DN15)

l1

30

z1

18

slw1

31

DN2

1/2" (DN15)

l2

30

z2

18

slw2

31

M1

12

M2

94

E

24

H

80

h2

18

Y

21

V

59

U

10

a

90

item number

245005

size

Rp1 (DN25) Cr

DN1

1" (DN25)

l1

40

z1

24

slw1

42

DN2

1" (DN25)

l2

40

z2

24

slw2

42

M1

12

M2

115

E

25

H

103

h2

19

Y

22

V

81

U

11

a

90

item number

245006

size

Rp1 1/4 (DN32) Cr

DN1

1 1/4" (DN32)

l1

48

z1

29

slw1

50

DN2

1 1/4" (DN32)

l2

48

z2

29

slw2

50

M1

13

M2

130

E

25

H

110

h2

19

Y

23

V

88

U

12

a

90

item number

245008

size

Rp2 (DN50) Cr

DN1

2" (DN50)

l1

62

z1

37

slw1

71

DN2

2" (DN50)

l2

62

z2

37

slw2

71

M1

14

M2

159

E

25

H

148

h2

20

Y

23

V

125

U

15

a

90

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

straight (0º)

connection type

Rc - female thread gas conical (BSPT)

pressure rating (PN)

PN 25

sealing

FPM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

Pegler

series

Ball Valve

product type

PB500EL

UNSPS

40141607

technical

max operating pressure liquid

25 bar

min. medium temperature

-10 °C

max medium temperature

150 °C

peak medium temperature

150 °C

Kvs-value

value depends on the item view items

image for PB500EL

image | png

PB500EL

image for Diagram

diagram | jpg

Diagram

certifications | pdf

WRAS Certificate 1904014_PB Ball Valves

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Chromium-plated

label

Material ball seal

value

Polytetrafluoroethylene (PTFE)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Fluorelastomer rubber (FPM/FKM)

label

Connection 1

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 25

label

Flange compression class

value

PN 25

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 150°C

label

Medium temperature (continuous) (imperial)

value

14°F - 302°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Lever handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

245007

carbon footprint (A-C) embodied carbon

6.7kgCO2e

data source

TM65

item number

245004

carbon footprint (A-C) embodied carbon

2.41kgCO2e

data source

TM65

item number

245003

carbon footprint (A-C) embodied carbon

1.39kgCO2e

data source

TM65

item number

245005

carbon footprint (A-C) embodied carbon

3.1kgCO2e

data source

TM65

item number

245006

carbon footprint (A-C) embodied carbon

4.56kgCO2e

data source

TM65

item number

245008

carbon footprint (A-C) embodied carbon

10.31kgCO2e

data source

TM65
