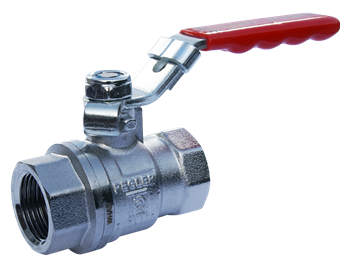

Pegler Ball valve PB500 Red Lever (2 x female thread)

group: PB500

The PB500 valve is a compact, easy to operate, quarter turn ball valves in the Pegler range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids or gases in pipe lines.
  • PN25
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • Handle with locking device
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

item number

size

DN1

l1

z1

slw1

DN2

l2

z2

slw2

M1

M2

E

H

h2

Y

V

U

a

item number

242001

size

Rp1/4 (DN8) Cr red

DN1

1/4" (DN8)

l1

24

z1

14

slw1

22

DN2

1/4" (DN8)

l2

24

z2

14

slw2

22

M1

9

M2

83

E

24

H

37

h2

18

Y

21

V

16

U

9

a

90

item number

242002

size

Rp3/8 (DN10) Cr red

DN1

3/8" (DN10)

l1

24

z1

15

slw1

25

DN2

3/8" (DN10)

l2

24

z2

15

slw2

25

M1

9

M2

84

E

24

H

37

h2

18

Y

21

V

16

U

9

a

90

item number

242003

size

Rp1/2 (DN15) Cr red

DN1

1/2" (DN15)

l1

30

z1

18

slw1

31

DN2

1/2" (DN15)

l2

30

z2

18

slw2

31

M1

10

M2

94

E

24

H

41

h2

18

Y

21

V

20

U

10

a

90

item number

242004

size

Rp3/4 (DN20) Cr red

DN1

3/4" (DN20)

l1

34

z1

20

slw1

36

DN2

3/4" (DN20)

l2

34

z2

20

slw2

36

M1

10

M2

103

E

24

H

52

h2

18

Y

21

V

31

U

11

a

90

item number

242005

size

Rp1 (DN25) Cr red

DN1

1" (DN25)

l1

40

z1

24

slw1

42

DN2

1" (DN25)

l2

40

z2

24

slw2

42

M1

10

M2

115

E

25

H

57

h2

19

Y

22

V

35

U

11

a

90

item number

242006

size

Rp1 1/4 (DN32) Cr red

DN1

1 1/4" (DN32)

l1

48

z1

29

slw1

50

DN2

1 1/4" (DN32)

l2

48

z2

29

slw2

50

M1

11

M2

130

E

25

H

64

h2

19

Y

22

V

42

U

12

a

90

item number

242007

size

Rp1 1/2 (DN40) Cr red

DN1

1 1/2" (DN40)

l1

50

z1

30

slw1

60

DN2

1 1/2" (DN40)

l2

50

z2

30

slw2

60

M1

11

M2

135

E

25

H

80

h2

20

Y

23

V

57

U

13

a

90

item number

242008

size

Rp2 (DN50) Cr red

DN1

2" (DN50)

l1

62

z1

37

slw1

71

DN2

2" (DN50)

l2

62

z2

37

slw2

71

M1

12

M2

159

E

25

H

90

h2

20

Y

23

V

67

U

15

a

90

item number

242009

size

Rp2 1/2 (DN65) Cr red

DN1

2 1/2" (DN65)

l1

75

z1

45

slw1

89

DN2

2 1/2" (DN65)

l2

75

z2

45

slw2

89

M1

13

M2

185

E

27

H

99

h2

21

Y

24

V

75

U

17

a

90

item number

242010

size

Rp3 (DN80) Cr red

DN1

3" (DN80)

l1

89

z1

53

slw1

107

DN2

3" (DN80)

l2

89

z2

53

slw2

107

M1

14

M2

212

E

28

H

124

h2

22

Y

25

V

99

U

19

a

90

item number

242011

size

Rp4 (DN100) Cr red

DN1

4" (DN100)

l1

107

z1

64

slw1

130

DN2

4" (DN100)

l2

107

z2

64

slw2

130

M1

15

M2

249

E

30

H

138

h2

24

Y

27

V

111

U

21

a

90

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

straight (0º)

connection type

Rc - female thread gas conical (BSPT)

pressure rating (PN)

PN 25

sealing

FPM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

Pegler

series

Ball Valve

product type

PB500

UNSPS

40141607

technical

max operating pressure liquid

25 bar

min. medium temperature

-10 °C

max medium temperature

150 °C

peak medium temperature

150 °C

Kvs-value

value depends on the item view items

image for Diagram

diagram | jpg

Diagram

image for PB500

image | png

PB500

Other document | pdf

Pegler Valve Installation Instructions

certifications | pdf

WRAS Certificate 1904014_PB Ball Valves

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Chromium-plated

label

Material ball seal

value

Polytetrafluoroethylene (PTFE)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Fluorelastomer rubber (FPM/FKM)

label

Connection 1

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 25

label

Flange compression class

value

PN 25

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-10°C - 150°C

label

Medium temperature (continuous) (imperial)

value

14°F - 302°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Lever handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

242001

carbon footprint (A-C) embodied carbon

0.78kgCO2e

data source

TM65

item number

242002

carbon footprint (A-C) embodied carbon

0.8kgCO2e

data source

TM65

item number

242003

carbon footprint (A-C) embodied carbon

1.1kgCO2e

data source

TM65

item number

242004

carbon footprint (A-C) embodied carbon

1.88kgCO2e

data source

TM65

item number

242005

carbon footprint (A-C) embodied carbon

2.76kgCO2e

data source

TM65

item number

242006

carbon footprint (A-C) embodied carbon

4.3kgCO2e

data source

TM65

item number

242007

carbon footprint (A-C) embodied carbon

6.16kgCO2e

data source

TM65

item number

242008

carbon footprint (A-C) embodied carbon

9.83kgCO2e

data source

TM65

item number

242009

carbon footprint (A-C) embodied carbon

16.95kgCO2e

data source

TM65

item number

242010

carbon footprint (A-C) embodied carbon

28.84kgCO2e

data source

TM65

item number

242011

carbon footprint (A-C) embodied carbon

42.37kgCO2e

data source

TM65
