group: PB370DR
potable water
heating
cooling
steam
compressed air
commercial building
industry
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15 (DN15)
dimensions
111x34x54 mm
weight
0.33 kg
packaging
bag (1 pce)
gtin
05022050475268
item number

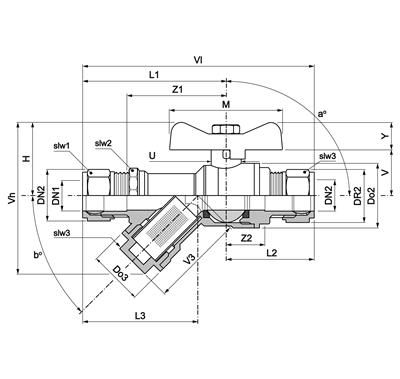

size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
M
H
Y
V
U
a
item number
254250size
15 (DN15)
d1
15.0
DN1
DN15
l1
50
z1
28
slw1
24
d2
15.0
DN2
DN15
l2
55
z2
33
slw2
24
M
50
H
32
Y
16
V
16
U
25
a
90
color
chrome
materials
brass (CW602N (DZR))
finishing
chromed
shape
straight (0º)
connection type
compression
pressure rating (PN)
PN 16
sealing
EPDM, NBR (Nitrile), PTFE
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
HS code
84818081
brand
Pegler
series
Ball Valve
product type
PB370DR
UNSPS
40141607
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
120 °C
peak medium temperature
120 °C
Kvs-value
2.72
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Material quality
value
CuZn36Pb2As (CW602N)
label
Surface protection housing
value
Chromium-plated
label
Material ball seal
value
Polytetrafluoroethylene (PTFE)
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Nominal diameter connection 1
value
DN 15
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Connection 1
value
Compression ring
label
With coupling connection 1
value
No
label
Nominal diameter connection 2
value
DN 15
label
Outer pipe diameter connection 2
value
15mm
label
Outer pipe diameter connection 2 (imperial)
value
0.59"
label
Connection 2
value
Compression ring
label
With coupling connection 2
value
No
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-10°C - 120°C
label
Medium temperature (continuous) (imperial)
value
14°F - 248°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
T-handle
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Kvs value
value
2.72
label
Length of connection 1
value
50mm
label
Length of connection 1 (imperial)
value
1.97"
label
Working length connection 1
value
28mm
label
Working length connection 1 (imperial)
value
1.1"
label
Length of connection 2
value
55mm
label
Length of connection 2 (imperial)
value
2.17"
label
Working length connection 2
value
33mm
label
Working length connection 2 (imperial)
value
1.3"
label
Handle height
value
16mm
label
Handle height (imperial)
value
0.63"
label
Angle of the valve
value
0°
label
Wrench width union nut
value
24mm
label
Wrench width union nut (imperial)
value
0.94"
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
