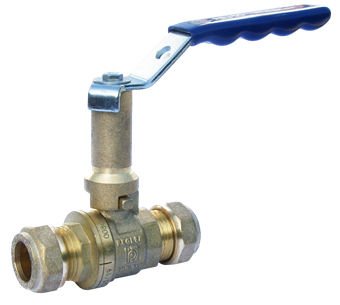

Pegler Ball Valve With Extended Stem (2 X Compression)

group: PB350EL

The PB350 DZR extended lever ball valve is a compact, easy to operate, quarter turn ball valve with 2 compression ends and a blue handle.
  • PN16
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • Extended lever handle
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    steam

    steam

    compressed air

    compressed air

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    WRAS

    WRAS

    item number

    size

    DN1

    l1

    z1

    slw1

    DN2

    l2

    z2

    slw2

    M1

    M2

    E

    H

    h2

    Y

    V

    U

    a

    item number

    254243

    size

    15 (DN15)

    DN1

    1/2" (DN15)

    l1

    38

    z1

    26

    slw1

    24

    DN2

    1/2" (DN15)

    l2

    38

    z2

    26

    slw2

    24

    M1

    10

    M2

    96

    E

    24

    H

    81

    h2

    14

    Y

    16

    V

    23

    U

    14

    a

    90

    item number

    254244

    size

    22 (DN20)

    DN1

    3/4" (DN20)

    l1

    43

    z1

    27

    slw1

    32

    DN2

    3/4" (DN20)

    l2

    43

    z2

    27

    slw2

    32

    M1

    10

    M2

    96

    E

    24

    H

    102

    h2

    15

    Y

    16

    V

    23

    U

    18

    a

    90

    item number

    254245

    size

    28 (DN25)

    DN1

    1" (DN25)

    l1

    49

    z1

    31

    slw1

    38

    DN2

    1" (DN25)

    l2

    49

    z2

    31

    slw2

    38

    M1

    11

    M2

    101

    E

    25

    H

    107

    h2

    17

    Y

    20

    V

    35

    U

    18

    a

    90

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW602N (DZR))

    finishing

    none

    shape

    straight (0º)

    connection type

    compression

    pressure rating (PN)

    PN 16

    sealing

    FPM, PTFE

    general

    product group

    valves (ball valves)

    ETIM class

    EC011343 Ball valve

    HS code

    84818081

    brand

    Pegler

    series

    Ball Valve

    product type

    PB350EL

    UNSPS

    40141607

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    120 °C

    peak medium temperature

    30 °C

    Kv-value

    value depends on the item view items

    image for PB350EL

    image | png

    PB350EL

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    WRAS Certificate 1904014_PB Ball Valves

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn36Pb2As (CW602N)

    label

    Surface protection housing

    value

    None

    label

    Material ball seal

    value

    Polytetrafluoroethylene (PTFE)

    label

    Material ball

    value

    Brass

    label

    Material spindle

    value

    Brass

    label

    Material primary spindle seal

    value

    Fluorelastomer rubber (FPM/FKM)

    label

    Connection 1

    value

    Compression ring

    label

    With coupling connection 1

    value

    No

    label

    Connection 2

    value

    Compression ring

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 16

    label

    Flange compression class

    value

    PN 16

    label

    With drain valve

    value

    No

    label

    With drain possibility (connection)

    value

    No

    label

    With non-return valve

    value

    No

    label

    With filter

    value

    No

    label

    With thermometer

    value

    No

    label

    Model

    value

    Straight

    label

    With insulation shell

    value

    No

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    -10°C - 120°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 248°F

    label

    Medically clean

    value

    No

    label

    Grease-free

    value

    No

    label

    Housing construction

    value

    1-part

    label

    Full bore

    value

    Yes

    label

    Angle of the valve

    value

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No
