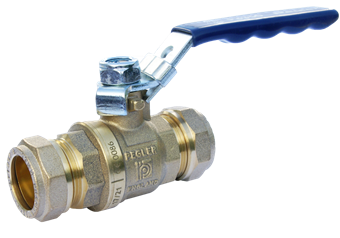

Pegler ball valve (2 x Compression)

group: PB350

The PB350 DZR lever ball valve is a compact, easy to operate, quarter turn ball valve with 2 compression ends and a blue handle.
  • PN16
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • Lever handle
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    cooling

    cooling

    steam

    steam

    compressed air

    compressed air

    segments

    commercial building

    commercial building

    industry

    industry

    approvals

    WRAS

    WRAS

    item number

    size

    DN1

    l1

    z1

    slw1

    DN2

    l2

    z2

    slw2

    M1

    M2

    E

    H

    h2

    Y

    V

    U

    a

    item number

    254201

    size

    15 (DN15)

    DN1

    1/2" (DN15)

    l1

    38

    z1

    26

    slw1

    24

    DN2

    1/2" (DN15)

    l2

    38

    z2

    26

    slw2

    24

    M1

    10

    M2

    96

    E

    24

    H

    39

    h2

    14

    Y

    16

    V

    23

    U

    14

    a

    90

    item number

    254202

    size

    22 (DN20)

    DN1

    3/4" (DN20)

    l1

    43

    z1

    27

    slw1

    32

    DN2

    3/4" (DN20)

    l2

    43

    z2

    27

    slw2

    32

    M1

    10

    M2

    96

    E

    24

    H

    50

    h2

    15

    Y

    16

    V

    23

    U

    18

    a

    90

    item number

    254203

    size

    28 (DN25)

    DN1

    1" (DN25)

    l1

    49

    z1

    31

    slw1

    38

    DN2

    1" (DN25)

    l2

    49

    z2

    31

    slw2

    38

    M1

    11

    M2

    101

    E

    25

    H

    55

    h2

    17

    Y

    20

    V

    35

    U

    18

    a

    90

    item number

    254204

    size

    35 (DN32)

    DN1

    1 1/4" (DN32)

    l1

    60

    z1

    41

    slw1

    46

    DN2

    1 1/4" (DN32)

    l2

    60

    z2

    41

    slw2

    46

    M1

    11

    M2

    103

    E

    25

    H

    62

    h2

    20

    Y

    23

    V

    39

    U

    18

    a

    90

    item number

    254205

    size

    42 (DN40)

    DN1

    1 1/2" (DN40)

    l1

    66

    z1

    46

    slw1

    56

    DN2

    1 1/2" (DN40)

    l2

    66

    z2

    46

    slw2

    56

    M1

    12

    M2

    159

    E

    26

    H

    78

    h2

    24

    Y

    27

    V

    51

    U

    24

    a

    90

    item number

    254206

    size

    54 (DN50)

    DN1

    2" (DN50)

    l1

    80

    z1

    56

    slw1

    72

    DN2

    2" (DN50)

    l2

    80

    z2

    56

    slw2

    72

    M1

    13

    M2

    158

    E

    26

    H

    84

    h2

    26

    Y

    29

    V

    55

    U

    24

    a

    90

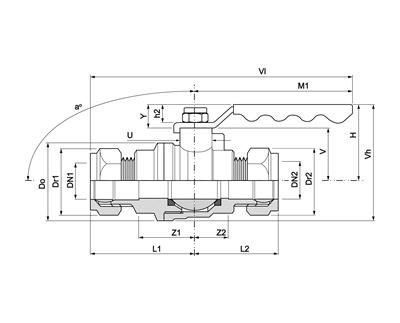

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW602N (DZR))

    finishing

    none

    shape

    straight (0º)

    connection type

    compression

    pressure rating (PN)

    PN 16

    sealing

    FPM, PTFE

    general

    product group

    valves (ball valves)

    ETIM class

    EC011343 Ball valve

    HS code

    84818081

    brand

    Pegler

    series

    Ball Valve

    product type

    PB350

    UNSPS

    40141607

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    120 °C

    peak medium temperature

    30 °C

    Kv-value

    value depends on the item view items

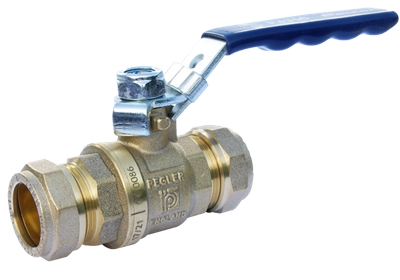

    image for PB350DR

    image | png

    PB350DR

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    WRAS Certificate 1904014_PB Ball Valves

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn36Pb2As (CW602N)

    label
