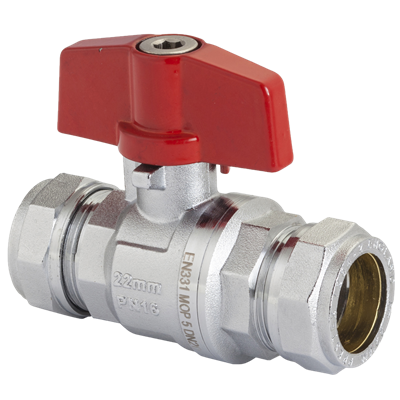

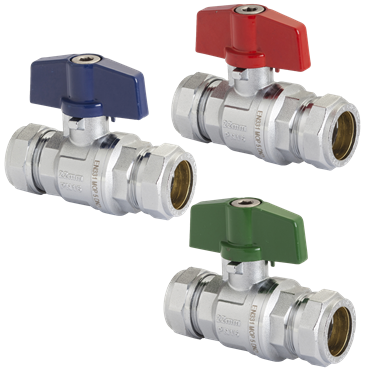

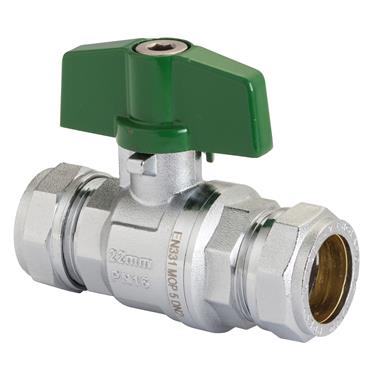

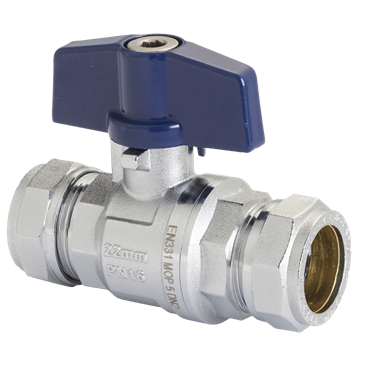

Pegler Ball Valve with T handle (2 x compression)

group: PB300T

The PB300T valve is a compact, easy to operate, quarter turn ball valves in the Pegler range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids or gases in pipe lines.
  • PN16
  • full bore
  • blow-out and vandalproof assembly
  • PTFE ball seals
  • T handle
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

BSI Kitemark

BSI Kitemark

WRAS

WRAS

item number

size

DN1

l1

z1

slw1

DN2

l2

z2

slw2

M1

M2

H

Y

V

U

a

item number

45013

size

15 (DN15) Cr green

DN1

1/2" (DN15)

l1

38

z1

26

slw1

24

DN2

1/2" (DN15)

l2

38

z2

26

slw2

24

M1

25

M2

25

H

39

Y

22

V

23

U

14

a

90

item number

255011

size

15 (DN15) Cr blue

DN1

1/2" (DN15)

l1

38

z1

26

slw1

24

DN2

1/2" (DN15)

l2

38

z2

26

slw2

24

M1

25

M2

25

H

39

Y

22

V

23

U

14

a

90

item number

255012

size

22 (DN20) Cr blue

DN1

3/4" (DN20)

l1

43

z1

27

slw1

32

DN2

3/4" (DN20)

l2

43

z2

27

slw2

32

M1

30

M2

30

H

50

Y

25

V

23

U

18

a

90

item number

255003

size

28 (DN25) Cr red

DN1

1" (DN25)

l1

49

z1

31

slw1

38

DN2

1" (DN25)

l2

49

z2

31

slw2

38

M1

30

M2

30

H

55

Y

28

V

35

U

18

a

90

item number

255001

size

15 (DN15) Cr red

DN1

1/2" (DN15)

l1

38

z1

26

slw1

24

DN2

1/2" (DN15)

l2

38

z2

26

slw2

24

M1

25

M2

25

H

39

Y

22

V

23

U

14

a

90

item number

255002

size

22 (DN20) Cr red

DN1

3/4" (DN20)

l1

43

z1

27

slw1

32

DN2

3/4" (DN20)

l2

43

z2

27

slw2

32

M1

30

M2

30

H

50

Y

25

V

23

U

18

a

90

item number

255013

size

28 (DN25) Cr blue

DN1

1" (DN25)

l1

49

z1

31

slw1

38

DN2

1" (DN25)

l2

49

z2

31

slw2

38

M1

30

M2

30

H

55

Y

28

V

35

U

18

a

90

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

straight (0º)

connection type

compression

pressure rating (PN)

PN 16

sealing

FPM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

series

Prestex Ball Valve

product type

PB300T

UNSPS

40141607

technical

max operating pressure liquid

16 bar

min. medium temperature

-10 °C

max medium temperature

110 °C

peak medium temperature

110 °C

Kvs-value

value depends on the item view items
