Pegler Circulator Pump Isolation Ball Valve

group: PB300P

The PB300P circular pump isolating ball valve is a compact, easy to operate, quarter turn ball valve with a compression end and a female flat seal threaded connection which needs a key too be operated.
  • PN16
  • full bore
  • blow-out and vandal proof assembly
  • PTFE ball seals
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    steam

    steam

    compressed air

    compressed air

    segments

    commercial building

    commercial building

    industry

    industry

    shipbuilding

    shipbuilding

    approvals

    WRAS

    WRAS

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    553002

    size

    22xG1 1/2

    dimensions

    65x35x50 mm

    weight

    0.35 kg

    packaging

    box (10 pce)

    gtin

    05013866037443

    item number

    553003

    size

    28xG1 1/2

    dimensions

    60x40x55 mm

    weight

    0.39 kg

    packaging

    box (10 pce)

    gtin

    05013866037436

    item number

    size

    d1

    l1

    z1

    slw1

    DN2

    l2

    z2

    slw2

    H

    V

    U

    a

    item number

    553002

    size

    22xG1 1/2

    d1

    22.0

    l1

    31

    z1

    22

    slw1

    32

    DN2

    1 1/2" (DN40)

    l2

    38

    z2

    15

    slw2

    50

    H

    31

    V

    23

    U

    14

    a

    90

    item number

    553003

    size

    28xG1 1/2

    d1

    28.0

    l1

    31

    z1

    22

    slw1

    40

    DN2

    1 1/2" (DN40)

    l2

    38

    z2

    15

    slw2

    30

    H

    31

    V

    23

    U

    14

    a

    90

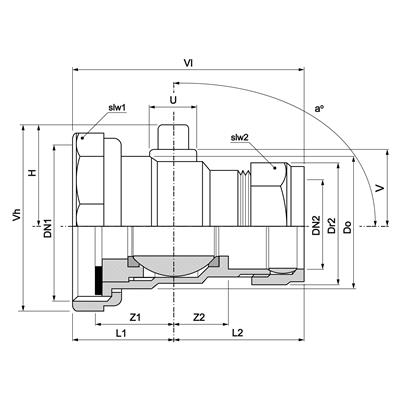

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW617N)

    finishing

    none

    shape

    straight (0º)

    connection type

    compression, G - female thread gas cylindrical (BSPP)

    pressure rating (PN)

    PN 16

    sealing

    EPDM, PTFE

    general

    product group

    valves (ball valves)

    ETIM class

    EC011343 Ball valve

    HS code

    84818099

    brand

    Pegler

    series

    Prestex Ball Valve

    product type

    PB300P

    UNSPS

    40141607

    technical

    max operating pressure liquid

    16 bar

    min. medium temperature

    -10 °C

    max medium temperature

    110 °C

    peak medium temperature

    110 °C

    Kvs-value

    value depends on the item view items

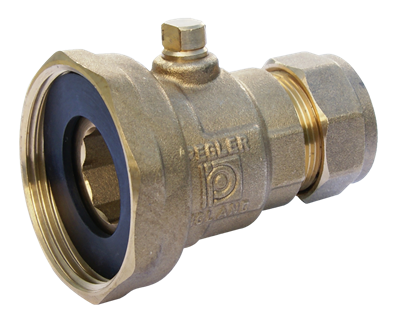

    image for PB300P

    image | png

    PB300P

    image for Diagram

    diagram | jpg

    Diagram

    certifications | pdf

    NSF_REG4_valves_PB300

    label

    value

    label

    ETIM class

    label

    Housing material

    value

    Brass

    label

    Material quality

    value

    CuZn40Pb2 (CW617N)

    label

    Surface protection housing

    value

    None

    label

    Material ball seal

    value

    Polytetrafluoroethylene (PTFE)

    label

    Material ball

    value

    Brass

    label

    Material spindle

    value

    Brass

    label

    Material primary spindle seal

    value

    Ethylene-propylene diene monomer rubber (EPDM)

    label

    Connection 1

    value

    Compression ring

    label

    With coupling connection 1

    value

    No

    label

    Nominal diameter connection 2

    value

    1 1/2 inch (40)

    label

    Connection 2

    value

    Internal thread cylindrical BSPP-G (ISO 228-1)

    label

    With coupling connection 2

    value

    No

    label

    Article compression class

    value

    PN 16

    label

    Flange compression class

    value

    PN 16

    label

    With drain valve

    value

    No

    label

    With drain possibility (connection)

    value

    No

    label

    With non-return valve

    value

    No

    label

    With filter

    value

    No

    label

    With thermometer

    value

    No

    label

    Model

    value

    Straight

    label

    With insulation shell

    value

    No

    label

    FM quality mark

    value

    No

    label

    UL quality mark

    value

    No

    label

    ULC quality mark

    value

    No

    label

    LPCB quality mark

    value

    No

    label

    Medium temperature (continuous)

    value

    -10°C - 110°C

    label

    Medium temperature (continuous) (imperial)

    value

    14°F - 230°F

    label

    Medically clean

    value

    No

    label

    Grease-free

    value

    No

    label

    Housing construction

    value

    1-part

    label

    Full bore

    value

    Yes

    label

    Length of connection 1

    value

    31mm

    label

    Length of connection 1 (imperial)

    value

    1.22"

    label

    Working length connection 1

    value

    22mm

    label

    Working length connection 1 (imperial)

    value

    0.87"

    label

    Length of connection 2

    value

    38mm

    label

    Length of connection 2 (imperial)

    value

    1.5"

    label

    Working length connection 2

    value

    15mm

    label

    Working length connection 2 (imperial)

    value

    0.59"

    label

    Angle of the valve

    value

    label

    VdS quality mark

    value

    No

    label

    DVGW quality mark for gas

    value

    No

    label

    DVGW quality mark for water

    value

    No

    label

    KIWA certified

    value

    No

    item number

    carbon footprint (A-C) embodied carbon

    data source

    item number

    553002

    carbon footprint (A-C) embodied carbon

    1.52kgCO2e

    data source

    TM65

    item number

    553003

    carbon footprint (A-C) embodied carbon

    1.73kgCO2e

    data source

    TM65
