group: PB300 GAS
natural gas
potable water
heating
compressed air
steam
hydrogen (H2)
industry
shipbuilding
commercial building
WRAS
BSI Kitemark
code
size
dimensions
weight
packaging
gtin
code
size
15 (DN15) Cr yellow
dimensions
25x60x130 mm
weight
0.26 kg
packaging
box (10 pce)
gtin
05013866028694
code
size
22 (DN20) Cr yellow
dimensions
50x65x145 mm
weight
0.44 kg
packaging
box (10 pce)
gtin
05013866028700
code
size
28 (DN25) Cr yellow
dimensions
40x80x150 mm
weight
0.59 kg
packaging
box (5 pce)
gtin
05013866028717
code
size
DN1
l1
z1
slw1
DN2
l2
z2
slw2
M1
M2
H
h2
Y
V
U
a
code
size
15 (DN15) Cr yellow
DN1
1/2" (DN15)
l1
38
z1
26
slw1
24
DN2
1/2" (DN15)
l2
38
z2
26
slw2
24
M1
10
M2
96
H
39
h2
14
Y
16
V
23
U
14
a
90
code
size
22 (DN20) Cr yellow
DN1
3/4" (DN20)
l1
43
z1
27
slw1
32
DN2
3/4" (DN20)
l2
43
z2
27
slw2
32
M1
10
M2
96
H
50
h2
15
Y
16
V
23
U
18
a
90
code
size
28 (DN25) Cr yellow
DN1
1" (DN25)
l1
49
z1
31
slw1
38
DN2
1" (DN25)
l2
49
z2
31
slw2
38
M1
11
M2
101
H
55
h2
17
Y
20
V
35
U
18
a
90
item

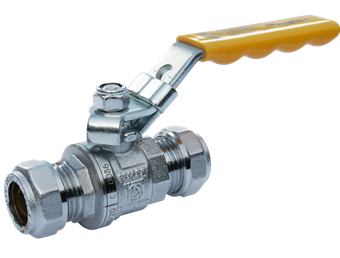

Pegler Ball Valve (2 x compression)
item number with gtin
PB300 GAS
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.59 kg
dimensions
40x80x150 mm
color
chrome
materials
brass (CW617N)
finishing
chromed
shape
straight
connection type
compression
pressure rating (PN)
PN 16
sealing
PTFE, FPM
max operating pressure liquid
16 bar
min. medium temperature
-10 °C
max medium temperature
110 °C
peak medium temperature
110 °C
product group
afsluiters (ball valves)
ETIM class
EC011343 Ball valveHS code
84818081
brand
Pegler
series
Prestex Ball Valve
product type
PB300
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Housing material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
label
Surface protection housing
value
Chromium-plated
label
Material ball seal
value
Polytetrafluoroethylene (PTFE)
label
Material ball
value
Brass
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Fluorelastomer rubber (FPM/FKM)
label
Connection 1
value
Compression ring
label
With coupling connection 1
value
Yes
label
Connection 2
value
Compression ring
label
With coupling connection 2
value
Yes
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-10°C - 110°C
label
Medium temperature (continuous) (imperial)
value
14°F - 230°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Angle of the valve
value
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
