Brass Automatic Air Vent

group: P775

The Pegler type P775 is a brass automatic air vent which is designed to release the excess pressure in a system automatically and safety. It has a ½” threaded connection and comes with WRAS approval.
  • WRAS approved
  • Operating Pressure up to 10 Bar
  • Operating Temperature -10°C to 110°C
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    potable water

    potable water

    heating

    heating

    non-potable water

    non-potable water

    segments

    commercial building

    commercial building

    approvals

    no approvals available

    item number

    size

    dimensions

    weight

    packaging

    gtin

    item number

    538009

    size

    G1/2"

    dimensions

    90x50x50 mm

    weight

    0.24 kg

    packaging

    box (1 pce)

    gtin

    05022050220561

    item number

    size

    d1

    DN1

    l1

    slw1

    item number

    538009

    size

    G1/2"

    d1

    28.0

    DN1

    1/2" (DN15)

    l1

    22

    slw1

    44

    technical drawing for product

    characteristics

    color

    brass

    materials

    brass (CW617N)

    finishing

    none

    shape

    End coupling (0º)

    connection type

    G - male thread gas cylindrical (BSPP)

    pressure rating (PN)

    PN 10

    sealing

    NBR (Nitrile)

    general

    product group

    safety valves (pressure relief valves)

    HS code

    74182000

    brand

    Pegler

    series

    Pressure Release Valve

    product type

    P775

    UNSPS

    40141606

    technical

    max operating pressure liquid

    10 bar

    min. medium temperature

    10 °C

    max medium temperature

    110 °C

    peak medium temperature

    110 °C

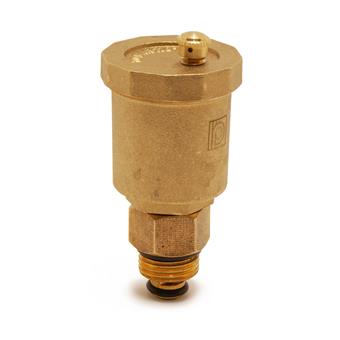

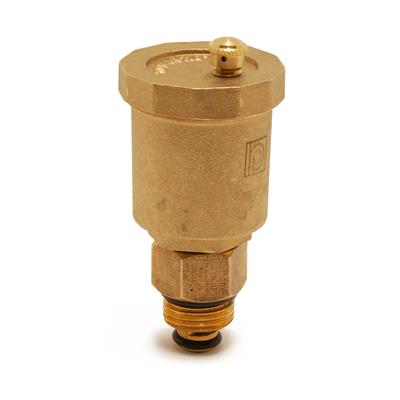

    image for P775_Brass_Automatic_Air_Vent

    image | jpg

    P775_Brass_Automatic_Air_Vent

    image for Diagram

    diagram | jpg

    Diagram
