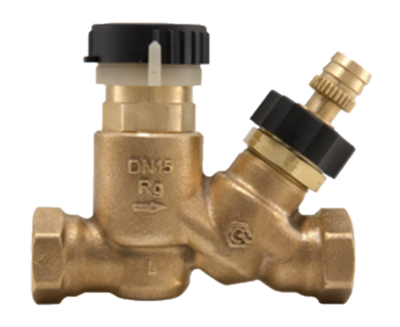

bronze circulation valve. 50°c - 60°c adjustable range

group: P605

The Pegler Proflow P605 thermal circulation valve with female threaded connections is used for the automatic thermal balancing and high temperature disinfection of hot water circulating systems, preventing the growth of bacteria between (22-43°C) the valve is pre-set too approximately 57°C. The valve has an automatic thermal disinfection feature when water above 65°C is circulated through the valve. Available in sizes DN20 and DN25

  • Automatic disinfection control
  • Temperature selection dial
  • Isolation and drain function
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

WRAS

WRAS

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

straight (0º)

connection type

Rp - female thread cylindrical (BSPT), Hose connector

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

valves (thermostatic valves)

brand

Pegler

series

ProFlow Thermal Circulation

product type

P605

UNSPS

40141609
