Endex Endex Reducer (Degreased and wrapped)

group: N6DW

The Endex N6DW is a reducer with two end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Endex degreased provides a suitable application for medical gas lines.

  • Pre degreased
  • Provided with all relevant approvals.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

item number

88250DW

size

15x12

item number

88248DW

size

15x8

item number

88267DW

size

22x15

item number

88284DW

size

28x22

item number

88290DW

size

35x28

item number

88296DW

size

42x22

item number

88297DW

size

42x28

item number

88303DW

size

54x35

item number

88304DW

size

54x42

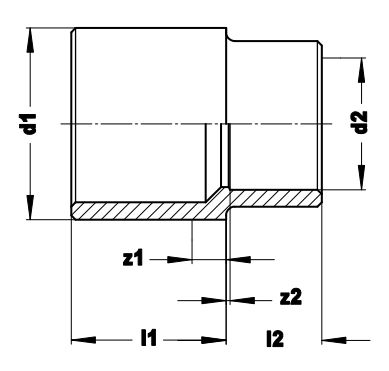

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

straight

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74121000

brand

Pegler

series

Endex Degreased

product type

N6DW

UNSPS

40173613

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

110 °C

image for N6DW

image | jpg

N6DW

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Endex DVGW

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

VSH Endex KIWA

label

value

label

Material connection 1

value

Copper

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-40°C - 65°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 149°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

88250DW

carbon footprint (A-C) embodied carbon

0.05kgCO2e

data source

TM65

item number

88248DW

carbon footprint (A-C) embodied carbon

0.05kgCO2e

data source

TM65

item number

88267DW

carbon footprint (A-C) embodied carbon

0.09kgCO2e

data source

TM65

item number

88284DW

carbon footprint (A-C) embodied carbon

0.16kgCO2e

data source

TM65

item number

88290DW

carbon footprint (A-C) embodied carbon

0.25kgCO2e

data source

TM65

item number

88296DW

carbon footprint (A-C) embodied carbon

0.43kgCO2e

data source

TM65

item number

88297DW

carbon footprint (A-C) embodied carbon

0.43kgCO2e

data source

TM65

item number

88303DW

carbon footprint (A-C) embodied carbon

0.67kgCO2e

data source

TM65

item number

88304DW

carbon footprint (A-C) embodied carbon

0.62kgCO2e

data source

TM65
