group: N69DW

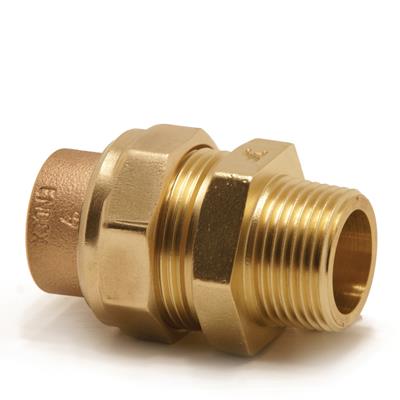

The Endex N69DW is a straight male union connector with a end feed and a male threaded end. By using Endex in your piping installation you are using a simple and cost-effective method. Endex degreased provides a suitable application for medical gas lines.
compressed air
heating
cooling
potable water
natural gas
industry
commercial building
DVGW Wasser
KIWA
WRAS
code
size
dimensions
weight
packaging
gtin
code
size
15xR1/2"
dimensions
35x35x60 mm
weight
0.15 kg
packaging
bag (1 pce)
gtin
05022050892362
code
size
28xR1"
dimensions
34x45x75 mm
weight
0.36 kg
packaging
bag (1 pce)
gtin
05022050892461
item
Endex Straight Union (Degreased and wrapped)
item number with gtin
N69DW
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
weight
0.36 kg
dimensions
34x45x75 mm
color
brass
materials
brass (CW617N)
finishing
none
shape
straight
connection type
solder, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 16
sealing
Metal sealing
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
65 °C
peak medium temperature
110 °C
product group
fittingen (demountable)
ETIM class
EC003024 Fitting with 2 connectionsbrand
Pegler
series
Endex Degreased
product type
N69DW
UNSPS
40172500
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Metal-sealing
label
With buffer stud
value
No
label
Medium temperature (continuous)
value
-40°C - 65°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 149°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
