Endex Stop End (Degreased and wrapped)

group: N61DW

The Endex N61DW is a stop end with a end feed end. By using Endex in your piping installation you are using a simple and cost-effective method. Endex degreased provides a suitable application for medical gas lines.

  • Pre degreased
  • Provided with all relevant approvals.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

89080dw

size

15

dimensions

18x18x18 mm

weight

0.01 kg

packaging

bag (1 pce)

gtin

05022050890818

item number

89084dw

size

22

dimensions

19x25x25 mm

weight

0.02 kg

packaging

bag (1 pce)

gtin

05022050890863

item number

89085dw

size

28

dimensions

21x31x31 mm

weight

0.03 kg

packaging

bag (1 pce)

gtin

05022050890948

item number

size

item number

89080dw

size

15

item number

89084dw

size

22

item number

89085dw

size

28

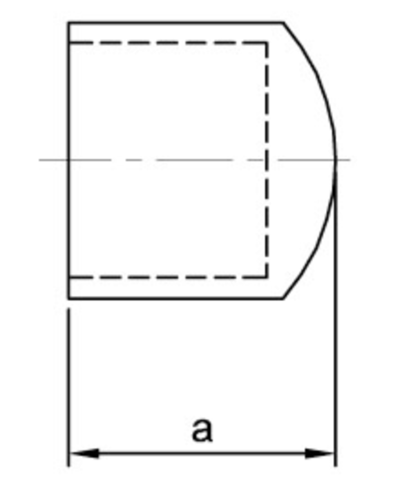

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

End coupling

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003023 Fitting with 1 connection

HS code

74121000

brand

Pegler

series

Endex Degreased

product type

N61DW

UNSPS

40172412

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

110 °C

image for N61DW

image | jpg

N61DW

image for Diagram

diagram | png

Diagram

certifications | pdf

Endex DVGW

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

VSH Endex KIWA

label

value

label

Material connection 1

value

Copper

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Material sealing

value

Metal-sealing

label

Main colour fitting

value

Copper

label

Medium temperature (continuous)

value

-40°C - 65°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 149°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

89080dw

carbon footprint (A-C) embodied carbon

0.04kgCO2e

data source

TM65

item number

89084dw

carbon footprint (A-C) embodied carbon

0.08kgCO2e

data source

TM65

item number

89085dw

carbon footprint (A-C) embodied carbon

0.12kgCO2e

data source

TM65
