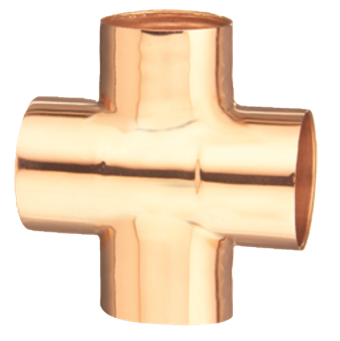

Endex Cross

group: N50

The Endex N50 is a cross with four end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.

  • Compact neat joints
  • Clear identification on fittings dimensions
  • Suitable for a range of applications
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CSN

CSN

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

EMI

EMI

KIWA

KIWA

WRAS

WRAS

item number

size

d1

l1

z1

d2

l2

z2

d3

l3

z3

d4

l4

z4

item number

89050

size

15

d1

15.0

l1

24

z1

13

d2

15.0

l2

24

z2

13

d3

15.0

l3

24

z3

13

d4

15.0

l4

24

z4

13

item number

89052

size

22

d1

22.0

l1

32

z1

17

d2

22.0

l2

32

z2

17

d3

22.0

l3

32

z3

17

d4

22.0

l4

32

z4

17

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

shape

Cross

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003026 Fitting with 4 connections

HS code

74121000

brand

Pegler

series

Endex

product type

N50

UNSPS

40172712

label

value

label

Material

value

Copper

label

Surface protection

value

Untreated

label

Surface treatment

value

Untreated

label

Model

value

Cross piece 90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Flange compression class

value

PN 16

label

Material sealing

value

Metal-sealing

label

Main colour fitting

value

Copper

label

Medium temperature (continuous)

value

-40°C - 65°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 149°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
