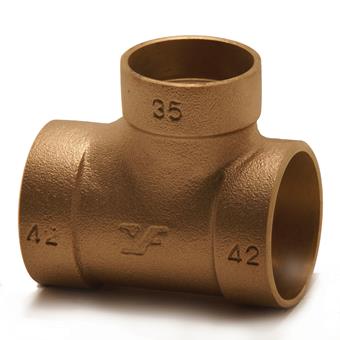

Endex Pitcher Tee Reduced

group: N359R

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

item number

89773

size

42x42x35

item number

89774

size

54x54x35

item number

89775

size

54x54x42

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

T-piece

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

HS code

74121000

brand

Pegler

series

Endex Waste

product type

N359R

UNSPS

40174612

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

110 °C

image for N359R

image | jpg

N359R

image for Diagram

diagram | jpg

Diagram

certifications | pdf

Endex DVGW

certifications | pdf

VSH Endex KIWA

label

value

label

Material connection 1

value

Bronze

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Bronze

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Bronze

label

Model

value

T-piece

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Flange compression class

value

PN 16

label

Material sealing

value

Metal-sealing

label

Main colour fitting

value

Brass

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-40°C - 65°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 149°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
