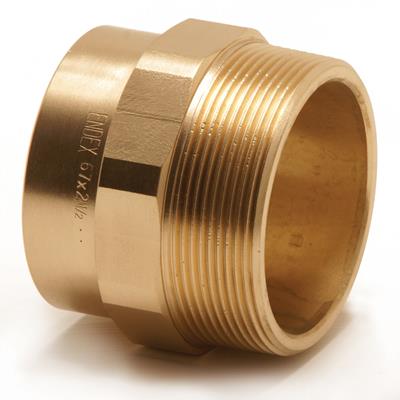

Endex Straight Connector

group: N3

The Endex N3 is a straight male connector with a end feed and male thread end. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.

  • Compact neat joints
  • Clear identification on fittings dimensions
  • Suitable for a range of applications
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CSN

CSN

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

88175

size

15xR1/2"

dimensions

23x23x25 mm

weight

0.03 kg

packaging

bag (10 pce)

gtin

05022050055804

item number

88176

size

15xR3/4"

dimensions

18x25x28 mm

weight

0.04 kg

packaging

bag (10 pce)

gtin

05022050055828

item number

88174

size

15xR3/8"

dimensions

16x19x25 mm

weight

0.02 kg

packaging

bag (10 pce)

gtin

05022050055798

item number

84686d

size

18xR1/2"

dimensions

21x22x29 mm

weight

0.03 kg

packaging

bag (10 pce)

gtin

05022050502346

item number

84687d

size

18xR3/4"

dimensions

22x26x29 mm

weight

0.04 kg

packaging

bag (10 pce)

gtin

05022050846891

item number

88186

size

22xR1"

dimensions

25x33x34 mm

weight

0.07 kg

packaging

bag (10 pce)

gtin

05022050055934

item number

88184

size

22xR1/2"

dimensions

21x25x32 mm

weight

0.04 kg

packaging

bag (10 pce)

gtin

05022050055859

item number

88185

size

22xR3/4"

dimensions

35x35x35 mm

weight

0.04 kg

packaging

bag (10 pce)

gtin

05022050055910

item number

88189

size

28xR1"

dimensions

35x35x38 mm

weight

0.08 kg

packaging

bag (10 pce)

gtin

05022050056016

item number

88188

size

28xR3/4"

dimensions

25x31x37 mm

weight

0.06 kg

packaging

bag (10 pce)

gtin

05022050055972

item number

88192

size

35xR1 1/4"

dimensions

48x55x55 mm

weight

0.12 kg

packaging

bag (1 pce)

gtin

05022050881922

item number

88195

size

42xR1 1/2"

dimensions

50x55x55 mm

weight

0.16 kg

packaging

bag (1 pce)

gtin

05022050881953

item number

88198

size

54xR2"

dimensions

60x60x60 mm

weight

0.27 kg

packaging

bag (1 pce)

gtin

05022050881984

item number

89615

size

76xR3"

dimensions

83x86x100 mm

weight

0.95 kg

packaging

bag (1 pce)

gtin

05022050896155

item number

size

item number

88175

size

15xR1/2"

item number

88176

size

15xR3/4"

item number

88174

size

15xR3/8"

item number

84686d

size

18xR1/2"

item number

84687d

size

18xR3/4"

item number

88186

size

22xR1"

item number

88184

size

22xR1/2"

item number

88185

size

22xR3/4"

item number

88189

size

28xR1"

item number

88188

size

28xR3/4"

item number

88192

size

35xR1 1/4"

item number

88195

size

42xR1 1/2"

item number

88198

size

54xR2"

item number

89615

size

76xR3"

technical drawing for product

characteristics

color

copper

materials

brass (CW617N)

finishing

none

shape

straight

connection type

solder, R - male thread gas conical (BSPT)

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

Pegler

series

Endex

product type

N3

UNSPS

40172500

technical

max operating pressure liquid

16 bar

min. medium temperature

value depends on the item view items

max medium temperature

value depends on the item view items

peak medium temperature

value depends on the item view items

image for N3

image | jpg

N3

image for Diagram

diagram | jpg

Diagram

certifications | pdf

CSN Endfeed

certifications | pdf

Endex DVGW

certifications | pdf

Pegler_Endex_Brass_Copper_WRAS

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

VSH Endex KIWA

label

value

label

Material connection 1

value

Bronze

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Bronze

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

88175

carbon footprint (A-C) embodied carbon

0.15kgCO2e

data source

TM65

item number

88176

carbon footprint (A-C) embodied carbon

0.23kgCO2e

data source

TM65

item number

88174

carbon footprint (A-C) embodied carbon

0.12kgCO2e

data source

TM65

item number

84686d

carbon footprint (A-C) embodied carbon

0.17kgCO2e

data source

TM65

item number

84687d

carbon footprint (A-C) embodied carbon

0.21kgCO2e

data source

TM65

item number

88186

carbon footprint (A-C) embodied carbon

0.39kgCO2e

data source

TM65

item number

88184

carbon footprint (A-C) embodied carbon

0.2kgCO2e

data source

TM65

item number

88185

carbon footprint (A-C) embodied carbon

0.24kgCO2e

data source

TM65

item number

88189

carbon footprint (A-C) embodied carbon

0.41kgCO2e

data source

TM65

item number

88188

carbon footprint (A-C) embodied carbon

0.33kgCO2e

data source

TM65

item number

88192

carbon footprint (A-C) embodied carbon

0.66kgCO2e

data source

TM65

item number

88195

carbon footprint (A-C) embodied carbon

0.86kgCO2e

data source

TM65

item number

88198

carbon footprint (A-C) embodied carbon

1.46kgCO2e

data source

TM65

item number

89615

carbon footprint (A-C) embodied carbon

5.26kgCO2e

data source

TM65
