group: N29

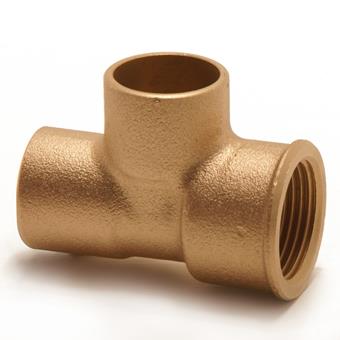

The Endex N29 is a female T-piece with two end feed and a female thread connection. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.
potable water
natural gas
heating
cooling
compressed air
commercial building
industry
CSN
DVGW Gas
DVGW Wasser
KIWA
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15xG1/2x15"
dimensions
28x35x45 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
05022050059741
item number
size
item number
89005size
15xG1/2x15"
color
brass
materials
brass (CW617N)
finishing
none
shape
T-piece (90º)
connection type
solder, Rc - female thread gas conical (BSPT)
sealing
Metal sealing
product group
fittings (demountable)
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
Pegler
series
Endex
product type
N29R
UNSPS
40174612
max operating pressure liquid
16 bar
min. medium temperature
-40 °C
max medium temperature
65 °C
peak medium temperature
110 °C
label
value
label
ETIM class
label
Material connection 1
value
Bronze
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Bronze
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
Yes
label
Connection 1
value
Soldered sleeve
label
Connection 2
value
Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
label
Flange compression class
value
PN 16
label
Material sealing
value
Metal-sealing
label
Main colour fitting
value
Brass
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-40°C - 65°C
label
Medium temperature (continuous) (imperial)
value
-40°F - 149°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
Yes
label
DVGW quality mark for water
value
Yes
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
