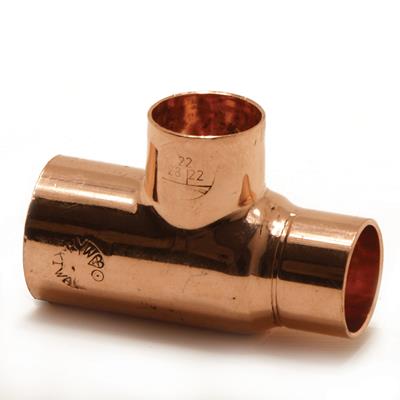

Endex Tee One End and Branch Reduced

group: N27

The Endex N27 is a reduced T-piece with three end feed ends. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.

  • Compact neat joints
  • Clear identification on fittings dimensions
  • Suitable for a range of applications
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

BSI Kitemark

BSI Kitemark

CSN

CSN

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

d1

l1

z1

d2

l2

z2

d3

l3

z3

item number

89953

size

15x12x12

d1

15.0

l1

18

z1

7

d2

12.0

l2

18

z2

9

d3

12.0

l3

19

z3

10

item number

85511D

size

18x12x12

d1

18.0

l1

20

z1

7

d2

12.0

l2

19

z2

10

d3

12.0

l3

21

z3

12

item number

85417D

size

18x15x15

d1

18.0

l1

22

z1

9

d2

15.0

l2

22

z2

11

d3

15.0

l3

23

z3

12

item number

88910

size

22x15x15

d1

22.0

l1

24

z1

9

d2

15.0

l2

23

z2

12

d3

15.0

l3

26

z3

15

item number

85541D

size

22x18x15

d1

22.0

l1

24

z1

9

d2

15.0

l2

23

z2

12

d3

18.0

l3

26

z3

13

item number

85547D

size

22x18x18

d1

22.0

l1

26

z1

10

d2

18.0

l2

25

z2

12

d3

18.0

l3

28

z3

15

item number

88925

size

28x15x15

d1

28.0

l1

28

z1

9

d2

15.0

l2

27

z2

16

d3

15.0

l3

32

z3

21

item number

88926

size

28x15x22

d1

28.0

l1

31

z1

13

d2

22.0

l2

32

z2

16

d3

15.0

l3

31

z3

20

item number

88935

size

28x22x15

d1

28.0

l1

28

z1

9

d2

15.0

l2

27

z2

16

d3

22.0

l3

32

z3

16

item number

88940

size

28x22x22

d1

28.0

l1

31

z1

13

d2

22.0

l2

31

z2

16

d3

22.0

l3

34

z3

19

item number

88942

size

35x22x22

d1

35.0

l1

36

z1

13

d2

22.0

l2

35

z2

20

d3

22.0

l3

37

z3

22

item number

88947

size

35x28x22

d1

35.0

l1

36

z1

13

d2

22.0

l2

35

z2

20

d3

28.0

l3

38

z3

20

item number

88948

size

35x28x28

d1

35.0

l1

39

z1

16

d2

28.0

l2

38

z2

20

d3

28.0

l3

41

z3

23

item number

88950

size

42x28x28

d1

42.0

l1

43

z1

16

d2

28.0

l2

42

z2

23

d3

28.0

l3

44

z3

26

item number

88952

size

42x35x28

d1

42.0

l1

43

z1

16

d2

28.0

l2

42

z2

23

d3

35.0

l3

47

z3

24

item number

88957

size

42x35x35

d1

42.0

l1

47

z1

20

d2

35.0

l2

46

z2

23

d3

35.0

l3

50

z3

27

item number

88958

size

54x42x42

d1

54.0

l1

55

z1

23

d2

42.0

l2

57

z2

30

d3

42.0

l3

61

z3

34

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

T-piece

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

HS code

74121000

brand

Pegler

series

Endex

product type

N27

UNSPS

40174612

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

110 °C

image for N27

image | jpg

N27

image for Diagram

diagram | jpg

Diagram

certifications | pdf

CSN Endfeed

certifications | pdf

Endex DVGW

certifications | pdf

Pegler_Endex_Brass_Copper_WRAS

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

VSH Endex KIWA

item number

carbon footprint (A-C) embodied carbon

data source

item number

89953
