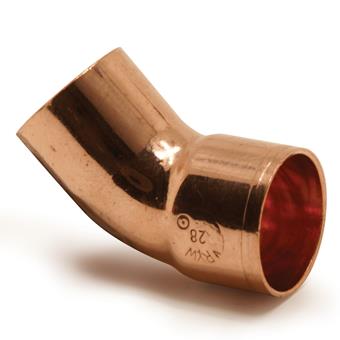

Endex Street Bend 45°

group: N21S

The Endex N21S is a 45 ° street elbow with a end feed and tube end. By using Endex in your piping installation you are using a simple and cost-effective method. Endex provides universal piping systems suitable for both domestic and light commercial applications.

  • Compact neat joints
  • Clear identification on fittings dimensions
  • Suitable for a range of applications
  • Provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CSN

CSN

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

88671

size

35xØ35

dimensions

35x38x85 mm

weight

0.1 kg

packaging

bag (1 pce)

gtin

05022050886712

item number

88673

size

42xØ42

dimensions

42x45x90 mm

weight

0.14 kg

packaging

bag (1 pce)

gtin

05022050886736

item number

88674

size

54xØ54

dimensions

53x57x120 mm

weight

0.23 kg

packaging

bag (1 pce)

gtin

05022050886743

item number

size

d1

l1

z1

d2

l2

z2

item number

88671

size

35xØ35

d1

35.0

l1

33

z1

10

d2

35.0

l2

35

z2

10

item number

88673

size

42xØ42

d1

42.0

l1

38

z1

11

d2

42.0

l2

40

z2

11

item number

88674

size

54xØ54

d1

54.0

l1

46

z1

14

d2

54.0

l2

48

z2

14

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

Elbow

connection type

solder

sealing

Metal sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74121000

brand

Pegler

series

Endex

product type

N21S

UNSPS

40172103

technical

max operating pressure liquid

16 bar

min. medium temperature

-40 °C

max medium temperature

65 °C

peak medium temperature

110 °C

image for N21S

image | jpg

N21S

image for Diagram

diagram | png

Diagram

certifications | pdf

CSN Endfeed

certifications | pdf

Endex DVGW

certifications | pdf

Pegler_Endex_Brass_Copper_WRAS

certifications | pdf

Pegler_Endex_NSF_REG4

certifications | pdf

VSH Endex Gastec

certifications | pdf

VSH Endex KIWA

label

value

label

Material connection 1

value

Copper

label

Material quality connection 1

value

Cu-DHP (CW024A)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-40°C - 65°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 149°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

88671

carbon footprint (A-C) embodied carbon

0.47kgCO2e

data source

TM65

item number

88673

carbon footprint (A-C) embodied carbon

0.62kgCO2e

data source

TM65

item number

88674

carbon footprint (A-C) embodied carbon

1.05kgCO2e

data source

TM65
